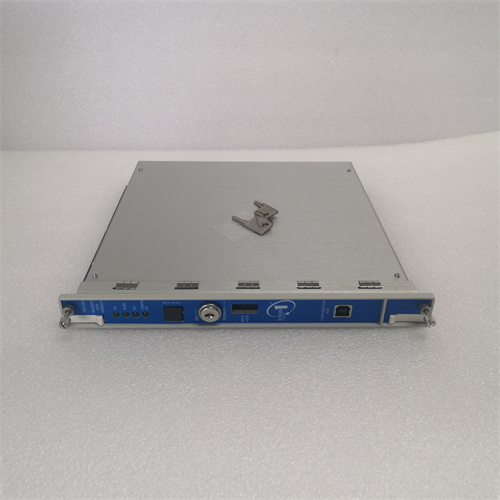

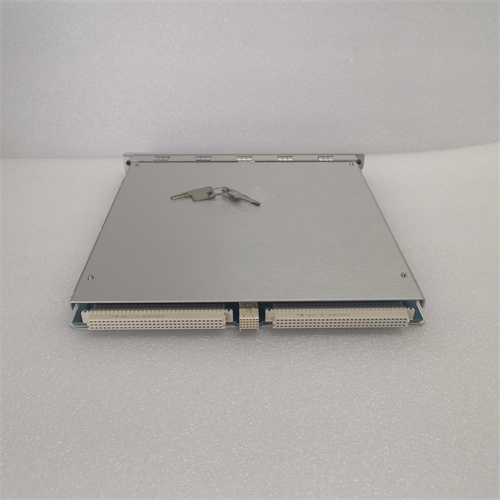

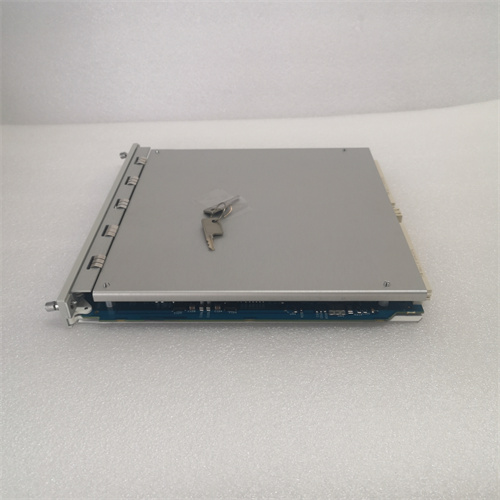

BENTLY 3500/22M 288055-01产品详情
BENTLY 3500/22M 288055-01是本特利（Bently Nevada）公司开发的一款瞬态数据接口模块（TDI），主要用于3500监控系统，与系统1状态监控和诊断软件及3500系统配置软件兼容，实现数据采集、传输和振动监测等功能。以下为产品具体详情：
核心功能
数据采集与传输
将3500/20机架接口模块（RIM）与通信处理器（如TDXnet）结合，持续收集稳态和瞬态动态（波形）数据，并通过以太网链路传输至主机软件。
支持数据采集键相器输入，可处理多个3500系统键相器信号，速度范围覆盖1至48通道动态通道数量下的不同转速。
振动监测与故障诊断
实时监测设备振动情况，通过频谱分析、趋势分析等手段，及时发现潜在故障并预警。
提供高精度振动传感器和信号处理技术，支持报警前后的静态值和波形数据采集，确保故障诊断的准确性。
远程监控与报警
通过以太网端口实现远程监控，支持TCP/IP、Modbus等工业通信协议，可与上位机或PLC等设备联动。
内置报警功能，在设备异常时及时通知技术人员处理。
技术参数
工作电压：支持24V DC电源输入。
防护等级：未明确标注，但设计符合工业环境使用标准。
接口类型：包括RJ-45以太网端口、光纤以太网端口、USB配置端口等，支持10 Base-T/100 Base-TX（铜质）及100 Base-FX（光纤）以太网I/O。
动态通道数量：支持1至48通道动态数据采集，速度范围根据通道数量动态调整。
数据存储：瞬态事件采集数量受模块内存限制，支持报警前后的静态值和波形数据存储。
产品优势
高精度与稳定性
采用高精度振动传感器和先进信号处理技术，确保振动数据采集的准确性和可靠性。
支持多种传感器类型（如加速度计、速度计、位移传感器），动态范围广，可测量从微小到大幅的振动。
灵活性与扩展性
支持多种通信协议，可与不同厂商设备无缝集成，适应复杂工业环境。
提供双核变体，每秒可扩展到3.37亿指令，满足复杂控制算法需求。
易用性与维护性
内置数据采集和分析功能，简化用户操作流程。
提供丰富的工业图像库和配置工具，支持硬件配置、模块阶梯应用开发和HMI设计。
模块化设计便于安装和维护，降低整体系统成本。
BENTLY 3500/22M 288055-01 Product Details
BENTLY 3500/22M 288055-01 is a transient data interface module(TDI)developed by Bently Nevada.It is mainly used in 3500 monitoring systems.It is compatible with system 1 status monitoring and diagnostic software and 3500 system configuration software to realize data acquisition,transmission and vibration monitoring functions.The following are the specific details of the product:
Core functions
Data acquisition and transmission
Combines the 3500/20 rack interface module(RIM)with a communication processor(such as TDXnet)to continuously collect steady-state and transient dynamic(waveform)data and transmit it to the host software via an Ethernet link.
Supports data acquisition key phaser input,can process multiple 3500 system key phaser signals,and the speed range covers different speeds under the number of dynamic channels from 1 to 48 channels.
Vibration monitoring and fault diagnosis
Real-time monitoring of equipment vibration,timely detection of potential faults and early warning through spectrum analysis,trend analysis and other means.
Provides high-precision vibration sensors and signal processing technology,supports static value and waveform data collection before and after the alarm,and ensures the accuracy of fault diagnosis.
Remote monitoring and alarm
Remote monitoring is achieved through the Ethernet port,supports industrial communication protocols such as TCP/IP and Modbus,and can be linked with host computers or PLCs and other devices.
Built-in alarm function,promptly notifies technicians to handle when the equipment is abnormal.
Technical parameters
Working voltage:supports 24V DC power input.
Protection level:not clearly marked,but the design meets the standards for use in industrial environments.
Interface type:includes RJ-45 Ethernet port,fiber Ethernet port,USB configuration port,etc.,supports 10 Base-T/100 Base-TX(copper)and 100 Base-FX(fiber)Ethernet I/O.
Number of dynamic channels:supports 1 to 48 channels of dynamic data collection,and the speed range is dynamically adjusted according to the number of channels.
Data storage:The number of transient event collections is limited by the module memory,and supports static value and waveform data storage before and after the alarm.
Product Advantages
High Precision and Stability
Adopt high-precision vibration sensors and advanced signal processing technology to ensure the accuracy and reliability of vibration data collection.
Supports multiple sensor types(such as accelerometers,speedometers,displacement sensors),with a wide dynamic range,and can measure vibrations from small to large.
Flexibility and Scalability
Supports multiple communication protocols,can be seamlessly integrated with devices from different manufacturers,and adapt to complex industrial environments.
Provides dual-core variants,which can be expanded to 337 million instructions per second to meet the needs of complex control algorithms.
Ease of Use and Maintainability
Built-in data acquisition and analysis functions to simplify user operation processes.
Provides a rich industrial image library and configuration tools to support hardware configuration,module ladder application development and HMI design.
Modular design facilitates installation and maintenance,reducing overall system costs.
