描述

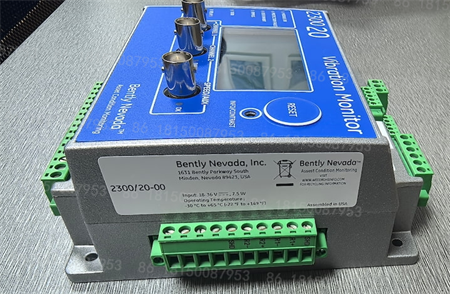

Bently Nevada 2300/20-00是一款振动监测器，主要用于对工业设备的振动情况进行连续监测和保护。以下是其详细信息：
基本参数
尺寸：127mm×127mm×76.2mm（5英寸×5英寸×3英寸）。
重量：约1.03kg（2.26磅）。
电源输入：DC输入18-36VDC，最大7.5W。
工作温度范围：-30°C至+65°C（-22°F至+149°F）。
存储温度范围：-40°C至+85°C（-40°F至+185°F）。
输入输出
振动输入：支持2路地震式振动通道，可接入ICP加速度传感器或自定义加速度传感器（2线或3线），每个通道独立进行24位AD转换。
转速/键相输入：支持涡流探头、接近开关、磁阻发讯器等键相传感器，转速输入高达20kHz，转速范围为1到120,000RPM。
输出：包含两路可编程继电器输出，可设置为常带电或常失电；两路4-20mA输出；三路缓冲传感器输出（包括转速信号），通过BNC插头获取，提供短路和抗电磁干扰保护。
功能特点
连续监测与保护：可实时监测振动幅值、设定值以及转速等关键测量值，如通频峰值、峰-峰值、通频RMS有效值等，并可进行实时报警组态。
同步采样：两个加速度振动输入可同步采样，便于进行高级诊断分析。

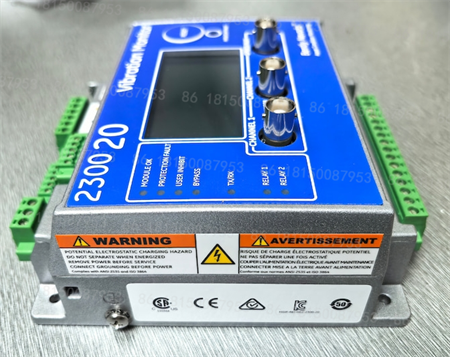

显示与指示：配备LCD显示屏，可显示振动幅值、设定值以及转速等信息，同时LED指示灯可显示监测器状态。
通信功能：可通过以太网10/100Base-T通讯接口，使用“本特利内华达监测器组态软件”对监测器进行组态，还可选配Modbus以太网通讯。
接点输入：提供用于通道旁路、组态锁定以及复位的接点输入。
应用领域：适用于石油和天然气、电力生产、水处理、制浆造纸、制造业等行业，可对泵、压缩机、风机、马达等设备进行振动监测和保护。
The Bently Nevada 2300/20-00 is a vibration monitor designed for continuous vibration monitoring and protection of industrial equipment.The following are its details:
Basic Parameters
Dimensions:127mm×127mm×76.2mm(5 inches×5 inches×3 inches).
Weight:Approximately 1.03kg(2.26 pounds).
Power Input:DC input 18-36VDC,maximum 7.5W.
Operating Temperature Range:-30°C to+65°C(-22°F to+149°F).
Storage Temperature Range:-40°C to+85°C(-40°F to+185°F).
Input/Output
Vibration Input:Supports two seismic vibration channels,compatible with ICP accelerometers or custom accelerometers(2-wire or 3-wire).Each channel performs independent 24-bit A/D conversion.Speed/Key Phase Input:Supports key phase sensors such as eddy current probes,proximity switches,and reluctance transmitters.Speedinputs are up to 20kHz and cover a speed range of 1 to 120,000 RPM.
Outputs:Includes two programmable relay outputs,configurable to be normally energized or normally de-energized;two 4-20mA outputs;and three buffered sensor outputs(including a speed signal)accessible via BNC connectors with short-circuit and EMI protection.
Features
Continuous Monitoring and Protection:Provides real-time monitoring of key measurements such as vibration amplitude,setpoint,and speed,including peak,peak-to-peak,and RMS values,and allows for real-time alarm configuration.
Synchronous Sampling:Synchronous sampling of the two acceleration and vibration inputs facilitates advanced diagnostic analysis.
Display and Indication:Equipped with an LCD display,vibration amplitude,setpoint,and speed information is displayed,while LED indicators indicate monitor status.Communication:The monitor can be configured via the Bently Nevada Monitor Configuration Software via an Ethernet 10/100Base-T communication interface.Modbus Ethernet communication is also optional.
Contact Inputs:Contact inputs are provided for channel bypass,configuration lockout,and reset.
Applications:Suitable for vibration monitoring and protection of equipment such as pumps,compressors,fans,and motors in industries such as oil and gas,power generation,water treatment,pulp and paper,and manufacturing.
