一、产品概述

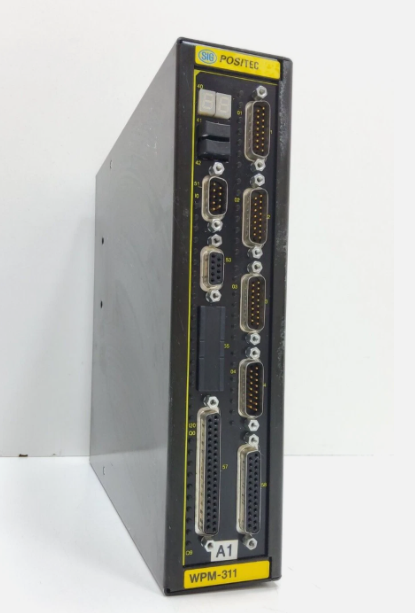

WPM311.03401是德国BERGER LAHR公司研发的可编程逻辑控制器（PLC），属于工业自动化控制领域的核心设备。其设计目标是实现生产过程中的逻辑控制、参数检测与执行机构驱动，广泛应用于机器人控制、电气设备管理及工业自动化系统。
二、核心功能与特点
高性能与可靠性
采用先进的控制技术，支持高速数据处理与多任务并行执行，确保在复杂工业环境下的稳定运行。
具备抗干扰能力，适应高温、高湿、粉尘等恶劣条件。
模块化与扩展性
支持多种输入/输出接口扩展（如数字量、模拟量），兼容不同传感器和执行器。
提供功能块编程（如双稳态元素、计数器、定时器），支持用户自定义逻辑控制流程。
易用性与维护
简单的编程界面和调试工具，降低用户学习成本。
支持实时状态监控与故障诊断，便于维护和问题排查。
高效能与性价比
优化的硬件架构和算法设计，实现低功耗运行，同时保持高处理效率。
综合成本低于同类高端PLC，适合中大型工业项目需求。
三、技术参数
参数类别规格
处理器架构工业级微处理器（具体型号未公开）
通信接口支持以太网、RS-485等工业协议（如Modbus、PROFINET）
I/O点数可扩展至数百点（数字量/模拟量混合配置）
工作电压220 V AC或24 V DC（不同配置可能不同）
处理速度最高3μs响应时间（部分场景）
环境适应性工作温度：-20°C至60°C；防护等级：IP65（部分型号）
存储容量程序容量44 KB，数据存储区77 KB（支持FRAM铁电存储技术，耐久性高）
四、典型应用场景
机器人控制
驱动机械臂、自动化装配线等设备的精准运动控制。
电气设备管理
监测电机、泵、压缩机等设备的启停、过载保护及状态反馈。
工业自动化系统
集成于DCS（分布式控制系统）或SCADA系统，实现生产线全流程自动化。
特殊环境应用
爆炸性环境（如化工厂）或高温区域（如冶金设备）的防爆控制。
1.Product Overview
WPM311.03401 is a programmable logic controller(PLC)developed by BERGER LAHR,Germany,and is a core equipment in the field of industrial automation control.Its design goal is to realize logic control,parameter detection and actuator drive in the production process,and it is widely used in robot control,electrical equipment management and industrial automation systems.
2.Core functions and features
High performance and reliability
Adopt advanced control technology to support high-speed data processing and multi-task parallel execution to ensure stable operation in complex industrial environments.
It has anti-interference ability and adapts to harsh conditions such as high temperature,high humidity,and dust.
Modularity and scalability
Supports multiple input/output interface extensions(such as digital and analog),and is compatible with different sensors and actuators.
Provides functional block programming(such as bistable elements,counters,timers)to support user-defined logic control processes.
Ease of use and maintenance
Simple programming interface and debugging tools to reduce user learning costs.
Supports real-time status monitoring and fault diagnosis,which facilitates maintenance and problem investigation.
High performance and cost-effectiveness
Optimized hardware architecture and algorithm design to achieve low power operation while maintaining high processing efficiency.
The comprehensive cost is lower than similar high-end PLCs,which is suitable for the needs of medium and large industrial projects.
3.Technical parameters
Parameter Category Specifications
Processor architecture Industrial-grade microprocessor(specific model not disclosed)
Communication interface supports industrial protocols such as Ethernet and RS-485(such as Modbus and PROFINET)
I/O points can be expanded to hundreds of points(digital/analog hybrid configuration)
Operating voltage 220 V AC or 24 V DC(multiple configurations may vary)
Processing speed:Maximum 3μs response time(some scenarios)
Environmental adaptability Operating temperature:-20°C to 60°C;Protection level:IP65(some models)
Storage capacity:Program capacity:44 KB,data storage area:77 KB(supports FRAM ferroelectric storage technology,high durability)
4.Typical application scenarios
Robot control
Accurate motion control of driving robotic arms,automated assembly lines and other equipment.
Electrical Equipment Management
Monitor the start-stop,overload protection and status feedback of motors,pumps,compressors and other equipment.
Industrial automation system
Integrated into DCS(Distributed Control System)or SCADA system to realize the full process automation of the production line.
Special environment applications
Explosion-proof control in explosive environments(such as chemical plants)or in high temperature areas(such as metallurgical equipment).
