描述
产品概述

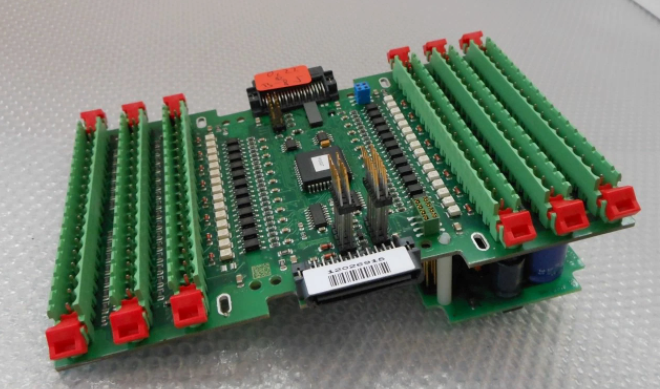

BERGHOF CDIO 16/16-0,5是一款工业控制模块，主要用于数字输入/输出信号的控制与监控，适用于工业自动化领域的设备逻辑控制、状态监测及系统集成。其核心功能包括高密度I/O接口、多协议通信、紧凑型设计等，支持复杂工业环境下的稳定运行。
核心参数与技术特点
1.物理特性
通道配置：
16路数字输入（DI）与16路数字输出（DO），支持高速信号采集与控制。
输入/输出类型可选（如NPN/PNP兼容），适应不同传感器和执行器需求。
接口协议：
支持Modbus、Profibus、EtherCAT等工业通信协议，兼容主流PLC系统（如西门子、施耐德）。
安装方式：
紧凑型模块化设计，支持机架安装或独立部署，适应空间受限场景。
2.功能特性
工业级可靠性：
采用抗干扰电路和隔离保护设计，适应高温（-20°C至70°C）、高湿、多尘环境。
支持过压保护、短路保护，防止信号异常导致的硬件损坏。
灵活编程与配置：
提供图形化配置工具，支持用户自定义逻辑控制程序。
支持固件升级，适配新型设备与协议扩展需求。
诊断与维护：
内置实时状态监测功能，可诊断通道故障、通信中断等问题。
提供LED指示灯显示运行状态，便于快速排查问题。
3.设计优势
高效集成：
支持多模块级联，扩展I/O通道至数百路，满足大型自动化系统需求。
兼容GEMA、TBL-lseries等工业设备，提供无缝对接方案。
低功耗与长寿命：
工作电压范围宽（12-24VDC），功耗低于5W，延长设备使用寿命
Product Overview
BERGHOF CDIO 16/16-0,5 is an industrial control module,mainly used for the control and monitoring of digital input/output signals,and is suitable for equipment logic control,status monitoring and system integration in the field of industrial automation.Its core functions include high-density I/O interface,multi-protocol communication,compact design,etc.,which support stable operation in complex industrial environments.
Core parameters and technical characteristics
1.Physical characteristics
Channel configuration:
16 digital inputs(DI)and 16 digital outputs(DO),supporting high-speed signal acquisition and control.
The input/output types are optional(such as NPN/PNP compatible),which meet different sensor and actuator requirements.
Interface protocol:
Supports industrial communication protocols such as Modbus,Profibus,EtherCAT,etc.,and is compatible with mainstream PLC systems(such as Siemens and Schneider).
Installation method:
Compact modular design,supports rack installation or independent deployment,and adapts to space-constrained scenarios.
2.Functional characteristics
Industrial-grade reliability:
It adopts anti-interference circuit and isolation protection design to adapt to high temperature(-20°C to 70°C),high humidity and dusty environments.
Supports overvoltage protection and short circuit protection to prevent hardware damage caused by abnormal signal.
Flexible programming and configuration:
Provide graphical configuration tools to support user-defined logic control programs.
Support firmware upgrades and adapts to new devices and protocol expansion requirements.
Diagnosis and maintenance:
Built-in real-time status monitoring function,which can diagnose channel failures,communication interruptions and other problems.
Provide LED indicators to display the operating status,which is convenient for quick troubleshooting of problems.
3.Design Advantages
Efficient integration:
Supports multi-module cascade,extending I/O channels to hundreds of channels,meeting the needs of large automation systems.
Compatible with industrial equipment such as GEMA,TBL-lseries,and provides seamless docking solutions.
Low power consumption and long life:
Wide operating voltage range(12-24VDC),power consumption is less than 5W,extending the service life of the equipment
