描述
产品概述

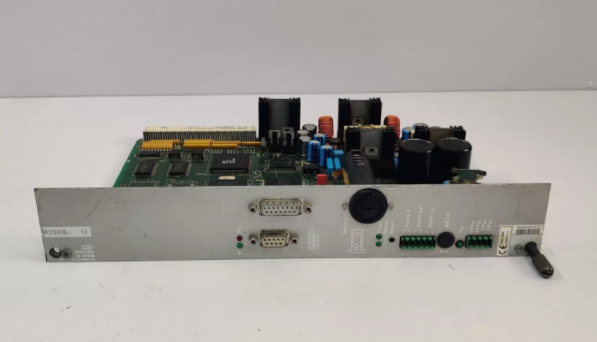

BOSCH DCIO-2/MK-UL是一款工业自动化控制模块，属于分布式控制系统（DCS）的核心组件，专为工业过程监控、数据采集及设备控制设计。其模块化设计支持灵活扩展，适用于化工、能源、制造等领域的复杂工业环境。
核心功能与技术特点
1.控制与通信能力
多协议支持：兼容PROFIBUS-DP/PA等工业总线协议，支持与西门子S5/S7系列、SIMATIC等设备无缝集成。
数据处理：提供实时数据采集与传输功能，适用于温度、压力、流量等工业参数的监测与控制。
网络拓扑：支持点对点、链型、星型及冗余双网拓扑结构，确保高可靠性通信。
2.硬件设计优势
模块化结构：采用紧凑型设计，便于安装与维护，兼容工业标准机架。
环境适应性：工作温度范围宽（-25°C至+75°C），防护等级符合工业设备通用标准。
电源兼容性：支持宽电压输入（如24V DC），适应不同工业场景的供电需求。
3.扩展功能
图形化界面：支持自定义图形符号与操作面板设计，提升人机交互效率。
冗余保护：内置故障诊断与数据保护机制，支持双电源冗余配置。
技术参数
参数类别规格
类型工业I/O模块
通信协议PROFIBUS-DP/PA,工业以太网
I/O点数支持扩展（具体点数需结合系统配置）
工作电压24V DC
环境温度-25°C至+75°C
认证标准符合工业设备安全认证（如CE、UL）
Product Overview
BOSCH DCIO-2/MK-UL is an industrial automation control module,which is a core component of distributed control system(DCS),designed for industrial process monitoring,data acquisition and equipment control.Its modular design supports flexible expansion and is suitable for complex industrial environments in chemical,energy,manufacturing and other fields.
Core functions and technical features
1.Control and communication capabilities
Multi-protocol support:compatible with industrial bus protocols such as PROFIBUS-DP/PA,and supports seamless integration with Siemens S5/S7 series,SIMATIC and other devices.
Data processing:Provides real-time data acquisition and transmission functions,suitable for monitoring and control of industrial parameters such as temperature,pressure,and flow.
Network topology:Supports point-to-point,chain,star and redundant dual network topology structures to ensure high-reliability communication.
2.Hardware design advantages
Modular structure:adopts a compact design for easy installation and maintenance,compatible with industry-standard racks.
Environmental adaptability:Wide operating temperature range(-25°C to+75°C),protection rating complies with the general standards of industrial equipment.
Power supply compatibility:Supports wide voltage input(such as 24V DC)to adapt to power supply needs in different industrial scenarios.
3.Extended functions
Graphical interface:supports custom graphic symbols and operation panel design,improving human-computer interaction efficiency.
Redundancy protection:Built-in fault diagnosis and data protection mechanism,supporting dual power redundant configuration.
Technical parameters
Parameter Category Specifications
Type Industrial I/O Module
Communication Protocol PROFIBUS-DP/PA,Industrial Ethernet
I/O points support expansion(specific points need to be combined with system configuration)
Operating voltage 24V DC
Ambient temperature-25°C to+75°C
Certification standards Comply with industrial equipment safety certification(such as CE,UL)
