描述

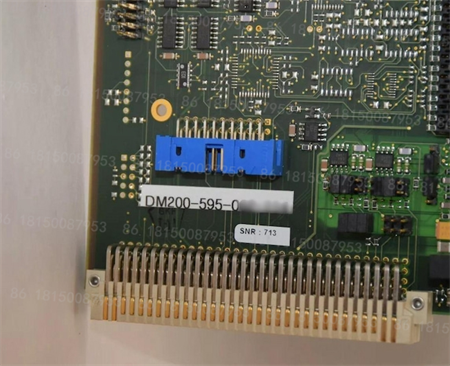

CPUM 200-595-075-122是Vibro-Meter公司VM600系列中的一款模块化CPU卡，主要用于机械保护系统（MPS）和状态监测系统（CMS）。以下是其产品详情：
基本信息
品牌：Vibro-Meter
型号：CPUM 200-595-075-122
产地：瑞士
类型：模块化CPU卡
尺寸：12×11×8cm
重量：0.65kg
技术规格
插槽：由一个带有两个PC/104类型插槽的底座载体卡组成，标准配置中安装一个PC/104类型的CPU模块。
通信接口：通过前面板的DB9连接器提供RS-232连接，通过RJ45连接器提供以太网网络连接；也可通过安装的IOC N上的相关端口进行连接。IOC N是一种网络通信卡，包括两对RJ11连接器，用于配置CPU M规格的VM600机架的多点RS-485网络，另一个RJ45连接器用于冗余以太网连接。
显示：前面板有一个LCD显示屏，以条形图和数字形式显示所选监测输出的水平，条形图上会显示警报和危险级别，显示屏顶部会显示信号标识（插槽和输出编号）。
状态指示：前面板上有彩色LED指示灯，分别以绿色、黄色和红色指示当前所选信号的正常、警报（A）和危险（D）状态，当选择插槽0时，LED指示灯指示整个机架的状态。当CPUM卡正常工作时，绿色诊断（diag）LED点亮。
报警功能：前面板上有一个报警复位按钮，用于复位整个机架的所有锁定报警（及相关继电器）。
功能特点
通信协议支持：支持多种通信协议，如Modbus RTU/TCP、PROFINET等，可与PLC、HMI、SCADA系统等进行数据交换。
保护卡管理：通常与保护卡（如MPC4和AMC8）一起使用，可对保护卡进行“一次性”配置管理，并通过前面板显示器提供可视化监控输出和报警限值。
事件记录：可以记录系统事件和测量事件日志，这些日志可通过VM600 MPSx软件获取和分析。
集成与扩展：具有良好的集成性和扩展性，可与其他Vibro-Meter产品轻松集成，还支持添加额外的I/O模块、通信接口卡等，以满足不同应用需求。
The CPUM 200-595-075-122 is a modular CPU card in Vibro-Meter’s VM600 series,primarily used in machinery protection systems(MPS)and condition monitoring systems(CMS).The following are product details:
Basic Information
Brand:Vibro-Meter
Model:CPUM 200-595-075-122
Origin:Switzerland
Type:Modular CPU Card
Dimensions:12 x 11 x 8 cm
Weight:0.65 kg
Technical Specifications
Slots:Consists of a base carrier card with two PC/104-type slots.The standard configuration accommodates one PC/104-type CPU module.
Communication Interfaces:RS-232 connectivity is provided via a DB9 connector on the front panel,and Ethernet network connectivity is provided via an RJ45 connector.Connections can also be made via the corresponding ports on an installed IOC N.The IOC N is a network communication card that includes two pairs of RJ11 connectors for configuring a multi-drop RS-485 network for a CPU M-size VM600 rack,and a second RJ45 connector for redundant Ethernet connectivity.
Display:The front panel features an LCD display that displays the level of the selected monitored output in both bar graph and numeric form.Alarm and danger levels are shown on the bar graph,and the signal identifier(slot and output number)is displayed at the top of the display.
Status Indication:Colored LEDs on the front panel indicate the normal,alarm(A),and danger(D)status of the currently selected signal in green,yellow,and red,respectively.When slot 0 is selected,the LEDs indicate the status of the entire rack.The green diagnostic(diag)LED illuminates when the CPU M card is functioning properly.
Alarm Functionality:An alarm reset button on the front panel resets all latched alarms(and associated relays)for the entire rack.Features
Communication Protocol Support:Supports multiple communication protocols,such as Modbus RTU/TCP and PROFINET,enabling data exchange with PLCs,HMIs,SCADA systems,and more.
Protection Card Management:Typically used with protection cards(such as the MPC4 and AMC8),this allows for one-time configuration and management of protection cards,while providing visual monitoring of outputs and alarm limits via the front panel display.
Event Logging:System and measurement event logs can be recorded and analyzed using the VM600 MPSx software.
Integration and Expansion:The device offers excellent integration and expandability,enabling easy integration with other Vibro-Meter products.It also supports the addition of additional I/O modules and communication interface cards to meet diverse application requirements.
