描述
产品简要说明

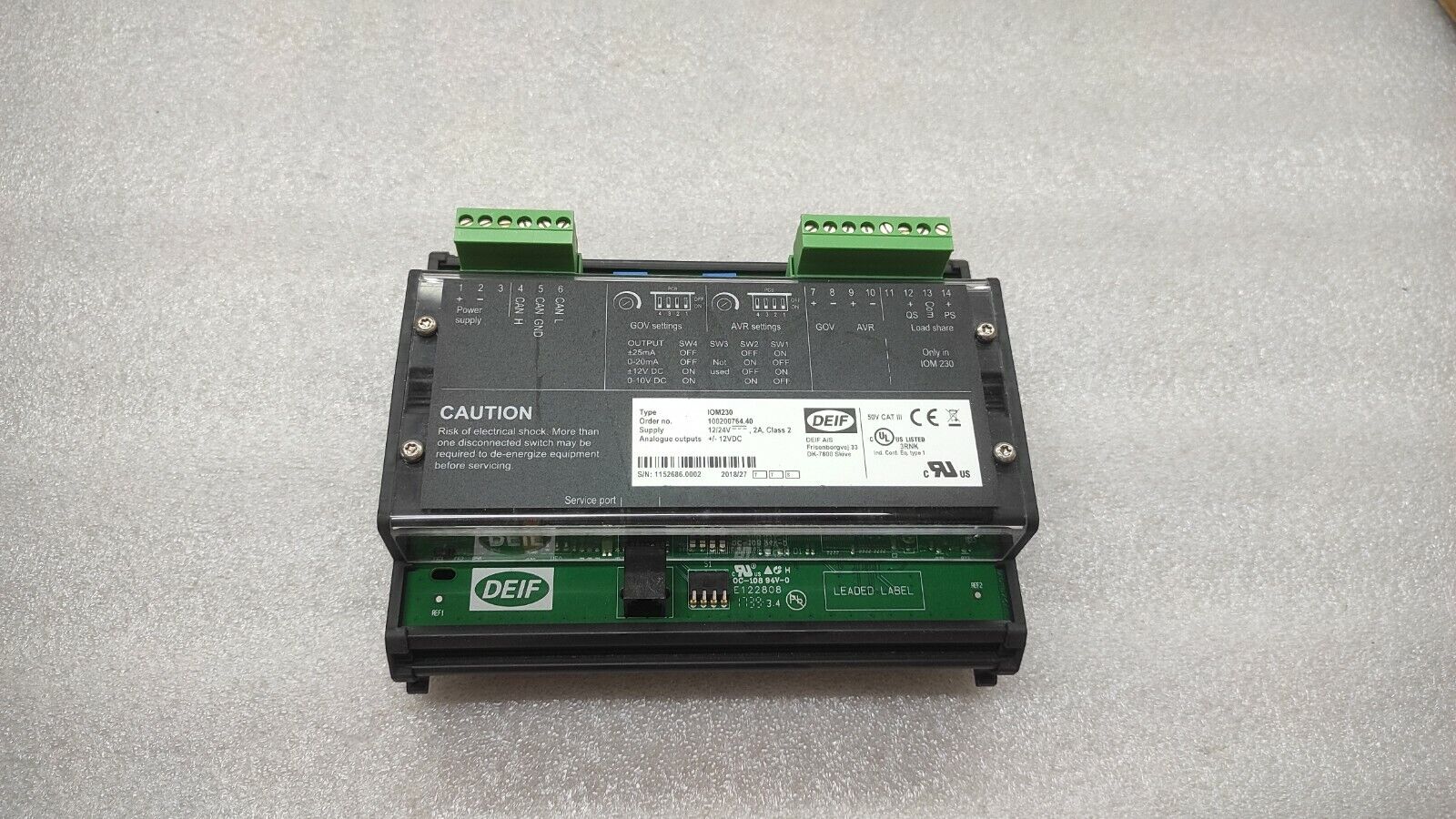

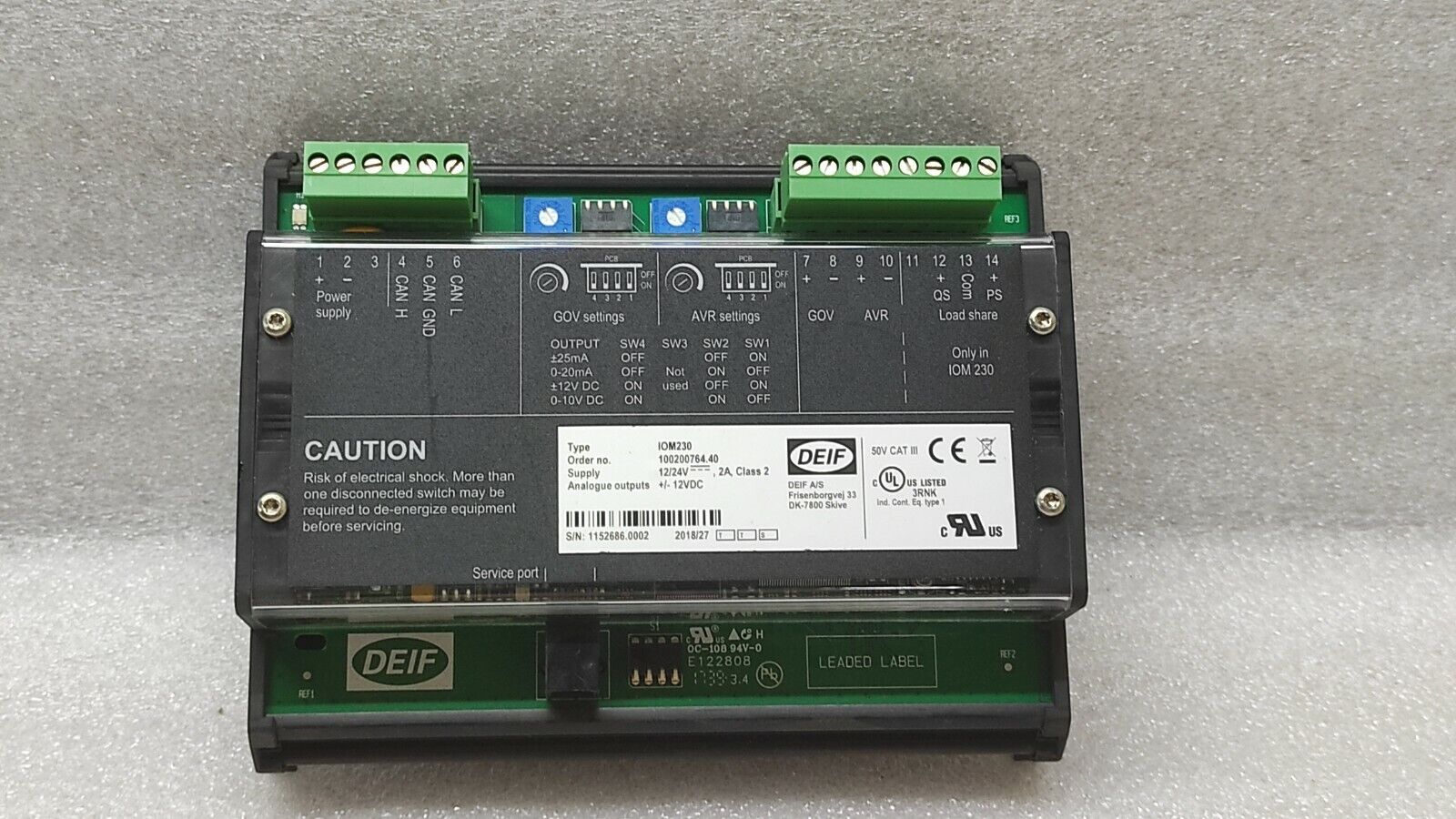

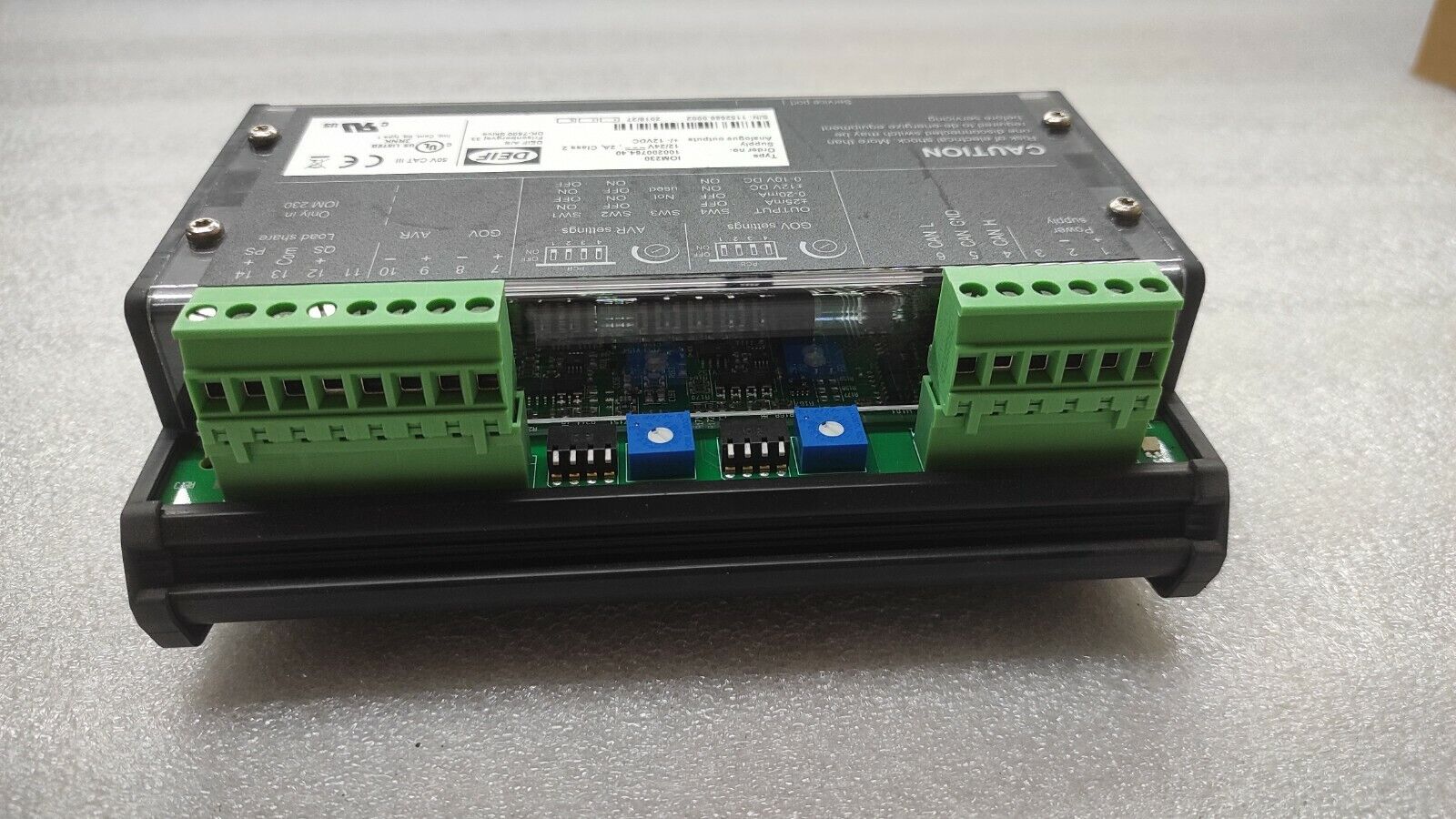

IOM230是DEIF推出的高性能工业I/O模块，专为复杂控制系统设计。其核心特性包括：
混合信号处理：支持±12VDC输入与多级信号调理
冗余通信：EtherCAT+CANopen双协议热备
宽温运行：-40°C至+85°C全温区覆盖
产品详细说明
1.核心架构设计
信号链优化
输入通道：
8通道差分模拟输入（分辨率16位）
输出通道：
4路隔离型DAC输出（支持0-10V/4-20mA切换）
智能诊断系统
自检机制：
上电执行ADC/DAC环回测试（故障代码自动上报）
信号质量评估：
实时SNR监测（阈值可设触发警报）
2.通信与组网
协议栈实现
工业以太网：
支持IEEE 1588精密时钟同步（精度<10μs）
现场总线：
Profinet IO设备配置（GSDML文件库兼容）
扩展拓扑
分布式部署：
最大支持32节点菊花链组网（光纤/双绞线可选）
网关兼容：
无缝接入Siemens Scalance X系列交换机
3.环境适应性
防护等级：
IP67（front panel防水测试符合IEC 60529）
机械特性：
冲击耐受30g/11ms（符合MIL-STD-810H）
产品概述:IOM230
IOM230由DEIF研发，是一款面向智能制造和能源领域的高可靠性I/O模块。其模块化设计结合开放式协议支持，可满足发电厂监控、轨道交通控制及分布式能源管理等严苛场景需求。
Product brief description
IOM230 is a high-performance industrial I/O module launched by DEIF,designed for complex control systems.Its core features include:
Mixed signal processing:Supports±12VDC input and multi-stage signal conditioning
Redundant communication:EtherCAT+CANopen dual protocol hot standby
Wide temperature operation:-40°C to+85°C full temperature coverage
Product details
1.Core architecture design
Signal chain optimization
Input channel:
8-channel differential analog input(16-bit resolution)
Output channel:
4-channel isolated DAC output(supports 0-10V/4-20mA switching)
Intelligent diagnostic system
Self-test mechanism:
Power on to perform ADC/DAC loopback test(fault code is automatically reported)
Signal quality assessment:
Real-time SNR monitoring(threshold can be set to trigger an alarm)
2.Communication and networking
Protocol stack implementation
Industrial Ethernet:
Supports IEEE 1588 precision clock synchronization(precision<10μs)
Fieldbus:
Profinet IO device configuration(GSDML file library compatible)
Extended topology
Distributed deployment:
Supports maximum 32-node daisy chain networking(optional fiber/twisted pair cable)
Gateway compatibility:
Seamless access to Siemens Scalance X-Series switches
3.Environmental adaptability
Protection level:
IP67(front panel waterproof test complies with IEC 60529)
Mechanical characteristics:
Impact resistance 30g/11ms(compliant with MIL-STD-810H)
Product Overview:IOM230
The IOM230 is developed by DEIF and is a high-reliability I/O module for the intelligent manufacturing and energy fields.Its modular design combined with open protocol support can meet the strict scenario needs of power plant monitoring,rail transit control and distributed energy management.
