描述
产品简要说明

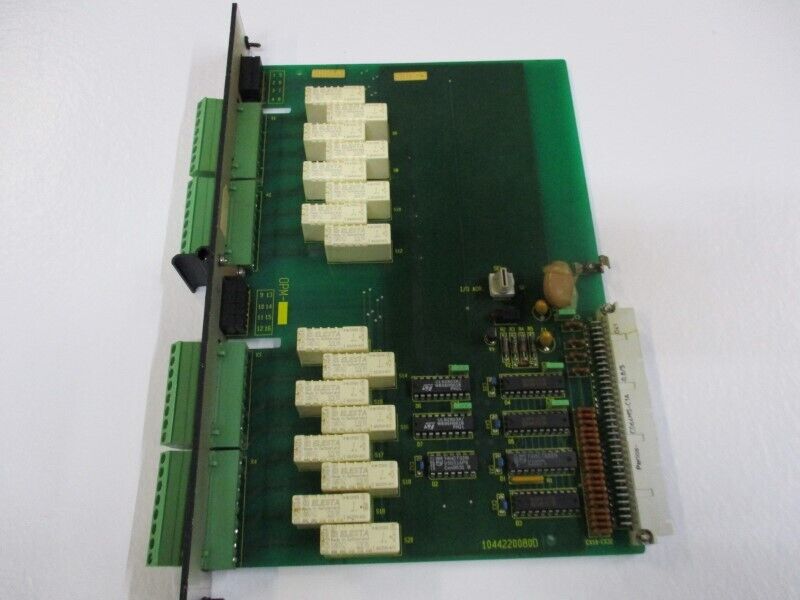

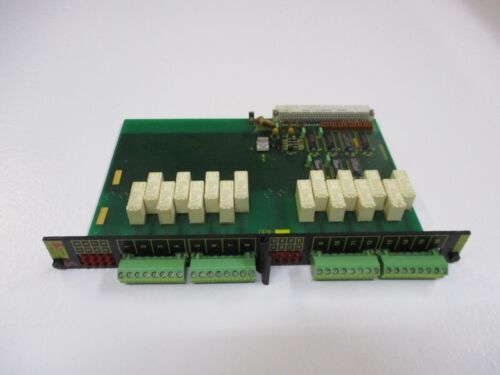

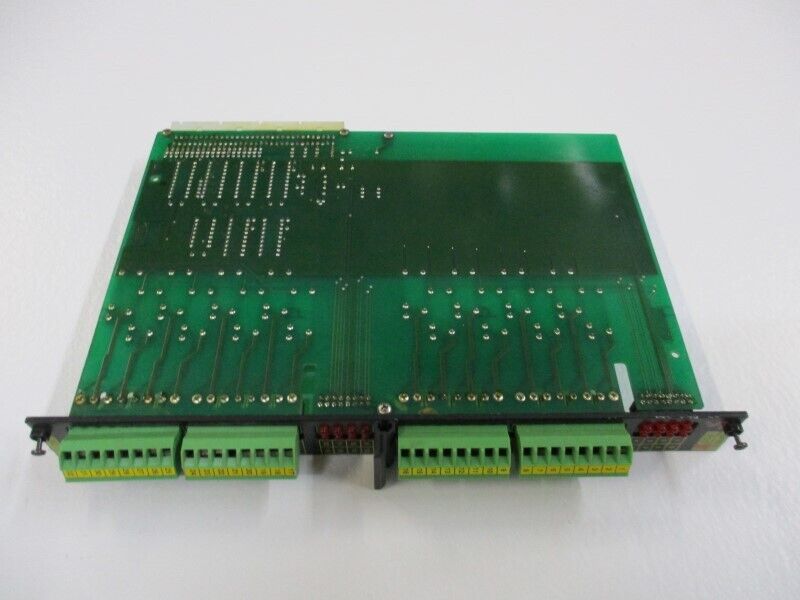

OPM-1是DEIF专为工业自动化设计的高性能I/O模块，核心特性包括：
多通道输出：支持模拟量/数字量灵活配置
环境适应性：IP65防护+宽温运行
即插即用：标准化DIN导轨安装
产品详细说明
1.硬件架构与功能设计
核心性能
输出控制：
通过晶体管/继电器混合输出（支持AC/DC负载）
通道配置：
8通道独立隔离（耐压2500Vrms）
智能诊断
状态监测：
实时检测短路/过载并触发DI输入报警
自检机制：
上电后执行通道完整性扫描（耗时<2秒）
2.通信与扩展能力
协议支持
工业总线：
Modbus TCP/IP+PROFIBUS DP（选配）
边缘计算：
内置Python脚本引擎（支持逻辑自定义）
组网特性
冗余设计：
双RS485接口（主从热备）
拓扑兼容：
星型/总线型网络无缝切换
3.环境适应性验证
防护等级：
IP65（前后面板）+抗震抗冲击（IEC 61373）
温湿度范围：
-25°C～+70°C/5%～95%RH（非冷凝）
Product brief description
OPM-1 is a high-performance I/O module designed by DEIF for industrial automation.The core features include:
Multi-channel output:supports flexible configuration of analog/digital quantities
Environmental adaptability:IP65 protection+wide temperature operation
Plug and play:Standardized DIN rail installation
Product details
1.Hardware architecture and functional design
Core Performance
Output control:
Mixed output via transistor/relay(supports AC/DC load)
Channel configuration:
8 channels independent isolation(withstand voltage 2500Vrms)
Intelligent diagnosis
Status Monitoring:
Detect short circuit/overload in real time and trigger DI input alarm
Self-test mechanism:
Perform channel integrity scan after power-on(time<2 seconds)
2.Communication and expansion capabilities
Agreement support
Industrial bus:
Modbus TCP/IP+PROFIBUS DP(optional)
Edge computing:
Built-in Python scripting engine(supports logical customization)
Networking characteristics
Redundant design:
Dual RS485 interface(master and slave hot standby)
Topology compatibility:
Star/bus network seamless switching
3.Environmental adaptability verification
Protection level:
IP65(front and rear panel)+shock resistance(IEC 61373)
Temperature and humidity range:
-25°C~+70°C/5%~95%RH(non-condensing)
