描述
产品简要说明

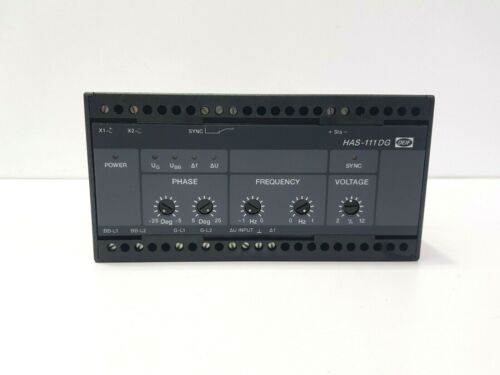

HAS-111 DG是DEIF专为电力系统同步设计的智能并联继电器，核心特性包括：
同步条件检测：电压差、频率差、相角差三重判据
模拟量输出：支持频率与电压信号外传调节
紧凑安装：35mm DIN导轨或底座灵活部署
产品详细说明
1.功能架构与同步逻辑
核心检测机制
三参数同步判据：
同时监测母排与发电机的电压差（±2%～±12%可调）、频率差（-1Hz～+1Hz可调）、相角差，满足全部条件时触发同步脉冲
动态阈值设置：
通过面板电位计实现参数本地化调整
信号交互设计
模拟量输出：
提供频率（4～20mA）与电压（0～10V）独立输出，兼容DEIF LSU系列负载分配单元
状态指示：
双LED实时显示同步进度与系统状态（就绪/延迟/故障）
2.系统集成与扩展
联动控制
孤岛同步支持：
可实现发电机与另一设备（如轴带发电机）的自动同步
工厂级同步：
多台HAS-111 DG协同控制，实现全场发电机并网
环境适应性
抗干扰设计：
隔离输入电路抑制电网谐波干扰
安装兼容性：
标准DIN导轨适配主流配电柜布局
产品概述:HAS-111 DG
HAS-111 DG是DEIF面向发电机组并联场景开发的高可靠性同步继电器，通过精准参数阈值控制与模拟量输出联动，确保船舶、分布式电站等场景下的安全并网，支持从手动到半自动的多模式同步操作。
Product brief description
HAS-111 DG is an intelligent parallel relay specially designed by DEIF for power systems.The core features include:
Synchronous condition detection:voltage difference,frequency difference,phase angle difference triple criterion
Analog output:Support frequency and voltage signal outgoing adjustment
Compact installation:35mm DIN rails or bases flexible deployment
Product details
1.Functional architecture and synchronization logic
Core detection mechanism
Three-parameter synchronization criteria:
At the same time,the voltage difference between the busbar and the generator(±2%~±12%adjustable),frequency difference(-1Hz~+1Hz adjustable),and phase angle difference are monitored,and the synchronization pulse is triggered when all conditions are met.
Dynamic threshold settings:
Localized parameter adjustment through panel potentiometer
Signal interaction design
Analog output:
Provides independent output of frequency(4~20mA)and voltage(0~10V),compatible with DEIF LSU series load distribution unit
Status indicator:
Dual LEDs display synchronous progress and system status in real time(ready/delay/failure)
2.System integration and extension
Linkage control
Island synchronization support:
Automatic synchronization of generator and another device(such as shaft-with generator)can be achieved
Factory level synchronization:
Multiple HAS-111 DG coordinated control to realize grid connection of the entire field generator
Environmental adaptability
Anti-interference design:
Isolated input circuit suppresses grid harmonic interference
Installation Compatibility:
Standard DIN rails are suitable for mainstream distribution cabinet layout
Product Overview:HAS-111 DG
HAS-111 DG is a high-reliability synchronization relay developed by DEIF for parallel generator set scenarios.It is linked with analog output through precise parameter threshold control to ensure safe grid connection in scenarios such as ships and distributed power stations,and supports multi-mode synchronization operations from manual to semi-automatic.
