描述
产品简要说明

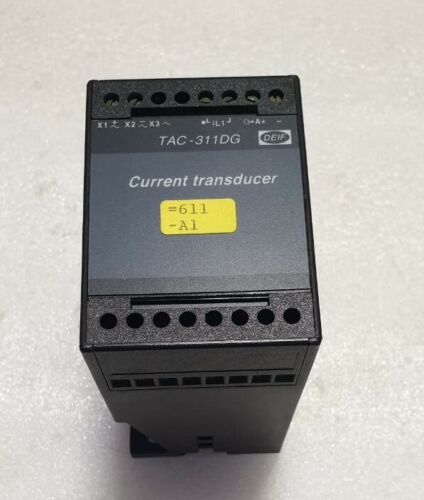

TAC-311DG是DEIF推出的高性能交流变送器，核心特性包括：
多功能测量：支持交流电压、电流、频率及相角检测
信号转换：将AC信号转换为隔离的DC电流/电压输出（4–20mA或0–5mA）
工业适配：适用于电力系统监测、电机控制等严苛场景
产品详细说明
1.测量原理与设计
信号处理：采用隔离变压器实现输入与输出电气隔离，输入信号经整流、滤波后放大为稳定DC输出
精度等级：0.5级（符合IEC 688标准），温漂≤0.1%/10℃
过载能力：可承受40倍额定电流瞬时冲击（持续1秒）
2.配置灵活性
输出斜率：支持最多3种斜率预设，可通过软件工具调整量程
辅助电源：提供多种选项（24V DC/110V DC/220V AC等），适应不同系统需求
产品概述:TAC-311DG AC
作为DEIF工业自动化产品线的重要成员，TAC-311DG通过紧凑设计（55×75mm）与高可靠性电路，实现了交流信号到标准DC信号的高效转换，尤其适用于需要远程监控的电力系统。
技术规格:TAC-311DG AC
参数类别技术指标
输入电流0–1A/0–5A AC（可选量程）
输出信号4–20mA DC（标准型）/0–5mA DC（可调型）
电源电压24–220V DC/AC（宽范围兼容）
安装方式35mm DIN导轨或基座安装（IP20防护）
Product brief description
TAC-311DGis a high-performance AC transmitter launched by DEIF.The core features include:
Multifunctional measurement:supports AC voltage,current,frequency and phase angle detection
Signal conversion:Convert AC signals to isolated DC current/voltage output(4–20mA or 0–5mA)
Industrial adaptation:suitable for rigorous scenarios such as power system monitoring and motor control
Product details
1.Measurement Principles and Design
Signal processing:Isolation transformer is used to achieve electrical isolation of input and output.The input signal is rectified and filtered and amplified to a stable DC output.
Accuracy level:0.5(compliant with IEC 688 standard),temperature drift≤0.1%/10℃
Overload capacity:Can withstand instantaneous impact of 40 times the rated current(lasting 1 second)
2.Configuration flexibility
Output slope:Supports up to 3 slope presets,and the range can be adjusted through software tools.
Auxiliary power supply:Provides a variety of options(24V DC/110V DC/220V AC,etc.)to meet different system needs
Product Overview:TAC-311DGAC
As an important member of DEIF’s industrial automation product line,TAC-311DGrealizes efficient conversion of AC signals to standard DC signals through compact design(55×75mm)and high-reliability circuits,especially suitable for power systems that require remote monitoring.
Technical Specifications:TAC-311DGAC
Parameter category Technical indicators
Input current 0–1A/0–5A AC(optional range)
Output signal 4–20mA DC(standard)/0–5mA DC(adjustable)
Power supply voltage 24–220V DC/AC(wide range compatible)
Installation method 35mm DIN rail or base installation(IP20 protection)
