描述
产品简要说明

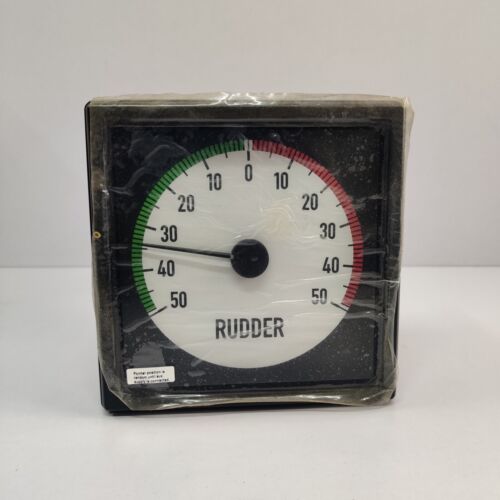

BW144是DEIF专为船舶操舵系统设计的高精度舵角指示器，核心特性包括：
多角度显示：支持单面/三面视角覆盖驾驶舱关键区域
信号兼容：接受±10V直流电压输入（负载电阻≥10kΩ）
环境适应：通过振动测试（0.7g加速度）
产品详细说明
1.功能原理与设计
同步显示机制：
通过舵杆安装的发送器与驾驶台接收器同步，实时反映舵叶偏转角度（±35°标准量程，SCALE 50..9..50可扩展至±50°）
显示模式：
指针式+数字叠加（红色LED背光，夜间可视距≥3米）
2.安装与校准
机械固定：
提供IP66防护等级支架（含蓝色密封垫片）
零点调整：
支持手动微调电位器（调节范围±5°）
产品概述:BW144 SCALE 50..9..50
作为DEIF船舶导航系统的核心组件，BW144通过电气同步技术实现舵叶角度的精准反馈，满足国际海事组织（IMO）对操舵装置可见性的强制要求，显著提升船舶操控安全性。
Product brief description
BW144 is a high-precision rudder angle indicator designed by DEIF for ship steering systems.The core features include:
Multi-angle display:Supports single-sided/three-sided viewing angles to cover key areas of the cockpit
Signal compatibility:Accepts±10V DC voltage input(load resistance≥10kΩ)
Environmental adaptation:Passed vibration test(0.7g acceleration)
Product details
1.Functional Principles and Design
Synchronous display mechanism:
The transmitter installed through the rudder rod is synchronized with the bridge receiver,reflecting the deflection angle of the rudder blade in real time(±35°standard range,SCALE 50..9..50 can be extended to±50°)
Display mode:
Pointer type+digital superposition(red LED backlight,viewable distance≥3 meters at night)
2.Installation and calibration
Mechanical fixation:
Provide IP66 protection grade bracket(including blue sealing gasket)
Zero adjustment:
Supports manual fine-tuning potentiometer(adjustment range±5°)
Product Overview:BW144 SCALE 50..9..50
As the core component of the DEIF ship navigation system,BW144 achieves accurate feedback on the angle of the rudder blade through electrical synchronization technology,meeting the mandatory requirements of the International Maritime Organization(IMO)for the visibility of the steering device,and significantly improving the safety of ship handling.
