描述
产品简要说明

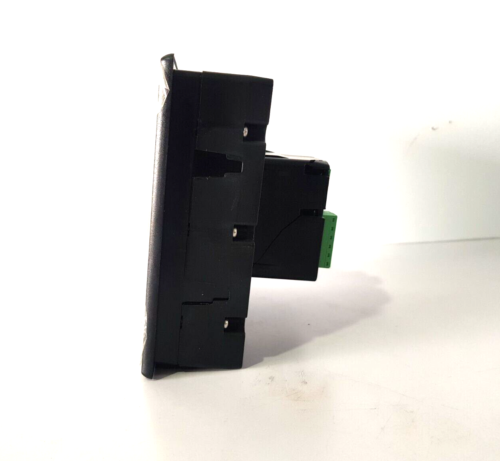

XL144是DEIF专为工业与船舶环境设计的集成式仪表，集转速测量与舵角指示功能于一体，核心特性包括：
双模式输入：支持数字脉冲信号与4-20mA模拟信号
超高精度：全量程误差<±0.5%
步进电机驱动：指针分辨率1/3°，响应时间≤50ms
产品详细说明
1.技术原理与架构
核心工作机制
信号处理：
通过传感器接收数字脉冲或模拟信号，经CPU计数口计算转速/舵角值，驱动步进电机精准定位指针（每步1/3°）
显示技术：
五位动态液晶浮点显示，支持转速（0.1～3000米/分钟线速度）、频率（0.0167～1666.6Hz）多单位切换
舵角指示优化
替代传统缺陷：
解决电感式舵角表因潮气腐蚀、电压波动导致的示值误差问题，采用滑动触头分压设计提升稳定性
Product brief description
XL144 is an integrated instrument designed by DEIF for industrial and marine environments.It integrates speed measurement and rudder angle indicator functions.The core features include:
Dual mode input:Supports digital pulse signal and 4-20mA analog signal
Ultra-high accuracy:full range error<±0.5%
Stepper motor drive:pointer resolution 1/3°,response time≤50ms
Product details
1.Technical principles and architecture
Core working mechanism
Signal processing:
Receive digital pulses or analog signals through the sensor,calculate the speed/rudder angle value through the CPU count port,and drive the stepper motor to accurately locate the pointer(1/3°per step)
Display technology:
Five-digit dynamic LCD floating point display,supports multi-unit switching of speed(0.1~3000m/min linear speed),frequency(0.0167~1666.6Hz)
Rudder angle indication optimization
Alternative traditional flaws:
Solve the error of the indicator value caused by moisture corrosion and voltage fluctuations in inductive rudder angle meter,and adopt the sliding contact voltage divider design to improve stability
