描述

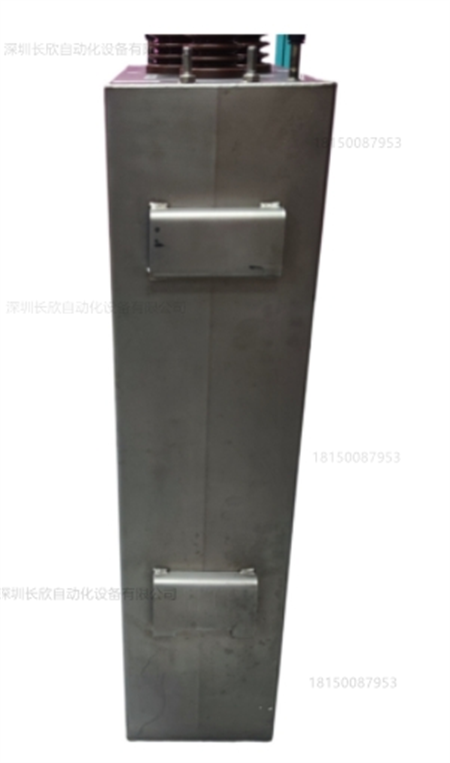

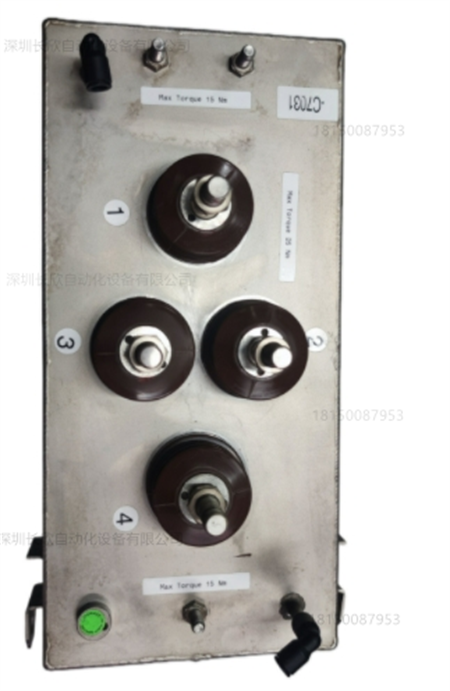

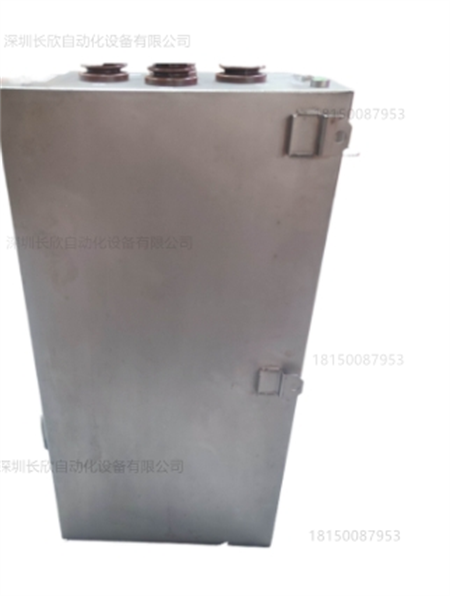

DKTFM418B 3BHB015651P0001是ABB品牌的晶闸管触发模块，主要用于工业变流器和驱动系统中功率晶闸管的精确触发控制。以下是其产品详情：
产品类型：晶闸管触发模块/触发单元。
功能：将来自驱动器或控制系统的控制命令转换为精确的门极脉冲，用于晶闸管开关，确保功率转换系统的稳定运行，可支持单相或多相配置，通过调整触发角来控制输出电压和功率。
关键特性：
精确触发：能够生成精确的门极脉冲，以控制晶闸管的导通。
高可靠性：采用工业级组件构建，使用寿命长，抗电气噪声和电压浪涌能力强，可在恶劣的工业环境中可靠运行。
灵活集成：与ABB功率变流器和驱动器兼容，可用于改造或升级项目，支持来自外部系统的多种控制信号格式。
保护与诊断：包括过电压和错误触发序列保护电路，内置状态指示灯用于运行监测，可检测并响应异常负载或设备状况。
技术参数：
控制电压输入：低压控制信号。
输出类型：晶闸管门极脉冲。
触发角范围：0°-180°可调。
冷却方式：自然对流。
工作温度：-20°C至+60°C。
安装方式：面板或机架安装。
应用领域：
工业驱动：用于中大功率电机的速度和扭矩控制。
功率变流器：适用于重工业中的交直流和直流交流转换，以及高压直流输电晶闸管的门极控制。
静止无功补偿器（SVC）：用于电网中的电压和无功功率调节。
冶金、采矿和造纸：大型工业设备的驱动和变流器。
The DKTFM418B 3BHB015651P0001 is an ABB-branded thyristor trigger module,primarily used for precise triggering and control of power thyristors in industrial converters and drive systems.The following are product details:
Product Type:Thyristor Trigger Module/Trigger Unit.
Function:Converts control commands from the drive or control system into precise gate pulses for thyristor switching,ensuring stable operation of the power conversion system.It supports single-phase or multi-phase configurations and controls output voltage and power by adjusting the firing angle.
Key Features:
Precise Triggering:Generates precise gate pulses to control the conduction of thyristors.
High Reliability:Constructed using industrial-grade components,it offers long service life and strong immunity to electrical noise and voltage surges,ensuring reliable operation in harsh industrial environments.
Flexible Integration:Compatible with ABB power converters and drives,it can be used in retrofit or upgrade projects and supports a variety of control signal formats from external systems.Protection and Diagnostics:Includes overvoltage and faulty trigger sequence protection circuitry,and a built-in status indicator for operational monitoring,enabling detection and response to abnormal load or equipment conditions.
Technical Parameters:
Control Voltage Input:Low-voltage control signal.
Output Type:Thyristor gate pulse.
Firing Angle Range:Adjustable from 0°to 180°.
Cooling:Natural convection.
Operating Temperature:-20°C to+60°C.
Mounting:Panel or rack mount.
Applications:
Industrial Drives:For speed and torque control of medium-and high-power motors.
Power Converters:Suitable for AC/DC and DC/AC conversion in heavy industry,as well as gate control of HVDC thyristors.
Static VAR Compensators(SVCs):For voltage and reactive power regulation in power grids.
Metallurgy,Mining,and Papermaking:Drives and converters for large industrial equipment.
