描述

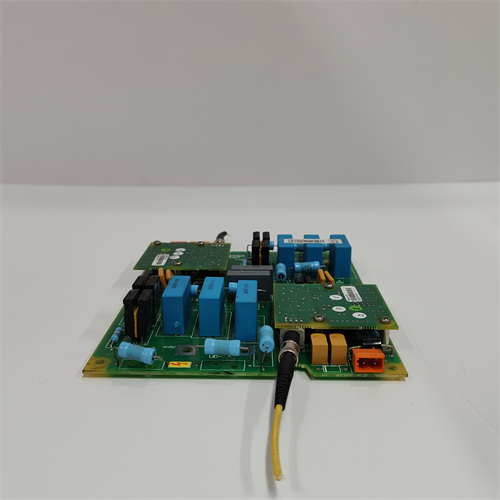

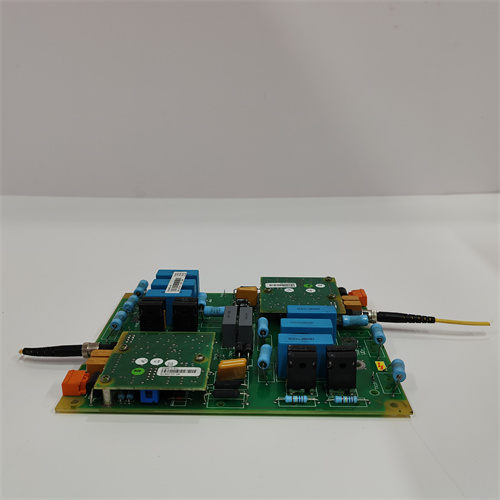

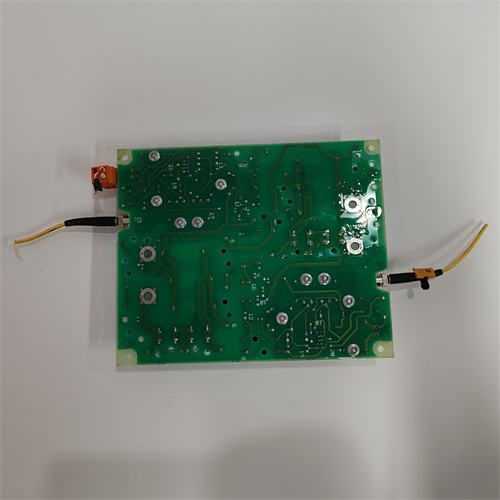

DYSF118B 61430001-XG是ABB公司生产的一款通信接口模块，以下是其产品详情：
产品概述：
品牌与型号：品牌为ABB，型号是DYSF118B 61430001-XG。
产品类型：属于通信接口模块，用于实现设备之间的通信连接和数据传输。
原产国：瑞典。
重量与尺寸：重量约0.3kg，尺寸为18.5cm×15cm×2.5cm。
功能特点：
高速处理能力：具备较高的数据处理速度，适用于实时控制应用场景，能够快速处理和传输通信数据，确保系统的实时性和稳定性。
灵活的I/O配置：输入/输出配置具有多样性，可根据不同的应用需求进行灵活设置，方便与各种设备进行连接，满足多种通信接口要求。
强大的通信能力：具有增强的通信功能，可与其他系统实现无缝集成，支持多种通信协议，能够在不同的设备和系统之间建立可靠的通信链路。
耐用性设计：采用紧凑且耐用的设计结构，适合在恶劣的工业环境中使用，具备良好的抗干扰能力和稳定性，能够适应高温、潮湿、振动等工业现场的恶劣条件。
工作原理：如果S800 I/O模块由于任何原因与Advant控制器450失去联系，它将进入“本地模式”。在这种模式下，它会将输出信号保持在最近的正确值或用户选择的预定值。这些安全值在Advant控制器450数据库中设置，并在启动时传输到设备。当连接重新建立时，将恢复正常运行。
机械特性：
高度模块化：机械结构高度模块化，由通信接口模块、光模块总线调制解调器、I/O模块和现场布线终端单元（MTU）四个基本部分组成。通信接口模块、光模块总线调制解调器和MTU按照DIN EN 50033-35*15标准安装在标准DIN安装导轨上。
防护等级IP20：所有模块均采用注塑成型的塑料外壳，根据IEC 529标准，防护等级为IP20。
机械防误插：I/O模块具有机械键控装置，可防止将模块插入与I/O模块工厂设置的键码不同的位置，MTU的键设置为与其I/O模块的键码相同，避免模块因误插而损坏。
DYSF118B 61430001-XG is a communication interface module produced by ABB.The following are its product details:
Product Overview:
Brand and Model:The brand is ABB,and the model is DYSF118B 61430001-XG.
Product Type:It is a communication interface module used to achieve communication connection and data transmission between devices.
Country of Origin:Sweden.
Weight and Dimensions:The weight is about 0.3kg,and the dimensions are 18.5cm×15cm×2.5cm.
Functional Features:
High-speed processing capability:It has a high data processing speed and is suitable for real-time control application scenarios.It can quickly process and transmit communication data to ensure the real-time and stability of the system.
Flexible I/O Configuration:The input/output configuration is diverse and can be flexibly set according to different application requirements,which is convenient for connection with various devices and meets various communication interface requirements.
Powerful communication capabilities:With enhanced communication capabilities,it can achieve seamless integration with other systems,support multiple communication protocols,and establish reliable communication links between different devices and systems.
Durability design:The compact and durable design structure is suitable for use in harsh industrial environments,with good anti-interference ability and stability,and can adapt to harsh conditions in industrial sites such as high temperature,humidity,and vibration.
Working principle:If the S800 I/O module loses contact with the Advant controller 450 for any reason,it will enter”local mode”.In this mode,it will keep the output signal at the most recent correct value or the predetermined value selected by the user.These safe valuesare set in the Advant controller 450 database and transmitted to the device at startup.When the connection is re-established,normal operation will be restored.
Mechanical characteristics:
Highly modular:The mechanical structure is highly modular and consists of four basic parts:communication interface module,optical module bus modem,I/O module and field wiring terminal unit(MTU).Communication interface modules,optical module bus modems and MTUs are mounted on standard DIN mounting rails in accordance with DIN EN 50033-35*15.
Protection class IP20:All modules are injection molded plastic housings with protection class IP20 according to IEC 529.
Mechanical anti-misinsertion:I/O modules have mechanical keying devices to prevent the module from being inserted into a position that is different from the key code set by the I/O module factory.The key of the MTU is set to the same key code as its I/O module to avoid damage to the module due to misinsertion.
