描述
一、核心功能与定位
类型：双通道轴相对振动监测器，专为工业旋转机械设计，符合API 670标准，用于实时监测轴的相对振动并提供保护功能。
核心功能：
振动监测：通过涡流或差分传感器测量轴相对于轴承箱的振动，支持X/Y双通道独立或组合监测。
保护与报警：比较振动参数与设定阈值，触发报警并驱动继电器，防止设备故障。
自检功能：监测硬件、电源、传感器及电缆状态，确保系统可靠性。
二、技术参数
硬件规格
尺寸与安装：3U高度、单插槽模块，机柜空间需求比传统四通道6U卡减少50%。
电源隔离：传感器电源与系统电源电隔离，抗干扰能力强。
输入参数：
传感器类型：涡流、差分（兼容艾默生部件号6422/6423/6424/6425）。
输入频率范围：下限1或5 Hz，上限50-2000 Hz可调。
输入电压范围：0至-22 VDC，输入电阻>100 kΩ。
输出与通信
模拟输出：0/4-20 mA、0-10 V比例输出。
继电器输出：支持远程跳闸旁路和限值倍增功能。
通信接口：可选Modbus通信模块（如A6824），支持与控制系统集成。
测量模式
模式选择：热配置、零到峰值、峰值到峰值、组合最大峰值（DIN 45670A/B、VDI 2059标准）。
延迟与滞后：报警延迟0-5秒（扩展至0-36秒），支持信号下降时的滞后保护。

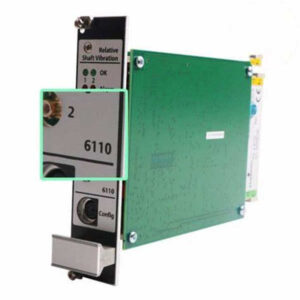

A6110 9199-00001
A6110 9199-00001
1.Core functions and positioning
Type:Dual-channel shaft relative vibration monitor,designed for industrial rotary machinery,complies with API 670 standards,for real-time monitoring of relative vibration of shafts and providing protection.
Core functions:
Vibration monitoring:The vibration of the shaft relative to the bearing box is measured by eddy current or differential sensors,and supports X/Y dual-channel independent or combined monitoring.
Protection and Alarm:Compare vibration parameters with set thresholds,trigger alarms and drive relays to prevent equipment failure.
Self-test function:Monitor the status of hardware,power supply,sensors and cables to ensure system reliability.
2.Technical parameters
Hardware specifications
Size and installation:3U height,single-slot module,cabinet space requirements are 50%reduced compared to traditional four-channel 6U cards.
Power supply isolation:The sensor power supply is electrically isolated from the system power supply,and has strong anti-interference ability.
Enter parameters:
Sensor type:Eddy current,differential(compatible with Emerson part number 6422/6423/6424/6425).
Input frequency range:Lower limit 1 or 5 Hz,upper limit 50-2000 Hz adjustable.
Input voltage range:0 to-22 VDC,input resistance>100 kΩ.
Output and communication
Analog output:0/4-20 mA,0-10 V scale output.
Relay output:Supports remote trip bypass and limit multiplication functions.
Communication interface:Optional Modbus communication module(such as A6824),supports integration with the control system.
Measurement mode
Mode selection:thermal configuration,zero to peak,peak to peak,combined maximum peak(DIN 45670A/B,VDI 2059 standard).
Delay and Hysteresis:The alarm delay is 0-5 seconds(expanded to 0-36 seconds),supporting hysteresis protection when the signal drops.
