EPRO MMS6350

RS232接口:用于本地参数输入和通过PC进行配置。

RS485接口:用于与上位机或其他模块进行数据交换。

PROFIBUS-DP接口(可选):部分型号(如MMS6350/DP)集成了PROFIBUS-DP接口,可以实现高速数据交换,并无缝集成到现有的工业控制系统中。通过PROFIBUS-DP,可以传输当前速度、缩放速度、机器加速度、最大速度、旋转方向、传感器断线、传感器短路、间隙值以及功能输出的切换状态等信息。

冗余电源:监测器和背板均支持冗余电源输入,提高了系统的可靠性和可用性。

动态输出:可以将处理后的输入脉冲输出为TTL脉冲或通过无电位光耦输出,方便与其他设备集成。

集成峰值记忆:系统包含一个集成峰值记忆功能,可以记录机器停机前出现的最高速度值。这为评估因超速引起的机械负载提供了重要信息。

分类: 品牌:

描述

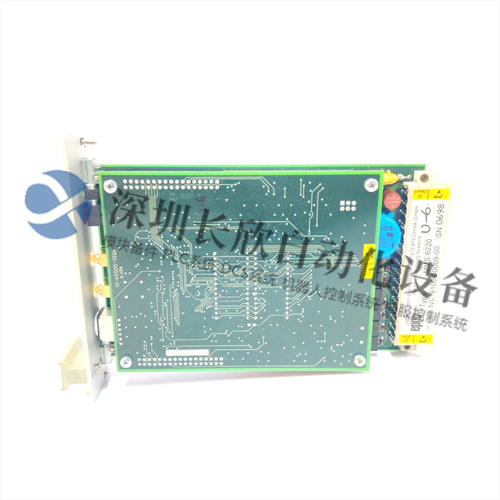

EPRO MMS6350是一款数字超速保护系统(DOPS)模块,主要用于精确测量旋转机械的速度,并提供针对超速情况的保护,以防止设备损坏和保障人员安全。它广泛应用于电力、石化、制造等关键工业领域,尤其是对涡轮机、压缩机和发电机等高速旋转设备的监测和保护。

主要功能与特点

三通道测量系统:MMS6350采用基于微控制器的三通道测量系统,从信号检测到信号处理再到测量速度的评估,都采用一致的三通道设计。这为被监测的机器提供了最高的安全性,尤其是在安全相关的超速限值方面,通常会通过2-out-of-3(2oo3)逻辑进行处理,确保了高度的可靠性和故障安全性。

高安全等级:

SIL3认证:部分型号(如DOPS和DOPS AS)经过SIL3认证(根据DIN EN 61508),表示其符合最高的功能安全等级,适用于关键安全应用。

密码保护:每个监测器都具备密码保护功能,增加了系统的安全性。

多限值报警:每个通道最多可配置6个限值,可以根据不同的运行模式设置不同的操作模式。这些限值可用于超速报警或跳闸,并通常以无电位继电器触点或短路保护的+24V电压输出形式提供。

灵活的电流输出:每个通道提供两个电流输出(例如0/4-20mA),带有缩放(zoom)和双电流功能,其中一个通常是电气隔离的。这些输出可用于将速度信号传输到DCS、PLC或其他监控系统。

互检与自检:

脉冲和输出信号互检:各通道之间会相互检查和监控脉冲和输出信号,以确保数据一致性。

扩展故障检测:系统包含扩展的故障检测功能,持续检查三个速度传感器是否在允许范围内运行。如果内部故障检测电路发现错误,将通过输出触点指示,并在显示屏上显示纯文本消息,便于故障诊断。

通信接口:

RS232接口:用于本地参数输入和通过PC进行配置。

RS485接口:用于与上位机或其他模块进行数据交换。

PROFIBUS-DP接口(可选):部分型号(如MMS6350/DP)集成了PROFIBUS-DP接口,可以实现高速数据交换,并无缝集成到现有的工业控制系统中。通过PROFIBUS-DP,可以传输当前速度、缩放速度、机器加速度、最大速度、旋转方向、传感器断线、传感器短路、间隙值以及功能输出的切换状态等信息。

冗余电源:监测器和背板均支持冗余电源输入,提高了系统的可靠性和可用性。

动态输出:可以将处理后的输入脉冲输出为TTL脉冲或通过无电位光耦输出,方便与其他设备集成。

集成峰值记忆:系统包含一个集成峰值记忆功能,可以记录机器停机前出现的最高速度值。这为评估因超速引起的机械负载提供了重要信息。

物理特性:

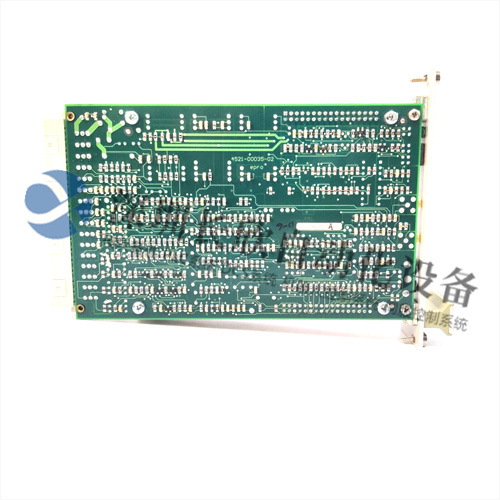

通常为电路板/EURO卡格式(100 x 160 mm),设计用于安装在19英寸机架中。

尺寸和重量紧凑,方便集成。

应用:主要用于测量旋转机器的速度并防止超速,尤其是在需要替换老式机械超速保护系统的场合,以及与安全切断阀配合使用,实现关键设备的保护。

The EPRO MMS6350 is a digital overspeed protection system(DOPS)module designed to accurately measure the speed of rotating machinery and provide protection against overspeed conditions to prevent equipment damage and personnel safety.It is widely used in key industrial fields such as power,petrochemical,and manufacturing,especially for monitoring and protecting high-speed rotating equipment such as turbines,compressors,and generators.

Main functions and features

Three-channel measurement system:The MMS6350 uses a microcontroller-based three-channel measurement system with a consistent three-channel design from signal detection to signal processing to the evaluation of the measured speed.This provides the highest safety for the monitored machine,especially in terms of safety-related overspeed limits,which are usually processed through 2-out-of-3(2oo3)logic,ensuring high reliability and fail-safety.

High safety level:

SIL3 certified:Some models,such as DOPS and DOPS AS,are SIL3 certified(according to DIN EN 61508),indicating that they meet the highest functional safety level and are suitable for critical safety applications.

Password protection:Each monitor is password protected,which increases the security of the system.

Multi-limit alarm:Each channel can be configured with up to 6 limits,which can be set according to different operating modes.These limits can be used for overspeed alarm or tripping,and are usually provided in the form of potential-free relay contacts or short-circuit protected+24V voltage output.

Flexible current output:Each channel provides two current outputs(e.g.0/4-20mA)with zoom and dual current functions,one of which is usually electrically isolated.These outputs can be used to transmit speed signals to DCS,PLC or other monitoring systems.

Mutual and self-checking:

Pulse and output signal mutual check:Pulse and output signals are checked and monitored between channels to ensure data consistency.

Extended fault detection:The system includes extended fault detection functions,which continuously check whether the three speed sensors are operating within the allowable range.If the internal fault detection circuit finds an error,it will be indicated by the output contacts and a plain text message will be displayed on the display to facilitate fault diagnosis.

Communication interface:

RS232 interface:For local parameter input and configuration via PC.

RS485 interface:For data exchange with host computer or other modules.

PROFIBUS-DP interface(optional):Some models(such as MMS6350/DP)integrate PROFIBUS-DP interface,which can realize high-speed data exchange and seamlessly integrate into existing industrial control systems.Through PROFIBUS-DP,information such as current speed,scaling speed,machine acceleration,maximum speed,rotation direction,sensor break,sensor short circuit,gap value and switching status of functional output can be transmitted.

Redundant power supply:Both the monitor and the backplane support redundant power supply input,which improves the reliability and availability of the system.

Dynamic output:The processed input pulse can be output as TTL pulse or through potential-free optocoupler output,which is convenient for integration with other devices.

Integrated peak memory:The system includes an integrated peak memory function,which can record the highest speed value before the machine stops.This provides important information for evaluating the mechanical load caused by overspeed.

Physical features:

Typically in circuit board/EURO card format(100 x 160 mm),designed to be mounted in a 19-inch rack.

Compact size and weight for easy integration.

Applications:Mainly used to measure the speed of rotating machines and prevent overspeed,especially where it is necessary to replace old mechanical overspeed protection systems,and in conjunction with safety shut-off valves to protect critical equipment.
