EPRO MMS6410

频率范围:处理频率范围通常高达100 Hz(-3dB)的信号。

零点调整:允许为每个通道进行独立的零点调整和零点漂移,无论选择的测量范围如何。

传感器电源:提供平衡对地传感器电源,以抑制工业干扰。

输出信号:

模拟输出:提供两路独立的传感器信号输出(例如±12 V),与传感器信号成比例,通常通过前面板上的SMB插座输出。

电流输出:也可提供隔离电流输出(例如0/4-20mA),以便与DCS、PLC或其他控制/监控系统集成。

通信接口:

RS232接口:位于模块正面,用于本地配置并通过PC读取测量结果。

RS485接口:用于连接主机或EPRO的MMS 6800分析和诊断系统。

分类: 品牌:

描述

主要特性和规格

双通道设计:具有两个独立的测量通道,可同时监测两个不同的点或参数。

传感器兼容性:主要用于半桥、全桥或差分变压器配置的电感式位移传感器(例如EPRO PR 9350系列、PR 642x系列、PR 9376系列)。

测量功能:

测量与位移、位置、角度、力和扭转相关的静态和动态信号。

可计算两个通道的和值和差值,适用于轴偏心或相对膨胀等应用。

信号处理:

频率范围:处理频率范围通常高达100 Hz(-3dB)的信号。

零点调整:允许为每个通道进行独立的零点调整和零点漂移,无论选择的测量范围如何。

传感器电源:提供平衡对地传感器电源,以抑制工业干扰。

输出信号:

模拟输出:提供两路独立的传感器信号输出(例如±12 V),与传感器信号成比例,通常通过前面板上的SMB插座输出。

电流输出:也可提供隔离电流输出(例如0/4-20mA),以便与DCS、PLC或其他控制/监控系统集成。

通信接口:

RS232接口:位于模块正面,用于本地配置并通过PC读取测量结果。

RS485接口:用于连接主机或EPRO的MMS 6800分析和诊断系统。

诊断功能:

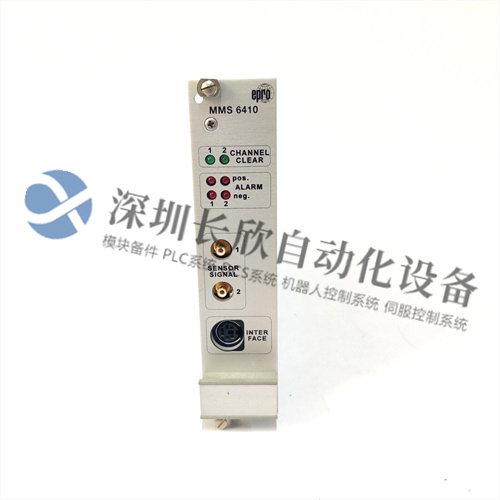

LED指示灯:前面板上的LED指示灯用于指示每个通道的通道状态(“通道清除”)和报警状态(预报警、主报警)。

自检功能:具有扩展的自检功能和内置的传感器自检功能,可监控模块和所连接传感器的健康状况。

物理特性:

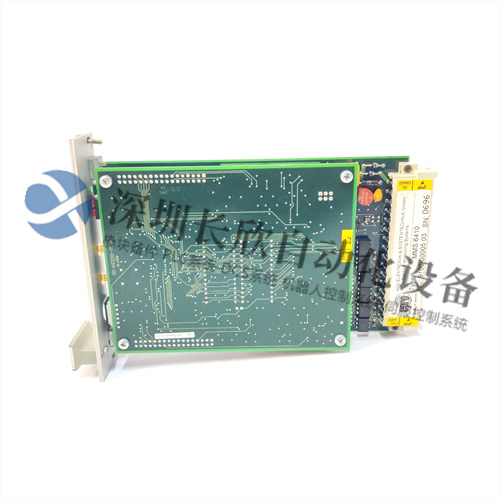

外形尺寸:通常为插卡式(例如,EURO卡格式,100 x 160毫米),设计用于插入MMS 6000机架系统。

尺寸:约16厘米x 16厘米x 12厘米(或类似尺寸),重量约为0.3千克至0.8千克,具体取决于具体型号。

电源:采用标称24V直流电源供电,通常由MMS 6000机架背板供电。

Key Features and Specifications

Dual-Channel Design:It features two independent measuring channels,allowing simultaneous monitoring of two different points or parameters.

Sensor Compatibility:Primarily designed for inductive displacement sensors(e.g.,EPRO PR 9350 series,PR 642x series,PR 9376 series)in half-bridge,full-bridge,or differential transformer configurations.

Measurement Capabilities:

Measures static and dynamic signals related to displacement,position,angles,forces,and torsions.

Can calculate sum and difference values from the two channels,useful for applications like shaft eccentricity or relative expansion.

Signal Processing:

Frequency Range:Processes signals with a frequency range typically up to 100 Hz(-3dB).

Zero Adjustment:Allows for independent zero adjustment and zero shift for each channel,regardless of the chosen measuring range.

Sensor Supply:Provides a balanced-to-ground sensor supply to suppress industrial disturbances.

Output Signals:

Analog Outputs:Provides two independent sensor signal outputs(e.g.,±12 V)proportional to the sensor signals,often available at SMB sockets on the front panel.

Current Outputs:Can also provide isolated current outputs(e.g.,0/4-20mA)for integration with DCS,PLC,or other control/monitoring systems.

Communication Interfaces:

RS232 Interface:Located on the front of the module for local configuration and reading out measurement results via a PC.

RS485 Interface:For connection to a host computer or EPRO’s MMS 6800 analysis and diagnosis system.

Diagnostic Features:

LED Indicators:Includes LEDs on the front panel to indicate channel status(“Channel Clear”)and alarm states(pre-alarm,main alarm)for each channel.

Self-Check Function:Features expanded self-check and built-in sensor self-check functions to monitor the health of the module and connected sensors.

Physical Characteristics:

Form Factor:Typically a plug-in card(e.g.,EURO card format,100 x 160 mm)designed for insertion into the MMS 6000 rack system.

Dimensions:Approximately 16cm x 16cm x 12cm(or similar),with a weight around 0.3kg to 0.8kg,depending on the specific variant.

Power Supply:Operates on a nominal 24V DC power supply,typically from the MMS 6000 rack’s backplane.
