描述

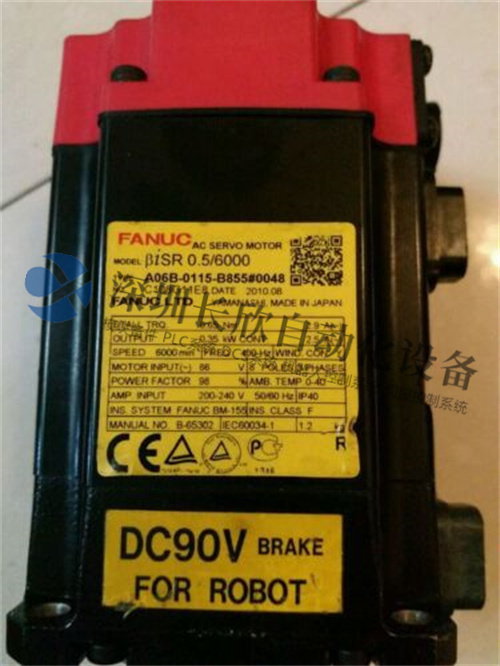

FANUC A06B-0115-B855#0048是FANUC Beta iS系列交流伺服电机，具体型号为BiSR 0.5/6000。它是一款高可靠性和高精度电机，专为各种工业自动化应用而设计，尤其适用于数控机床和机器人。
主要特性和规格
类型：交流伺服电机（型号Beta iS R 0.5/6000）。“BiSR”表示它属于Beta iS系列，该系列以良好的性价比而闻名。
性能等级：
额定输出：通常约为0.35 kW（或0.5 HP）。
额定转速：专为高速运行而设计，最高转速为6000 RPM。
堵转扭矩：约2.9 Nm。
额定电流：约2.5 A。
轴配置：采用带键槽的直轴，安装简便牢固，最大限度地减少滑移，确保与驱动设备连接时性能稳定。
集成制动器：包含一个90V直流制动器(XGMF-20561)。该制动器可在必要时快速停止并保持轴的旋转，防止不必要的运动并提高安全性。
内置编码器：配备内置脉冲编码器（编码器），可为伺服放大器和CNC控制器提供精确的位置和速度反馈。这种高分辨率反馈对于精确的运动控制至关重要。
紧凑设计：Beta iS电机以其紧凑的尺寸而闻名，非常适合空间有限的应用。
高可靠性：这些电机由FANUC制造，经久耐用，可在严苛的工业环境中持续运行，并具有最大程度减少维护的特点。
兼容性：旨在与FANUC CNC控制器和FANUC Beta iS伺服放大器无缝协作。
应用
FANUC A06B-0115-B855#0048伺服电机广泛应用于需要精确动态运动控制的应用领域。常见用途包括：
数控机床：控制铣床、车床、磨床和加工中心中的各种轴(X、Y、Z、A、B、C)。
工业机器人：为机器人轴提供精确运动，从而完成物料搬运、焊接和装配等任务。
自动化生产线：驱动传送带、传输机构和其他运动部件。
包装机械：在包装过程中实现精确且可重复的运动。
The FANUC A06B-0115-B855#0048 is an AC Servo Motor from FANUC’s Beta iS series,specifically a BiSR 0.5/6000 model.It’s a highly reliable and precise motor designed for various industrial automation applications,particularly in CNC machinery and robotics.
Key Features and Specifications
Type:AC Servo Motor(Model Beta iS R 0.5/6000).The”BiSR”indicates it’s part of the Beta iS series,known for a good performance-to-cost ratio.
Performance Rating:
Rated Output:Typically around 0.35 kW(or 0.5 HP).
Rated Speed:Designed for high-speed operation,with a maximum speed of 6000 RPM.
Stall Torque:Approximately 2.9 Nm.
Rated Current:Around 2.5 A.
Shaft Configuration:Features a straight shaft with a keyway,which provides easy and secure installation,minimizing slippage and ensuring consistent performance when connecting to driven equipment.
Integrated Brake:Includes a 90V DC brake(XGMF-20561).This brake allows for quick stopping and holding of the shaft’s rotation when necessary,preventing unwanted movements and enhancing safety.
Built-in Encoder:Equipped with a built-in pulse coder(encoder)for precise position and speed feedback to the servo amplifier and CNC controller.This high-resolution feedback is crucial for accurate motion control.
Compact Design:Beta iS motors are known for their compact size,making them suitable for applications where space is limited.
High Reliability:Manufactured by FANUC,these motors are built for durability and continuous operation in demanding industrial environments,with features that minimize maintenance.
Compatibility:Designed to work seamlessly with FANUC CNC controls and FANUC Beta iS servo amplifiers.
Applications
The FANUC A06B-0115-B855#0048 servo motor is widely used in applications requiring precise and dynamic motion control.Common uses include:
CNC Machine Tools:Controlling various axes(X,Y,Z,A,B,C)in milling machines,lathes,grinding machines,and machining centers.
Industrial Robotics:Providing precise movement for robot axes,enabling tasks like material handling,welding,and assembly.
Automated Production Lines:Driving conveyors,transfer mechanisms,and other motion components.
Packaging Machinery:For accurate and repeatable movements in packaging processes.
