描述

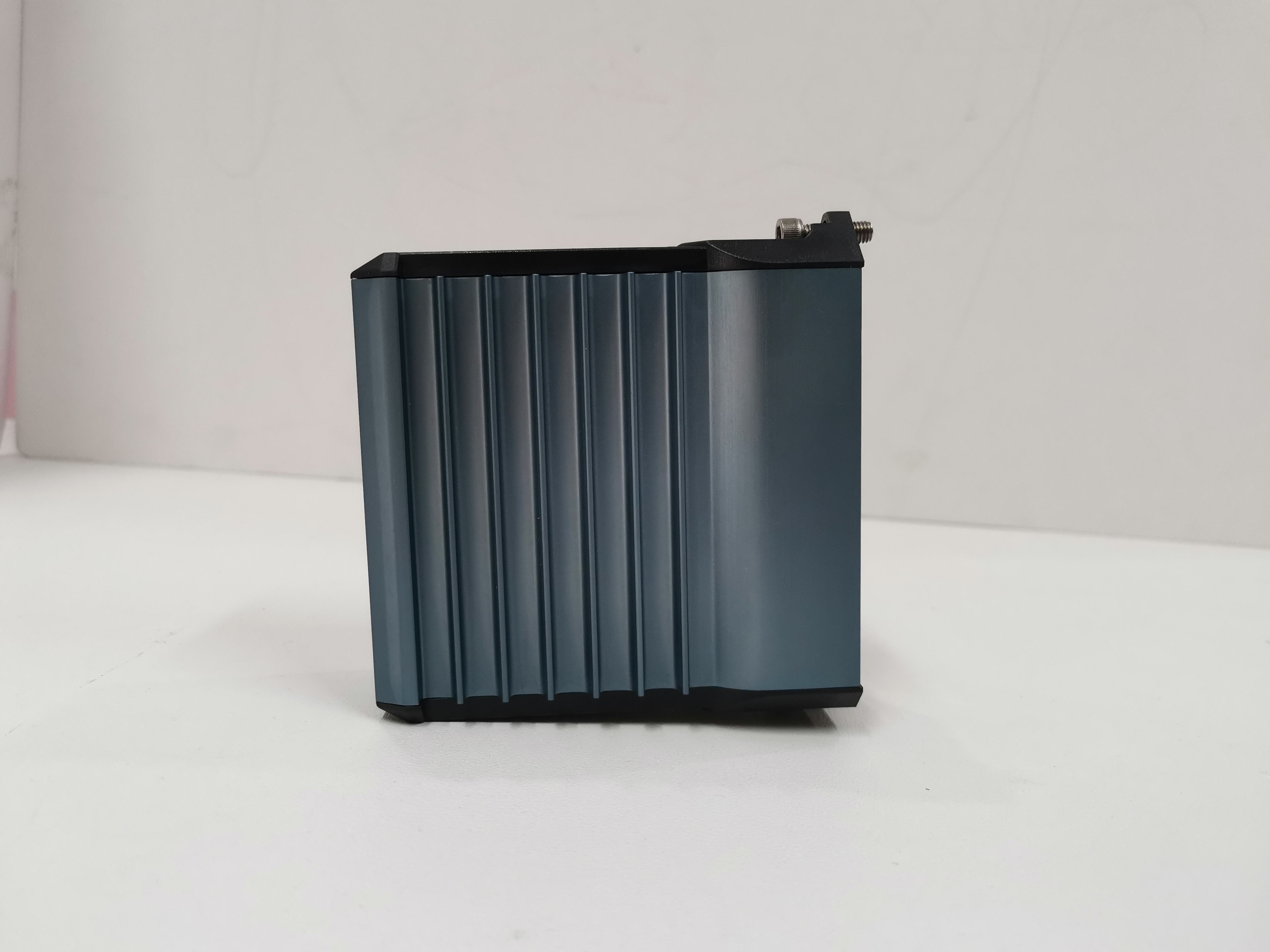

FOXBORO FCP270是施耐德电气旗下福克斯波罗公司推出的一款高性能现场控制处理器，专为工业自动化和过程控制系统设计，广泛应用于石油、化工、电力等严苛工业环境。以下是其核心功能、技术参数及应用场景的综合分析：
一、产品概述
FCP270是一款分布式、可选容错的现场安装控制器模块，属于Foxboro I/A系列或Foxboro Evo控制系统的一部分。其核心作用包括：
过程控制：执行调节、逻辑、定时和顺序控制，支持模拟量和数字量信号处理。
数据采集与报警：实时采集现场数据并检测异常，触发报警通知操作人员。
兼容性：支持多种现场总线模块（FBM），可与200系列、100系列FBM集成，无需额外通信模块。
二、技术参数
硬件配置
-内存：16MB SDRAM+32MB闪存
-输入电压：24V DC（冗余供电）
-功耗：单模块最大8.5W
-尺寸与重量：14.7cm×5.15cm×11.4cm，重量0.6kg
-工作温度：0℃～60℃（可扩展至G3级恶劣环境）
-防护认证：CE认证，无需专用机柜即可现场安装。
接口与通信
-网络连接：标准光纤100Mbps以太网，支持Foxboro Evo控制网络
-现场总线：HDLC协议（2Mbps或268 Kbps），兼容FBI200/FBI100扩展模块
-协议支持：Modbus、Profibus、FOUNDATION Fieldbus等（需结合FBM配置）。
三、核心功能与优势
容错技术
-双模块冗余：通过两个独立模块并行运行，实现位对位数据校验，故障时无缝切换，避免向现场发送错误指令
-在线升级：支持在不中断过程的情况下更新控制器固件
-同步性：主副模块数据实时同步，确保切换时无数据丢失。
扩展性与灵活性
-I/O支持：最多连接32个200系列FBM（或通过FEM100扩展至128个）、64个100系列FBM
-编程能力：支持多种控制算法（如PID），兼容I/A Series软件v8.4-v8.8或Foxboro Evo控制核心服务v9.0+
-时间同步：可选GPS卫星时间同步，确保系统时钟精确性。
工业级设计
-外壳：压铸铝材质，无风扇设计，适应不通风机柜环境
-抗干扰：通过CE认证，电磁兼容性（EMC）符合工业标准。
四、应用场景
FCP270广泛应用于以下领域：
石油化工：炼油、石化产品生产过程控制，如温度、压力调节
电力能源：发电机组监控、智能电网数据采集
水处理：废水处理系统流量控制、水质监测
制造业：食品饮料生产线自动化、制药工艺参数管理
交通与建筑：交通信号控制、楼宇暖通空调（HVAC）系统优化。
FOXBORO FCP270 is a high-performance field control processor launched by Foxboro,a subsidiary of Schneider Electric.It is designed for industrial automation and process control systems and is widely used in harsh industrial environments such as petroleum,chemical,and power.The following is a comprehensive analysis of its core functions,technical parameters,and application scenarios:
I.Product Overview
FCP270 is a distributed,optionally fault-tolerant field-mounted controller module that is part of the Foxboro I/A series or Foxboro Evo control system.Its core functions include:
Process control:performs regulation,logic,timing,and sequence control,and supports analog and digital signal processing.
Data acquisition and alarm:real-time collection of field data and detection of anomalies,triggering alarms to notify operators.
Compatibility:supports a variety of fieldbus modules(FBMs)and can be integrated with 200 series and 100 series FBMs without the need for additional communication modules.
2.Technical Parameters
Hardware Configuration
-Memory:16MB SDRAM+32MB Flash
-Input Voltage:24V DC(Redundant Power Supply)
-Power Consumption:Maximum 8.5W per module
-Dimensions and Weight:14.7cm×5.15cm×11.4cm,Weight 0.6kg
-Operating Temperature:0℃～60℃(Can be expanded to G3 harsh environment)
-Protection Certification:CE certification,can be installed on site without a dedicated cabinet.
Interface and Communication
-Network Connection:Standard Fiber Optic 100Mbps Ethernet,Supports Foxboro Evo Control Network
-Fieldbus:HDLC protocol(2Mbps or 268 Kbps),compatible with FBI200/FBI100 expansion modules
-Protocol Support:Modbus,Profibus,FOUNDATION Fieldbus,etc.(need to be combined with FBM configuration).
3.Core functions and advantages
Fault-tolerant technology
-Dual module redundancy:Two independent modules run in parallel to achieve bit-to-bit data verification,seamless switching in case of failure,and avoid sending wrong instructions to the site
-Online upgrade:Supports updating controller firmware without interrupting the process
-Synchronicity:Real-time synchronization of primary and secondary module data to ensure no data loss during switching.
Scalability and flexibility
-I/O support:Up to 32 200 series FBMs(or expanded to 128 through FEM100),64 100 series FBMs
-Programming capabilities:Supports multiple control algorithms(such as PID),compatible with I/A Series software v8.4-v8.8 or Foxboro Evo control core service v9.0+
-Time synchronization:Optional GPS satellite time synchronization to ensure system clock accuracy.
Industrial-grade design
-Shell:die-cast aluminum,fanless design,suitable for non-ventilated cabinet environment
-Anti-interference:CE certified,electromagnetic compatibility(EMC)meets industrial standards.
IV.Application scenarios
FCP270 is widely used in the following fields:
Petrochemical:oil refining,petrochemical product production process control,such as temperature and pressure regulation
Electric power:generator set monitoring,smart grid data acquisition
Water treatment:wastewater treatment system flow control,water quality monitoring
Manufacturing:food and beverage production line automation,pharmaceutical process parameter management
Transportation and construction:traffic signal control,building HVAC system optimization.
