描述

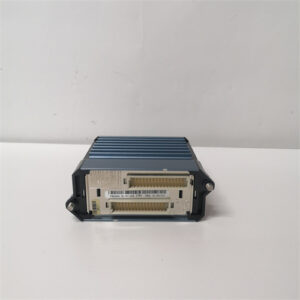

Foxboro ZCP270是一款高性能、可选容错的工业控制处理器模块，专为分布式控制系统（DCS）设计，广泛应用于石油、化工、电力等复杂工业场景。以下是其核心功能与技术特性的综合概述：
一、核心功能与控制能力
分布式控制与容错设计
-容错版本：由两个单宽处理器模块组成，通过高速通信连接器实现冗余运行。在主模块故障时，副模块无缝接管，确保系统连续性。
-容错优势：
-数据位位匹配校验，防止错误信息输出；
-副模块实时同步主模块状态，切换时无数据丢失；
-预先检测潜在缺陷，避免突发故障。
现场总线支持
-支持200系列和100系列现场总线模块（FBM），通过FCM100E/FCM100Et通信模块连接，最多可扩展至128个200系列FBM或64个100系列FBM。
-同时兼容2 Mbps和268 Kbps HDLC现场总线协议，支持混合布线场景。
控制与数据处理
-执行调节、逻辑、定时和顺序控制，适用于温度、压力、液位等工艺参数管理。
-支持数据采集、报警检测及通知，可通过GPS实现时间同步。
二、技术参数与环境适应性
硬件规格
-外壳设计：压铸铝材质，无需通风，通过CE认证，适用于G3级恶劣环境。
-安装方式：支持DIN导轨、面板或桌面安装，兼容-40℃至80℃宽温范围。
-电源保护：支持10-30V DC输入，具备反极性、过流及电涌保护。
通信接口
-以太网：10/100 Mbps铜缆接口，支持自动MDI/MDI-X交叉及全双工流量控制。
-现场总线：通过FCM100Ets/FCM100Es模块连接MESH控制网络。
三、系统集成与扩展性
架构兼容性
-无缝集成于Foxboro Evo架构，仅需工作站、以太网交换机及现场机柜，简化系统部署。
-支持与CP30B、CP40B、MicroI/A等控制站协同工作。
编程与维护
-使用I/A Series软件（v8.4-v8.8）或Foxboro Evo ControlCore Services（v9.0+）进行配置。
-支持在线图像更新，无需停止工艺流程。
四、典型应用场景
工业自动化：化工、石油天然气、电力、制药等行业的过程控制。
环境监测：水质、大气参数的实时采集与分析。
智能建筑：暖通空调、安防系统的自动化管理。
交通控制：信号灯、车辆调度的高可靠性控制。
Foxboro ZCP270 is a high-performance,optional fault-tolerant industrial control processor module designed for distributed control systems(DCS)and widely used in complex industrial scenarios such as petroleum,chemical,and power.The following is a comprehensive overview of its core functions and technical features:
I.Core functions and control capabilities
Distributed control and fault-tolerant design
-Fault-tolerant version:consists of two single-width processor modules,which realize redundant operation through high-speed communication connectors.When the main module fails,the secondary module takes over seamlessly to ensure system continuity.
-Fault-tolerant advantages:
-Data bit-by-bit matching check to prevent erroneous information output;
-The secondary module synchronizes the status of the main module in real time,and there is no data loss during switching;
-Pre-detect potential defects to avoid sudden failures.
Fieldbus support
-Supports 200 series and 100 series fieldbus modules(FBM),connected through FCM100E/FCM100Et communication modules,and can be expanded to up to 128 200 series FBMs or 64 100 series FBMs.
-Compatible with both 2 Mbps and 268 Kbps HDLC fieldbus protocols,supporting mixed wiring scenarios.
Control and data processing
-Performs regulation,logic,timing and sequence control,suitable for process parameter management such as temperature,pressure,and liquid level.
-Supports data acquisition,alarm detection and notification,and can achieve time synchronization through GPS.
2.Technical parameters and environmental adaptability
Hardware specifications
-Shell design:die-cast aluminum material,no ventilation required,CE certified,suitable for G3 level harsh environment.
-Installation method:supports DIN rail,panel or desktop installation,compatible with a wide temperature range of-40℃to 80℃.
-Power protection:supports 10-30V DC input,with reverse polarity,overcurrent and surge protection.
Communication interface
-Ethernet:10/100 Mbps copper cable interface,supports automatic MDI/MDI-X crossover and full-duplex flow control.
-Fieldbus:connect to the MESH control network through the FCM100Ets/FCM100Es module.
3.System Integration and Scalability
Architecture Compatibility
-Seamless integration into the Foxboro Evo architecture,requiring only a workstation,Ethernet switch and field cabinet to simplify system deployment.
-Supports collaboration with control stations such as CP30B,CP40B,MicroI/A,etc.
Programming and Maintenance
-Use I/A Series software(v8.4-v8.8)or Foxboro Evo ControlCore Services(v9.0+)for configuration.
-Supports online image updates without stopping the process.
4.Typical Application Scenarios
Industrial Automation:Process control in the chemical,oil and gas,power,pharmaceutical and other industries.
Environmental Monitoring:Real-time collection and analysis of water quality and atmospheric parameters.
Smart Buildings:Automated management of HVAC and security systems.
Traffic Control:High-reliability control of signal lights and vehicle dispatching.
