描述
一、产品概述

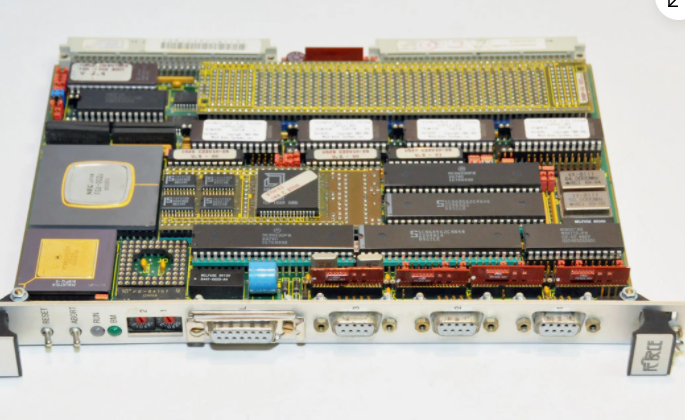

FRCE CPU-30ZBE是弗劳尔斯（Force）公司推出的工业级主控制器中央单元，属于I/A系列，基于MC68030微处理器和VME总线架构设计。其核心功能为工业控制系统和自动化设备提供高性能计算与稳定控制能力，适用于高可靠性要求的场景。
二、核心功能与特点
高性能处理器
MC68030微处理器：主频25 MHz，支持68020兼容整数单元，兼容向上用户对象代码。
增强型浮点协处理器68882：提升复杂计算任务的效率，适用于数据密集型应用。
内存与寻址
双256字节片上高速缓存：独立的数据和指令缓存，优化指令执行速度。
4 GB寻址范围：支持大容量数据处理与多任务调度。
内存管理单元（MMU）：提供独立的数据和指令内存管理，增强系统稳定性。
总线与扩展性
VME总线接口：支持高带宽同步总线，兼容工业自动化设备的通信需求。
FORCE门阵列FGA-002：集成逻辑控制与数据处理功能，提升系统集成度。
接口与兼容性
多协议支持：兼容68020用户代码，便于现有系统的升级与扩展。
多种输入输出接口：支持定制化连接，满足不同工业场景需求。
三、技术参数
参数类别具体规格
处理器MC68030（25 MHz）+68882浮点协处理器
缓存指令和数据双256字节片上高速缓存
内存管理独立的数据和指令内存管理单元（MMU）
寻址范围4 GB
总线接口VME总线（高带宽同步）
协处理器增强型浮点协处理器68882
门阵列FORCE门阵列FGA-002
工作环境工业级设计，适应宽温域与抗干扰场景
1.Product Overview
The FRCE CPU-30ZBE is an industrial-grade main controller central unit launched by Force.It belongs to the I/A series and is based on the MC68030 microprocessor and VME bus architecture design.Its core functions are industrial control systems and automation equipment to provide high-performance computing and stable control capabilities,suitable for scenarios with high reliability requirements.
2.Core functions and features
High-performance processor
MC68030 microprocessor:main frequency 25 MHz,supports 68020 compatible integer units,compatible with upward user object code.
Enhanced floating point coprocessor 68882:Improves the efficiency of complex computing tasks,suitable for data-intensive applications.
Memory and addressing
Double 256-byte on-chip cache:independent data and instruction cache,optimize instruction execution speed.
4 GB addressing range:Supports large-capacity data processing and multi-task scheduling.
Memory management unit(MMU):Provides independent data and instruction memory management to enhance system stability.
Bus and scalability
VME bus interface:supports high bandwidth synchronous bus,compatible with the communication requirements of industrial automation equipment.
FORCE gate array FGA-002:Integrate logic control and data processing functions to improve system integration.
Interface and compatibility
Multi-protocol support:compatible with 68020 user code,which facilitates the upgrade and expansion of existing systems.
Multiple input and output interfaces:support customized connections to meet the needs of different industrial scenarios.
3.Technical parameters
Parameter category Specific specifications
Processor MC68030(25 MHz)+68882 floating point coprocessor
Cache Instructions and data double 256-byte on-chip cache
Memory Management Independent Data and Instruction Memory Management Unit(MMU)
Addressing range 4 GB
Bus interface VME bus(high bandwidth synchronization)
Coprocessor Enhanced floating point coprocessor 68882
Gate Array FORCE Gate Array FGA-002
Working environment Industrial-grade design,adapted to wide temperature range and anti-interference scenarios
