描述

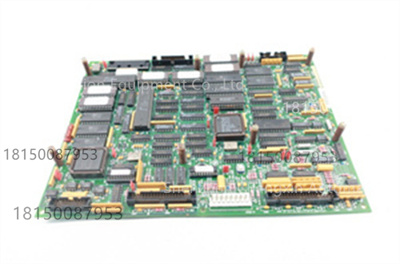

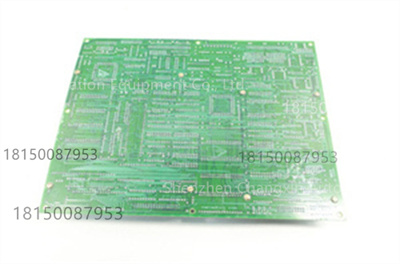

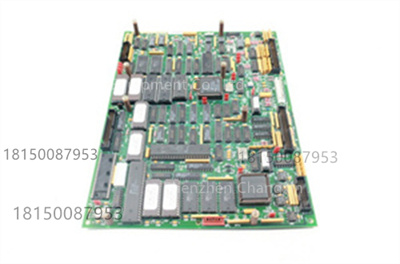

GE 531X301DCCAFG2是通用电气（GE）专为工业自动化和电力系统设计的驱动控制板，属于GE Fanuc 90-30 PLC系列的核心组件，主要用于电机控制、信号处理及复杂工业过程的实时监控。以下是基于行业经验和公开资料的综合解析：
一、核心功能与技术特性
电机驱动与过程控制
作为Mark V系列驱动系统的关键模块，通过调节励磁电流实现电机速度、扭矩的精确控制（精度≤±0.5%FS），支持同步电机、异步电机等多种类型。
内置PID算法和逻辑控制功能，可处理温度、压力等模拟量信号，并通过闭环反馈动态调整参数，适应负载变化。
信号处理与通信能力
集成Intel 80186微处理器，支持梯形图（LD）和结构化文本（ST）编程，循环时间≤500μs，可执行复杂控制任务（如多轴同步）。
兼容SNP协议（GE Fanuc专用通信协议），支持与上位机（如SCADA系统）或第三方PLC（如西门子S7-300）的数据交互，实现分布式控制。
可靠性与维护设计
工业级宽温设计（-40°C至+85°C），通过IP20防护认证，适应粉尘、振动等恶劣环境。
支持热插拔功能，维护时无需停机，更换模块后自动恢复配置，减少停机时间。
电源与接口配置
输入电压：125V DC±10%或120/240V AC±10%，支持冗余电源输入（需外接冗余模块）。
提供24V DC输出为外部传感器供电，内置过流、过压保护电路，响应时间＜10μs。
接口类型：可拆卸式弹簧端子（支持快速接线），并配备状态指示灯（电源、通信、故障）。
二、技术参数与物理规格
电气特性
功耗：≤20W（满载）。
通信速率：SNP协议最高1Mbps，支持以太网扩展（需外接通信模块）。
环境适应性
抗干扰能力：通过EMC测试（EN 61000-6-2/4），可抵御变频器、电机启停等电磁干扰。
存储温度：-40°C至+85°C，湿度5%-95%（非冷凝）。
物理设计
尺寸：380mm×360mm×320mm（紧凑型DIN导轨安装）。
The GE 531X301DCCAFG2 is a drive control board designed by General Electric(GE)specifically for industrial automation and power systems.It is a core component of the GE Fanuc 90-30 PLC series and is primarily used for motor control,signal processing,and real-time monitoring of complex industrial processes.The following is a comprehensive analysis based on industry experience and publicly available information:
I.Core Functions and Technical Features
Motor Drive and Process Control
As a key module in the Mark V series drive system,it precisely controls motor speed and torque(accuracy≤±0.5%FS)by adjusting the excitation current,supporting a variety of motor types,including synchronous and asynchronous motors.
It features built-in PID algorithms and logic control functions,processing analog signals such as temperature and pressure,and dynamically adjusting parameters through closed-loop feedback to adapt to load changes.
Signal Processing and Communication Capabilities
It integrates an Intel 80186 microprocessor and supports ladder diagram(LD)and structured text(ST)programming.With a cycle time of≤500μs,it can execute complex control tasks(such as multi-axis synchronization).Compatible with the SNP protocol(GE Fanuc’s proprietary communication protocol),it supports data exchange with host computers(such as SCADA systems)or third-party PLCs(such as the Siemens S7-300)for distributed control.
Reliability and Maintenance Design
The industrial-grade wide-temperature design(-40°C to+85°C)and IP20 protection certification withstand harsh environments such as dust and vibration.
Hot-swappable functionality allows maintenance without downtime,and module replacement automatically restores the configuration,minimizing downtime.
Power Supply and Interface Configuration
Input voltage:125V DC±10%or 120/240V AC±10%,with redundant power input supported(requires an external redundancy module).
A 24V DC output is provided to power external sensors,with built-in overcurrent and overvoltage protection circuitry and a response time of<10μs.
Interface Type:Removable spring terminal blocks(supporting quick wiring)with status indicators(power,communication,and fault).II.Technical Parameters and Physical Specifications
Electrical Characteristics
Power Consumption:≤20W(full load).
Communication Rate:Up to 1Mbps using the SNP protocol,supports Ethernet expansion(requires an external communication module).
Environmental Adaptability
Interference Immunity:Passes EMC testing(EN 61000-6-2/4),protecting against electromagnetic interference from inverters,motor start/stop,and other sources.
Storage Temperature:-40°C to+85°C,Humidity:5%-95%(non-condensing).
Physical Design
Dimensions:380mm×360mm×320mm(compact DIN rail mountable).
