描述
一、产品概述

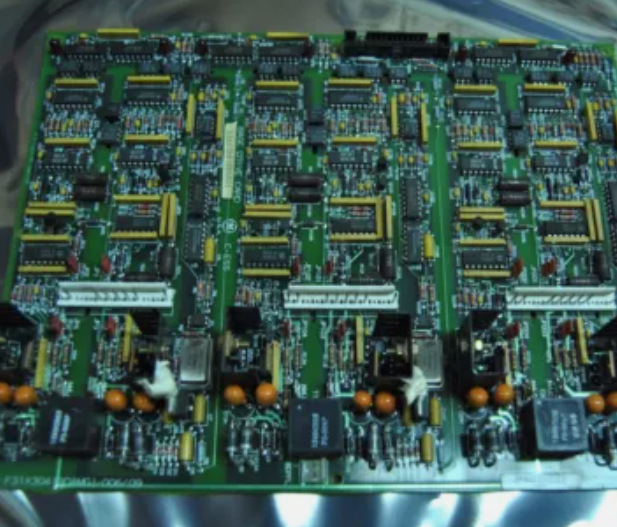

GE 531X304IBDARG1是通用电气（GE）旗下531x系列的基础驱动卡，专为GE PC系统设计，用于控制和驱动工业设备的电机、传感器及其他组件。其核心功能包括精确控制、实时监控与多设备通信，适用于机械加工、能源、制造业、交通运输、医疗设备及电信等领域。
二、核心功能与技术参数
1.硬件架构
核心组件：
晶体振荡器：3个，用于生成高精度频率信号。
通信端口：5个公端口，支持与其他电路板的数据交互。
固定结构：6个金属支架（带螺钉/螺母）及8个固定点，确保电路板稳定安装。
集成电路（IC）：定义电路板功能及通信协议。
电容器与电阻器：多种规格（如黄色小珠、橙色气球形等），用于能量存储与消散。
跳线端口：支持局部电路的开关控制。
电气规格：
额定电压：380-525 VAC
额定电流：40 A
功率：960 W
控制方式：三相交流
保护功能：过载、短路、欠电压、过热保护。
2.通信与监控
协议支持：Modbus RTU，支持与PLC、DCS系统集成。
监控功能：实时监测电流、电压、功率、频率等参数。
3.物理特性
尺寸：144mm×144mm×72mm
重量：1.8 kg
安装方式：导轨安装。
三、典型应用场景
工业自动化
驱动泵、风机、压缩机、传送带及搅拌机等设备。
能源领域
电力系统中电机控制与能源管理。
交通运输
铁路、港口设备的精准驱动控制。
医疗设备
医疗器械的电机驱动与安全监控。
电信系统
通信设备电源管理与散热控制。
1.Product Overview
GE 531X304IBDARG1 is a basic driver card of GE’s 531x series,designed for GE PC systems to control and drive motors,sensors and other components of industrial equipment.Its core functions include precise control,real-time monitoring and multi-equipment communication,and are suitable for mechanical processing,energy,manufacturing,transportation,medical equipment and telecommunications fields.
2.Core functions and technical parameters
1.Hardware architecture
Core Components:
Crystal oscillators:3,used to generate high-precision frequency signals.
Communication port:5 public ports,supporting data interaction with other circuit boards.
Fixing structure:6 metal brackets(with screws/nuts)and 8 fixing points to ensure stable installation of the circuit board.
Integrated circuit(IC):Defines circuit board functions and communication protocols.
Capacitors and resistors:a variety of specifications(such as yellow beads,orange balloons,etc.),used for energy storage and dissipation.
Jumper port:supports switching control of local circuits.
Electrical specifications:
Rated voltage:380-525 VAC
Rated current:40 A
Power:960 W
Control method:three-phase communication
Protection functions:overload,short circuit,undervoltage,overheating protection.
2.Communication and monitoring
Protocol support:Modbus RTU,supports integration with PLC and DCS systems.
Monitoring function:Real-time monitoring of current,voltage,power,frequency and other parameters.
3.Physical characteristics
Size:144mm×144mm×72mm
Weight:1.8 kg
Installation method:Rail installation.
3.Typical application scenarios
Industrial automation
Drive pumps,fans,compressors,conveyor belts and mixers and other equipment.
Energy sector
Motor control and energy management in power systems.
Transportation
Precise driving control of railway and port equipment.
Medical equipment
Motor drive and safety monitoring of medical devices.
Telecommunications System
Power management and thermal control of communication equipment.
