描述

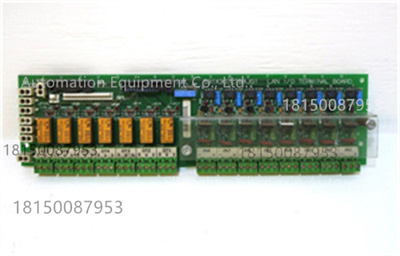

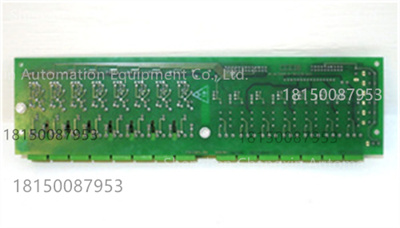

GE 531X307LTBAJG1是通用电气（GE）专为工业自动化系统设计的局域网（LAN）端子板，属于GE Fanuc 531X系列的核心组件，主要用于实现控制驱动器与外部设备之间的信号交互和网络通信。以下是基于行业经验和公开资料的综合解析：
一、核心功能与技术特性3
多协议信号接口
作为LAN终端板，该模块提供8个可配置的控制输入插头，支持2-240V AC/DC宽范围输入电压，并将其转换为24V DC逻辑信号供控制板使用。
输出端集成7个低电流/低电压Form C继电器触点，可直接驱动接触器、指示灯等外围设备，响应时间＜10ms。
支持LAN通信协议，可通过以太网或串行接口与上位机（如SCADA系统）进行数据交互，实现远程监控和故障诊断。
工业级可靠性设计
采用IP20防护等级外壳，可抵御粉尘和轻度液体飞溅，适应-40°C至+85°C的宽温工业环境。
内置过压、过流保护电路，当输入电压异常时自动切断信号传输，避免控制板损坏。
支持热插拔功能，允许在系统运行中更换模块，减少停机时间。
灵活的信号处理能力
具备信号隔离与电平转换功能，可消除地环路干扰，确保信号传输稳定性（噪声抑制比＞60dB）。
支持多设备级联，通过菊花链拓扑连接多个LAN端子板，扩展系统I/O容量。
二、技术参数与物理规格
电气特性
输入电压范围：2-240V AC/DC（自适应，支持反接保护）
输出信号：24V DC逻辑信号（最大负载0.5A/通道），继电器触点容量2A 250V AC
通信速率：LAN协议最高1Mbps，支持10/100Mbps以太网扩展（需外接通信模块）。
环境适应性
工作温度：-40°C至+85°C（工业级宽温设计）
抗干扰能力：通过EMC测试（EN 61000-6-2/4），可抵御变频器、电机启停等电磁干扰。
物理设计
尺寸：125mm×100mm×50mm（紧凑型DIN导轨安装，节省控制柜空间）
接口类型：可拆卸式弹簧端子（支持快速接线），并配备状态指示灯（电源、通信、故障）。
The GE 531X307LTBAJG1 is a local area network(LAN)terminal board designed by General Electric(GE)specifically for industrial automation systems.It is a core component of the GE Fanuc 531X series and primarily functions to enable signal exchange and network communication between control drives and external devices.The following is a comprehensive analysis based on industry experience and publicly available information:
I.Core Functions and Technical Features
Multi-Protocol Signal Interface
As a LAN terminal board,this module provides eight configurable control inputs,supporting a wide input voltage range of 2-240V AC/DC and converting them into 24V DC logic signals for use by the control board.
The outputs integrate seven low-current/low-voltage Form C relay contacts,capable of directly driving peripheral devices such as contactors and indicator lights,with a response time of less than 10ms.
Supporting LAN communication protocols,it can exchange data with a host computer(such as a SCADA system)via Ethernet or serial interfaces,enabling remote monitoring and fault diagnosis.Industrial-Grade Reliability Design
The IP20-rated enclosure protects against dust and light liquid splashes,and is suitable for wide operating temperatures from-40°C to+85°C.
Built-in overvoltage and overcurrent protection circuits automatically cut off signal transmission when input voltage is abnormal,preventing damage to the control board.
Hot-swappable functionality allows modules to be replaced while the system is running,reducing downtime.
Flexible Signal Processing
Signal isolation and level conversion eliminate ground loop interference and ensure stable signal transmission(noise suppression ratio>60dB).
Supports multi-device cascading,allowing multiple LAN terminal blocks to be connected in a daisy-chain topology to expand system I/O capacity.II.Technical Parameters and Physical Specifications
Electrical Characteristics
Input Voltage Range:2-240V AC/DC(auto-sensing,supports reverse polarity protection)
Output Signal:24V DC logic signal(maximum load 0.5A/channel),relay contact capacity 2A 250V AC
Communication Speed:LAN protocol up to 1Mbps,supports 10/100Mbps Ethernet expansion(requires an external communication module).
Environmental Adaptability
Operating Temperature:-40°C to+85°C(industrial-grade wide temperature design)
Interference Immunity:Passed EMC testing(EN 61000-6-2/4),resisting electromagnetic interference from inverters,motor start/stop,and more.
Physical Design
Dimensions:125mm×100mm×50mm(compact DIN rail mount,saving control cabinet space)
Connector Type:Removable spring terminal(supports quick wiring)with status indicators(power,communication,fault).
