描述
一、核心功能与技术参数
1.基本信息

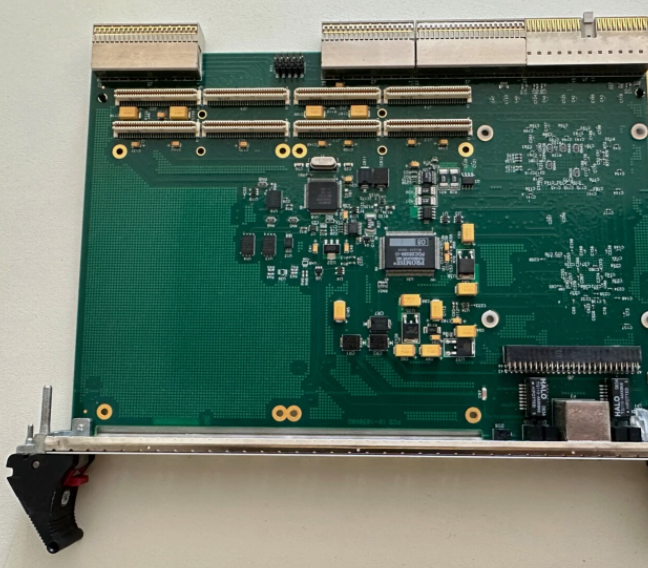

型号：CP238TA
品牌：GE
类型：多用途PMC扩展卡，专为工业自动化系统设计，支持高速数据通信与模块化扩展。
制造商：GE Fanuc/Ramix（现为Abaco Systems旗下品牌）。
系列：CP238系列，兼容CompactPCI（cPCI）系统。
2.技术规格
物理特性：
尺寸：6U CompactPCI外形卡。
重量：1.3千克（参考数据）。
接口与扩展：
PMC插槽：双PMC插槽，支持32/64位宽，运行频率33/66 MHz。
以太网端口：前面板集成10/100/1000BaseTX千兆以太网接口。
总线架构：主PCI总线与辅助PCI总线异步运行，确保高效数据传输。
热插拔功能：
支持完整热插拔寄存器控制，支持蓝光指示，实现安全插拔操作。
3.功能特性
高速通信：
通过PMC插槽扩展I/O模块，支持工业总线协议（如Profibus、EtherCAT）。
千兆以太网端口满足实时数据传输需求。
兼容性：
与GE Fanuc/Ramix的cPCI系统无缝集成，适配多种工业控制器。
稳定性：
工业级设计，耐高温（-40°C至+70°C）、抗振动，适用于严苛环境。
二、应用场景
发电与能源：
控制燃气涡轮发电机组的燃烧过程、发电机输出及能源站系统调节。
工业自动化：
工业流程控制、配电系统管理、机器人运动控制。
应急电源：
支持燃气轮机作为应急电源时的实时监控与快速响应。
电信与数据中心：
高速数据通信需求场景，如网络设备互联、服务器集群管理。
.1.Core functions and technical parameters
1.Basic information
Model:CP238TA
Brand:GE
Type:Multi-purpose PMC expansion card,designed for industrial automation systems,supports high-speed data communication and modular expansion.
Manufacturer:GE Fanuc/Ramix(now a brand under Abaco Systems).
Series:CP238 series,compatible with CompactPCI(cPCI)system.
2.Technical specifications
Physical characteristics:
Size:6U CompactPCI form factor card.
Weight:1.3 kg(reference data).
Interfaces and extensions:
PMC slot:Dual PMC slot,supports 32/64 bit width,and operates at 33/66 MHz.
Ethernet port:The front panel integrates 10/100/1000BaseTX Gigabit Ethernet interface.
Bus architecture:The main PCI bus and the auxiliary PCI bus operate asynchronously to ensure efficient data transmission.
Hot-swap function:
Supports complete hot-swap register control,supports blue-ray indication,and realizes safe plug-and-removal operation.
3.Functional characteristics
High-speed communication:
Extend the I/O module through the PMC slot,supporting industrial bus protocols(such as Profibus,EtherCAT).
Gigabit Ethernet ports meet real-time data transmission requirements.
compatibility:
Seamlessly integrated with GE Fanuc/Ramix’s cPCI system,adapted to a variety of industrial controllers.
stability:
Industrial-grade design,high temperature resistance(-40°C to+70°C),vibration resistance,suitable for harsh environments.
2.Application scenarios
Power generation and energy:
Controls the combustion process,generator output and energy station system regulation of gas turbine generator sets.
Industrial automation:
Industrial process control,distribution system management,robot motion control.
Emergency power supply:
Supports real-time monitoring and rapid response when gas turbines are used as emergency power supplies.
Telecom and Data Center:
High-speed data communication requirements scenarios,such as network device interconnection and server cluster management.
