描述

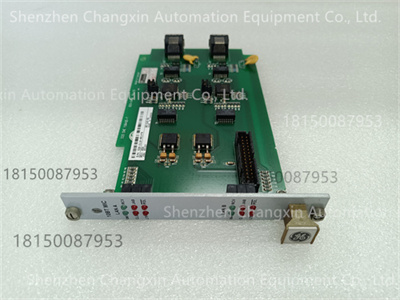

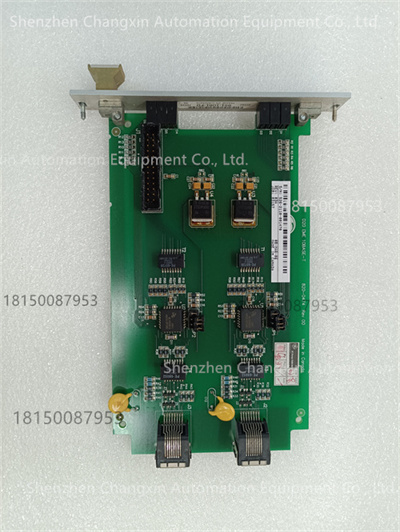

GE D20 EME是通用电气（GE）旗下的一款以太网/内存扩展板，主要用于GE Multilin D20和D200系列变电站控制器，以下是其详细介绍：
产品类型：以太网和内存扩展模块。
功能特点：
以太网连接：需要与媒体接口卡（MIC）配合使用，支持10Base-T、10Base 2、10Base-Fl以太网格式（取决于MIC型号），连接器类型有RJ45、BNC、ST等，可使D20/D200控制器无缝连接到变电站的局域网或广域网，实现与SCADA系统、远程控制终端（RTU）等智能电子设备的高效数据交换和远程管理。
内存扩展：标准内存为8MB，可扩展至16MB，为控制器运行更复杂的应用、存储更多历史数据和处理更大的通信任务提供了基础。
通信端口：具备7个RS-232/485串行端口、1个RS-232维护端口和2个D20链接HDLC端口，用于与D20 I/O模块通信。
协议支持：支持DNP 3、Modbus、IEC 61850等多种工业通信协议，便于与其他设备集成。
兼容性强：兼容D20和D200机箱的单插槽和多插槽配置，可适应各种系统架构。
可靠性高：采用坚固的结构，具有抗冲击和抗振动能力，能在-20°C至60°C的温度范围内工作，符合EN 61000-6-2（通用抗扰度-工业）和EN 61000-6-4（通用发射-工业）标准，适用于恶劣的工业环境。
物理规格：尺寸约为482.6mm（宽）×133.35mm（高）×205.74mm（深）。
电源需求：集成到D20/D200系统中供电。
应用领域：主要应用于变电站自动化、远程终端单元（RTU）等场景，可作为SCADA系统的远程I/O模块连接现场设备，进行数据采集、存储和监控，扩展D20/D200系统的网络连接和数据存储能力。
The GE D20 EME is a General Electric(GE)Ethernet/memory expansion board designed for the GE Multilin D20 and D200 series substation controllers.The following is a detailed description:
Product Type:Ethernet and memory expansion module.
Features:
Ethernet Connection:Requires use with a Media Interface Card(MIC).Supports 10Base-T,10Base-2,and 10Base-Fl Ethernet formats(depending on the MIC model).Connector types include RJ45,BNC,and ST.This allows the D20/D200 controller to seamlessly connect to the substation’s local area network(LAN)or wide area network(WAN),enabling efficient data exchange and remote management with intelligent electronic devices such as SCADA systems and remote control terminals(RTUs).
Memory Expansion:Standard memory is 8MB,expandable to 16MB,providing the foundation for the controller to run more complex applications,store more historical data,and handle larger communication tasks.Communication Ports:Features seven RS-232/485 serial ports,one RS-232 maintenance port,and two D20 Link HDLC ports for communication with D20 I/O modules.
Protocol Support:Supports multiple industrial communication protocols,including DNP 3,Modbus,and IEC 61850,facilitating integration with other devices.
Compatible:Compatible with single-and multi-slot configurations of the D20 and D200 chassis,adapting to various system architectures.
Reliable:Featuring a rugged construction,it is shock and vibration resistant,operates within a-20°C to 60°C temperature range,and complies with EN 61000-6-2(Generic Immunity-Industrial)and EN 61000-6-4(Generic Emissions-Industrial)standards,making it suitable for harsh industrial environments.Physical Specifications:Approximately 482.6mm(width)×133.35mm(height)×205.74mm(depth).
Power Requirements:Integrated into the D20/D200 system.
Applications:Primarily used in substation automation and remote terminal units(RTUs),it can be used as a remote I/O module in SCADA systems to connect to field devices for data acquisition,storage,and monitoring,expanding the network connectivity and data storage capabilities of the D20/D200 system.
