描述

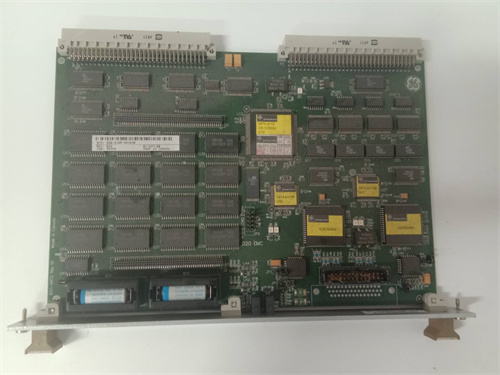

GE D20MIC10BASE-T 820-0756是一款工业以太网通信模块，专为工业自动化控制系统设计，支持10BASE-T以太网协议，适用于数据采集、远程控制及设备互联场景。以下是其核心功能、技术参数及应用特点的综合解析：
一、产品概述
功能定位
-用于连接GE D20系列PLC或其他工业设备至以太网网络，实现数据传输、协议转换及远程监控。
-支持Modbus TCP、Profinet等工业通信协议，兼容第三方控制系统。
技术特点
-传输速率：10 Mbps以太网标准，支持全双工通信。
-接口类型：RJ45标准接口，支持10BASE-T物理层协议。
-防护等级：IP20（面板安装），适用于工业环境（需配合防护措施）。
二、技术参数
电气性能
-工作电压：24 V DC（±10%）。
-功耗：≤3 W。
-工作温度：-20°C至70°C。
协议与功能
-支持Modbus TCP、Profinet、Ethernet/IP等协议。
-提供数据过滤、冗余通信路径配置功能，提升网络稳定性。
-支持时间戳功能，便于事件溯源与故障诊断。
兼容性
-与GE D20系列PLC无缝对接，支持模块化扩展。
-兼容第三方设备（如西门子PLC、B&R控制器），通过协议转换实现跨系统通信。
三、应用领域
工业自动化
-用于PLC与SCADA系统的数据交互，实现远程设备监控与控制。
-支持生产线设备状态实时传输，优化生产调度。
能源与电力
-集成至变电站自动化系统，传输保护装置信号及电能参数。
-适用于风电场、光伏电站的分布式设备通信。
交通与物流
-轨道交通信号系统数据传输，保障列车运行安全。
-仓储物流设备（如AGV、堆垛机）的网络化协同控制。
WES5120 2340-21004
GE D20MIC10BASE-T 820-0756 is an industrial Ethernet communication module designed for industrial automation control systems.It supports 10BASE-T Ethernet protocol and is suitable for data acquisition,remote control and equipment interconnection scenarios.The following is a comprehensive analysis of its core functions,technical parameters and application characteristics:
I.Product Overview
Functional Positioning
-Used to connect GE D20 series PLC or other industrial equipment to the Ethernet network to achieve data transmission,protocol conversion and remote monitoring.
-Supports industrial communication protocols such as Modbus TCP and Profinet,and is compatible with third-party control systems.
Technical Features
-Transmission rate:10 Mbps Ethernet standard,supports full-duplex communication.
-Interface type:RJ45 standard interface,supports 10BASE-T physical layer protocol.
-Protection level:IP20(panel installation),suitable for industrial environments(protective measures are required).
II.Technical Parameters
Electrical Performance
-Operating voltage:24 V DC(±10%).
-Power consumption:≤3 W.
-Operating temperature:-20°C to 70°C.
Protocols and functions
-Support Modbus TCP,Profinet,Ethernet/IP and other protocols.
-Provide data filtering and redundant communication path configuration functions to improve network stability.
-Support timestamp function to facilitate event tracing and fault diagnosis.
Compatibility
-Seamlessly connect with GE D20 series PLC and support modular expansion.
-Compatible with third-party devices(such as Siemens PLC,B&R controller),and realize cross-system communication through protocol conversion.
III.Application areas
Industrial automation
-Used for data interaction between PLC and SCADA system to realize remote equipment monitoring and control.
-Support real-time transmission of production line equipment status to optimize production scheduling.
Energy and power
-Integrate into substation automation system to transmit protection device signals and power parameters.
-Suitable for distributed equipment communication in wind farms and photovoltaic power stations.
Transportation and logistics
-Data transmission of rail transit signal system to ensure safe train operation.
-Networked collaborative control of warehouse logistics equipment(such as AGV,stacker).
