描述

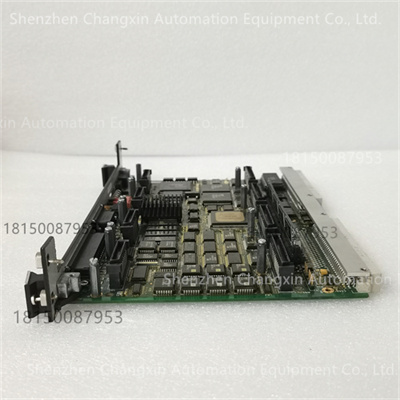

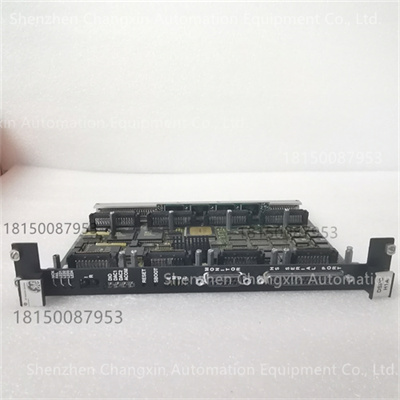

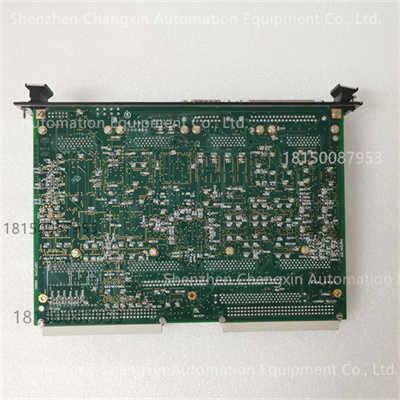

GE DS200DSPCH1ADA是通用电气（GE）专为工业自动化和电力系统设计的高性能数字信号处理器控制板，属于GE Mark V Speedtronic系列，主要用于蒸汽和燃气工业涡轮机的实时控制与信号处理。以下是基于行业经验和公开资料的综合解析：
一、核心功能与技术特性
系统定位与核心功能
工业涡轮机控制：作为Mark V Speedtronic系统的核心组件，该模块负责处理涡轮机运行中的实时信号（如温度、压力、转速），通过内置算法实现精准调速、励磁控制和故障诊断。
高性能信号处理：采用专用DSP芯片（如TI C6000系列），支持复杂控制算法（如PID调节、模型预测控制），可处理多通道模拟/数字信号，响应时间≤500μs。
电源与通信集成：集成24V DC电源输出（最大360W），为驱动器和传感器供电；支持RS485、以太网、CAN总线等通信接口，兼容Modbus RTU、EtherCAT等协议，实现与SCADA系统的无缝对接。
硬件架构与设计
模块化扩展：通过子板插槽（60针+40针连接器）支持多种I/O模块扩展，可灵活配置模拟输入/输出（如温度、压力信号）和数字输入/输出（如继电器控制）。
信号调理与隔离：内置光电隔离电路（隔离电压≥2500V AC）和抗混叠滤波器，有效抑制电磁干扰（EMI），确保信号传输稳定性。
冗余与可靠性：支持双电源输入（24V DC±10%）和热插拔功能，工业级宽温设计（-40°C至+85°C），通过IP67防护认证，适应高温、粉尘等恶劣环境。
典型应用场景
燃气轮机控制：实时监测涡轮机振动、燃油流量等参数，动态调整励磁电流和阀门开度，优化发电效率。
电力系统稳定：与GE Mark VIe控制器配合，实现发电机组的远程负荷分配和电网频率调节。
工业自动化：在化工反应釜、石油管道等场景中，通过Modbus协议连接传感器与执行器，实现闭环控制。
二、技术参数与物理规格
项目参数
输入电压24V DC（支持反接保护），兼容38-115V AC输入（需外部适配器）
输出功率24V DC/360W（可扩展至其他电压配置）
通信接口RS485、以太网（10/100Mbps自适应）、CAN总线，支持Modbus RTU/TCP、EtherCAT等协议
处理能力24位ADC/DAC，支持多通道同步采样（采样率≥100kHz）
工作温度-40°C至+85°C（工业级宽温）
防护等级IP67（防尘防水）
尺寸与安装330mm×178mm×85mm（DIN导轨安装），支持垂直或水平安装
兼容模块DS200ADMAH1AAC（电机控制模块）、DS200EXPSG1A（电源卡）、DS200TCPAG1A（控制处理器）
The GE DS200DSPCH1ADA is a high-performance digital signal processor control board designed by General Electric(GE)for industrial automation and power systems.It belongs to the GE Mark V Speedtronic series and is primarily used for real-time control and signal processing of steam and gas industrial turbines.The following is a comprehensive analysis based on industry experience and publicly available information:
I.Core Functions and Technical Features
System Positioning and Core Functions
Industrial Turbine Control:As a core component of the Mark V Speedtronic system,this module processes real-time signals during turbine operation(such as temperature,pressure,and speed),using built-in algorithms to achieve precise speed regulation,excitation control,and fault diagnosis.
High-Performance Signal Processing:Utilizing a dedicated DSP chip(such as the TI C6000 series),it supports complex control algorithms(such as PID regulation and model predictive control),processes multi-channel analog/digital signals,and achieves a response time of≤500μs.Power and Communication Integration:An integrated 24V DC power output(maximum 360W)powers actuators and sensors.It supports communication interfaces such as RS485,Ethernet,and CAN bus,and is compatible with protocols such as Modbus RTU and EtherCAT,enabling seamless integration with SCADA systems.
Hardware Architecture and Design
Modular Expansion:A daughterboard slot(60-pin+40-pin connector)supports a variety of I/O module expansions,allowing flexible configuration of analog input/output(such as temperature and pressure signals)and digital input/output(such as relay control).
Signal Conditioning and Isolation:Built-in optical isolation circuitry(isolation voltage≥2500V AC)and anti-aliasing filters effectively suppress electromagnetic interference(EMI)and ensure stable signal transmission.
Redundancy and Reliability:Supports dual power inputs(24V DC±10%)and hot-swappable functionality.It features an industrial-grade wide-temperature design(-40°C to+85°C)and is IP67 certified for protection against harsh environments such as high temperatures and dust.Typical Application Scenarios
Gas Turbine Control:Real-time monitoring of turbine vibration,fuel flow,and other parameters allows for dynamic adjustment of excitation current and valve opening to optimize power generation efficiency.
Power System Stability:In conjunction with the GE Mark VIe controller,this system enables remote load distribution to generator sets and grid frequency regulation.
Industrial Automation:In chemical reactors,oil pipelines,and other applications,sensors and actuators are connected via Modbus protocol to achieve closed-loop control.II.Technical Parameters and Physical Specifications
Item Parameters
Input Voltage:24V DC(with reverse polarity protection),compatible with 38-115V AC input(external adapter required)
Output Power:24V DC/360W(expandable to other voltage configurations)
Communication Interfaces:RS485,Ethernet(10/100Mbps auto-sensing),CAN bus,supporting Modbus RTU/TCP,EtherCAT,and other protocols
Processing Power:24-bit ADC/DAC,supporting multi-channel simultaneous sampling(sampling rate≥100kHz)
Operating Temperature:-40°C to+85°C(industrial-grade wide temperature range)
Ingress Protection:IP67(dustproof and waterproof)
Dimensions:330mm×178mm×85mm(DIN rail mountable),supports vertical or horizontal mounting
Compatible Modules:DS200ADMAH1AAC(motor control module),DS200EXPSG1A(power supply card),DS200TCPAG1A(control processor)
