描述

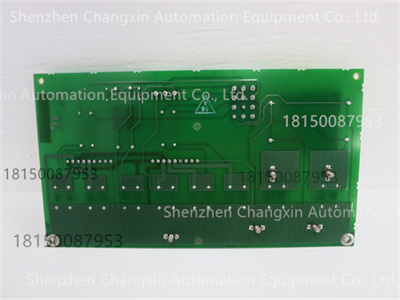

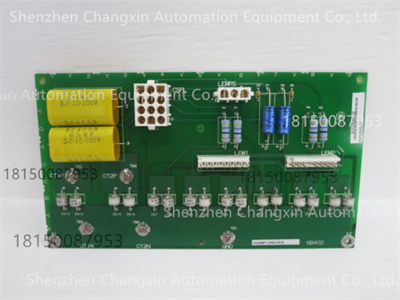

GE DS200PCCAG9ACB是GE Mark V系列中的一款电源连接卡组件，主要用于燃气轮机控制系统。以下是其产品详情：
基本参数
重量：约0.41kg（9盎司）。
输入电压范围：100-240VAC，50/60Hz。
输出电流：25A 24VDC。
通信接口：RS-232、RS-485、以太网。
工作温度范围：-40°C至+85°C（-40°F至+185°F）。
尺寸：约3.5x13x13.5cm。
产品功能
电源分配：为Mark V控制系统内的各种模块和组件提供电源分配，确保驱动或涡轮控制电路的可靠电源连接。
整流和滤波：配备整流器和滤波器，将输入的交流电转换为控制系统所需的直流电，并对电源进行调节和滤波，保证为敏感电子设备提供干净、稳定的电力。
产品特点
再生操作：针对需要再生电枢电压的系统进行了优化，可在240-630V的再生状态下工作。
安全保护：包括直流电压缓冲器和支路保险丝等安全功能，以防止电气故障。
兼容性强：设计用于与GE Mark V系列系统配合使用，与Mark V系列中的J型和M型框架兼容，便于集成到现有系统中。
应用领域
该产品是GE Speedtronic Mark V涡轮控制系统的组件，主要用于工业发电应用中控制和保护燃气轮机和蒸汽轮机。
The GE DS200PCCAG9ACB is a power connection card component in the GE Mark V series,primarily used in gas turbine control systems.Here are its product details:
Basic Specifications
Weight:Approx.0.41 kg(9 oz).
Input Voltage Range:100-240VAC,50/60Hz.
Output Current:25A 24VDC.
Communication Interfaces:RS-232,RS-485,Ethernet.
Operating Temperature Range:-40°C to+85°C(-40°F to+185°F).
Dimensions:Approx.3.5 x 13 x 13.5 cm.
Product Functions
Power Distribution:Provides power distribution to various modules and components within the Mark V control system,ensuring reliable power connections for drive or turbine control circuits.
Rectification and Filtering:Equipped with a rectifier and filter,it converts the input AC power to the DC power required by the control system,and regulates and filters the power supply to ensure clean and stable power for sensitive electronic equipment.
Product Features
Regenerative Operation:Optimized for systems requiring regenerated armature voltage,it can operate in regenerative conditions from 240-630V.
Safety Protection:Includes safety features such as DC voltage buffers and branch fuses to prevent electrical faults.
High Compatibility:Designed for use with GE Mark V series systems,compatible with J and M type frames in the Mark V series,facilitating integration into existing systems.
Applications
This product is a component of the GE Speedtronic Mark V turbine control system,primarily used in industrial power generation applications to control and protect gas turbines and steam turbines.
