描述

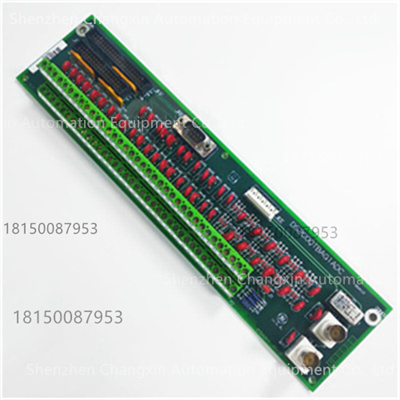

GE DS200QTBAG1ADC是通用电气（GE）专为工业自动化和电力系统设计的模拟量输入/输出端子板，属于GE Mark V Speedtronic系列，主要用于燃气轮机、蒸汽轮机等大型工业设备的控制系统。以下是基于行业经验和公开资料的综合解析：
一、核心功能与技术特性
模拟信号处理与接口
高密度I/O设计：配备2个端子块，每个端子块支持72条信号线连接，可同时处理温度、压力、振动等模拟信号，兼容±10V电压输入/输出范围，分辨率达16位，精度≤±0.5%。
磁脉冲与伺服控制：内置6路磁脉冲速率输入通道，用于监测涡轮机转速；8路伺服输出通道可直接驱动阀门等执行器，实现闭环控制。
信号隔离与抗干扰：采用光电隔离技术（隔离电压≥2500V AC）和金属氧化物压敏电阻（MOVs），有效抑制电磁干扰（EMI）和浪涌冲击，确保信号传输稳定性。
工业级可靠性设计
宽温与防护能力：工作温度范围为-40°C至+85°C，支持IP20防护等级，适应高温、粉尘等恶劣环境。
冗余与热插拔：支持双电源输入（24V DC±10%）和热插拔功能，维护时无需停机，模块更换后自动恢复配置，减少停机时间。
故障自诊断：内置状态指示灯（电源、通信、通道故障），可实时监测模块健康状态，支持通过GE Insight工具远程诊断。
系统兼容性与扩展
Mark V系统专属：专为GE Mark V Speedtronic涡轮机控制系统设计，需与Mark V机架（如IC693CHS392H）和背板总线配套使用，兼容Genius协议和冗余控制架构。
灵活配置：通过跳线或拨码开关可调整输入类型（如4-20mA电流或±10V电压），支持多模块级联扩展，满足复杂工业场景的I/O需求。
二、技术参数与物理规格
项目参数
输入类型模拟量：±10V DC、4-20mA电流（可配置）
数字量：干接点或24V DC逻辑信号
输出类型模拟量：±10V DC、4-20mA电流
数字量：继电器触点（2A 250V AC）
通信接口40针JFF连接器（用于核心控制器通信）、串行接口（RS485/RS232可选）
处理速度信号更新速率≤8ms（所有通道同步）
电源功耗24V DC，典型功耗200mA
物理尺寸280mm×70mm×30mm（紧凑型DIN导轨安装）
重量约0.66kg（含连接器）
The GE DS200QTBAG1ADC is an analog input/output terminal block designed by General Electric(GE)for industrial automation and power systems.It belongs to the GE Mark V Speedtronic series and is primarily used in control systems for large industrial equipment such as gas turbines and steam turbines.The following is a comprehensive analysis based on industry experience and publicly available information:
I.Core Functions and Technical Features
Analog Signal Processing and Interfaces
High-density I/O design:Equipped with two terminal blocks,each supporting 72 signal lines,it can simultaneously process analog signals such as temperature,pressure,and vibration.It is compatible with a±10V voltage input/output range,has a resolution of up to 16 bits,and an accuracy of≤±0.5%.
Magnetic Pulse and Servo Control:It features six built-in magnetic pulse rate input channels for monitoring turbine speed,and eight servo output channels for directly driving actuators such as valves,achieving closed-loop control.Signal Isolation and Interference Resistance:Optical isolation technology(isolation voltage≥2500V AC)and metal oxide varistors(MOVs)are used to effectively suppress electromagnetic interference(EMI)and surges,ensuring stable signal transmission.
Industrial-grade reliability design
Wide operating temperature and protection:The module operates from-40°C to+85°C and supports IP20 protection,making it suitable for harsh environments such as high temperatures and dust.
Redundancy and Hot Swappability:Supports dual power inputs(24V DC±10%)and hot-swappable functionality,enabling maintenance without downtime.Module replacement automatically restores configuration,minimizing downtime.
Fault Self-Diagnostics:Built-in status indicators(power,communication,and channel faults)provide real-time monitoring of module health and support remote diagnostics via the GE Insight tool.System Compatibility and Expansion
Mark V System Exclusive:Designed specifically for the GE Mark V Speedtronic turbine control system,it must be used with a Mark V chassis(such as the IC693CHS392H)and backplane bus,and is compatible with the Genius protocol and redundant control architecture.
Flexible Configuration:Input type(such as 4-20mA current or±10V voltage)can be adjusted using jumpers or DIP switches.Multi-module cascading expansion is supported to meet the I/O needs of complex industrial scenarios.II.Technical Parameters and Physical Specifications
Item Parameters
Input Type:Analog:±10V DC,4-20mA current(configurable)
Digital:Dry contact or 24V DC logic signal
Output Type:Analog:±10V DC,4-20mA current
Digital:Relay contact(2A 250V AC)
Communication Interface:40-pin JFF connector(for core controller communication),serial interface(RS485/RS232 optional)
Processing Speed:Signal update rate≤8ms(all channels synchronized)
Power Consumption:24V DC,typical 200mA
Dimensions:280mm×70mm×30mm(compact DIN rail mountable)
Weight:Approximately 0.66kg(including connector)
