一、产品概述

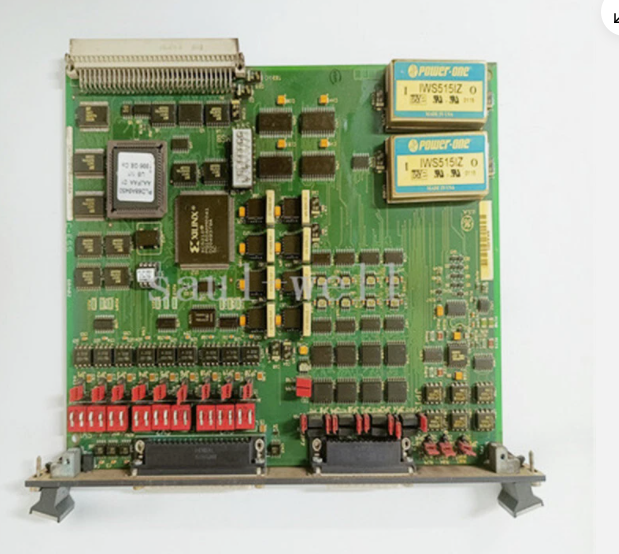

GE DS200SIOBH1ABA是一款工业级I/O控制板，专为Mark V系列涡轮机控制系统设计，支持数字量输入/输出（DI/DO）和模拟量输入（AI）功能。它采用VME总线架构，适用于燃气轮机、蒸汽轮机、风力发电等领域的过程控制与监测，具备高可靠性、模块化扩展和工业级环境适应性。
二、核心功能与特点
硬件配置
跳线与开关：包含20个跳线和3个开关块（每个块6个开关，共18个开关），支持出厂默认配置或用户自定义设置以适配不同需求。
接口：配备40针连接器和LED状态指示灯，用于信号传输与运行状态监控。
电源：支持24V DC供电，兼容控制级电源（+5V、±15V、±24V DC）及励磁电源电路。
通信与兼容性
协议支持：兼容Profibus DP等工业协议，通信速率可达12Mbps，支持与其他GE设备及第三方系统无缝集成。
扩展性：可安装于VME机架，占用一个完整插槽，支持系统扩展与模块化升级。
功能特性
自诊断：通过LED指示灯实时反馈运行状态，快速定位故障。
信号处理：集成电枢电流/电压、交流线路信号测量电路，适用于复杂工业信号采集。
安全设计：符合CE认证，支持单点接地策略以减少噪声干扰，确保系统稳定性。
三、技术参数
参数类别具体规格
输入/输出通道数字量输入：32点；数字量输出：32点（晶体管驱动）；模拟量输入：支持多类型信号
工作电压24V DC（控制级电源）
环境条件工作温度：5°C至40°C；湿度：5%至95%（无凝露）
尺寸与重量约160mm×100mm×60mm，重量0.5kg
防护等级未明确标注，但符合工业级抗振动、耐温设计
1.Product Overview
GE DS200SIOBH1ABA is an industrial-grade I/O control board designed for Mark V series turbine control systems and supports digital input/output(DI/DO)and analog input(AI)functions.It adopts a VME bus architecture and is suitable for process control and monitoring in gas turbines,steam turbines,wind power generation and other fields.It has high reliability,modular expansion and industrial-grade environmental adaptability.
2.Core functions and features
Hardware configuration
Jumper and switch:Contains 20 jumper and 3 switch blocks(6 switches per block,18 switches in total),supports factory default configuration or user-defined settings to adapt to different needs.
Interface:Equipped with 40-pin connector and LED status indicator for signal transmission and operating status monitoring.
Power supply:Supports 24V DC power supply,compatible with control-level power supply(+5V,±15V,±24V DC)and excitation power circuit.
Communication and compatibility
Protocol support:compatible with industrial protocols such as Profibus DP,communication speed up to 12Mbps,and supports seamless integration with other GE devices and third-party systems.
Extensibility:Can be installed in the VME rack,occupying a complete slot,supporting system expansion and modular upgrades.
Functional Features
Self-diagnosis:Real-time feedback of the operating status through LED indicators to quickly locate faults.
Signal processing:Integrated armature current/voltage,AC line signal measurement circuit,suitable for complex industrial signal acquisition.
Safety design:Comply with CE certification,supports single point grounding strategy to reduce noise interference and ensure system stability.
3.Technical parameters
Parameter category Specific specifications
Input/output channel Digital input:32 points;Digital output:32 points(transistor drive);Analog input:Supports multiple types of signals
Operating voltage 24V DC(control level power supply)
Environmental Conditions Operating temperature:5°C to 40°C;Humidity:5%to 95%(no condensation)
Size and weight:approximately 160mm×100mm×60mm,weight:0.5kg
Protection grade is not clearly marked,but it complies with industrial-grade vibration-resistant and temperature-resistant design
