描述

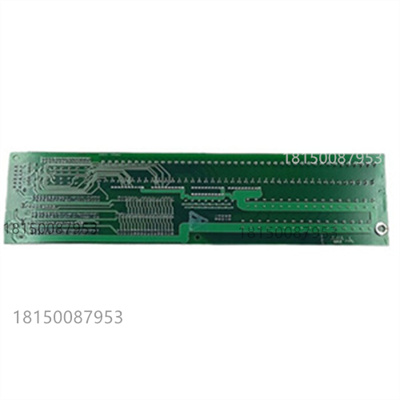

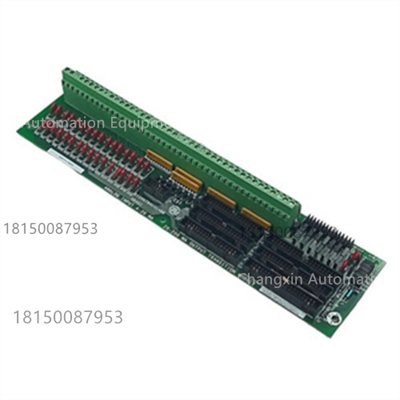

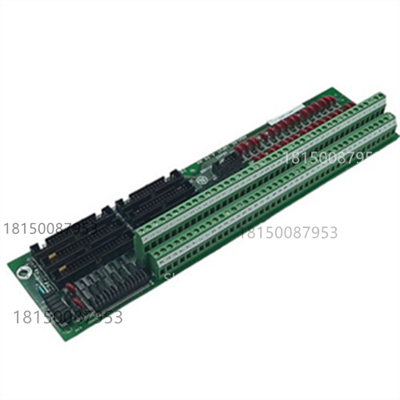

GE DS200TBQCG1ABB是通用电气（GE）Mark V系列中的一款端子板组件，主要用于工业涡轮机控制系统中信号的转接、分配与电气连接，是连接控制模块与现场设备的关键接口部件。以下是基于行业资料的详细解析：
一、基本信息与定位
品牌：GE（通用电气）
系列：Mark V Speedtronic（专为燃气轮机、蒸汽轮机等大型旋转设备设计的控制系统）
功能类型：端子板组件（Terminal Board Assembly）
核心作用：作为控制模块与现场传感器、执行器之间的物理接口，实现模拟量、数字量信号的集中接线与转接，保障控制信号和反馈信号的稳定传输，是Mark V系统信号链路的重要组成部分。
二、核心功能与技术特性
信号转接与集成能力
配备多组高密度端子排，支持多路模拟量（如温度、压力、振动信号）和数字量（如开关状态、继电器输出）信号的集中接线，可连接热电偶、压力变送器、限位开关等现场设备，简化控制系统布线。
兼容Mark V系统的I/O模块（如DS200SLCC逻辑控制板、DS200QTB模拟量端子板），通过内部连接器与系统背板总线通信，实现信号的快速交互。
电气隔离与抗干扰设计
内置光电隔离或变压器隔离电路，实现控制侧（低电压弱电）与现场侧（可能含高电压或干扰）的电气隔离，隔离电压≥1500V AC，有效消除地环路干扰和电磁干扰（EMI），保障信号传输精度。
部分端子集成浪涌抑制元件（如压敏电阻）和过流保护装置，防止现场设备短路或电压波动损坏核心控制模块，提升系统安全性。
工业级可靠性与适配性
环境适应性：工作温度范围-40°C至+70°C，可耐受涡轮机房高温、振动、粉尘等恶劣环境，符合工业级环境标准（如IEC 60068-2）。
机械结构：采用坚固的PCB板和防松端子设计，适配Mark V系统专用机架安装，端子采用快速插拔结构，便于现场接线与维护。
状态指示：配备电源、信号通断等LED指示灯，直观反馈模块运行状态，缩短故障排查时间。
三、技术参数概览
项目典型规格（以官方文档为准）
端子数量支持30-50路信号接线（含输入/输出通道）
信号类型模拟量：4-20mA电流信号、±10V电压信号、热电偶信号
数字量：24V DC干接点、电平信号
额定电压控制侧：24V DC；现场侧：兼容24V DC/110V AC/220V AC
隔离强度控制侧与现场侧隔离≥1500V AC（1分钟）
安装方式适配Mark V系统机架，通过连接器与背板总线连接
尺寸约200mm×120mm×40mm（紧凑型设计）
The GE DS200TBQCG1ABB is a terminal board assembly from the General Electric(GE)Mark V series.It’s primarily used for signal transfer,distribution,and electrical connection in industrial turbine control systems.It serves as a key interface component between control modules and field devices.The following is a detailed analysis based on industry data:
I.Basic Information and Positioning
Brand:GE
Series:Mark V Speedtronic(designed specifically for control systems for large rotating equipment such as gas turbines and steam turbines)
Function Type:Terminal Board Assembly
Core Function:Serves as the physical interface between the control module and field sensors and actuators,enabling centralized wiring and transfer of analog and digital signals,ensuring stable transmission of control and feedback signals.It is a crucial component of the Mark V system signal chain.
II.Core Functions and Technical Features
Signal Transfer and Integration Capabilities
Equipped with multiple high-density terminal blocks,it supports centralized wiring of multiple analog(such as temperature,pressure,and vibration)and digital(such as switch status and relay outputs)signals.It can connect field devices such as thermocouples,pressure transmitters,and limit switches,simplifying control system wiring.Compatible with Mark V system I/O modules(such as the DS200SLCC logic control board and the DS200QTB analog terminal board),it communicates with the system backplane bus via an internal connector,enabling fast signal exchange.
Electrical Isolation and Anti-Interference Design
Built-in optoelectronic isolation or transformer isolation circuitry provides electrical isolation between the control side(low-voltage and weak current)and the field side(which may contain high voltage or interference).With an isolation voltage of≥1500V AC,it effectively eliminates ground loop interference and electromagnetic interference(EMI),ensuring signal transmission accuracy.
Some terminals integrate surge suppression components(such as varistors)and overcurrent protection devices to prevent short circuits in field devices or voltage fluctuations from damaging the core control module,enhancing system safety.
Industrial-Grade Reliability and Adaptability
Environmental Adaptability:With an operating temperature range of-40°C to+70°C,it can withstand the harsh environments of turbine rooms,including high temperatures,vibration,and dust,and complies with industrial environmental standards(such as IEC 60068-2).Mechanical Structure:Utilizing a sturdy PCB and anti-loosening terminals,it’s compatible with Mark V system racks.Quick-swap terminals facilitate on-site wiring and maintenance.
Status Indicator:LED indicators for power,signal on/off,and more provide intuitive feedback on module operating status,shortening troubleshooting time.III.Technical Parameter Overview
Item Typical Specifications(Subject to official documentation)
Number of Terminals:Supports 30-50 signal connections(including input/output channels)
Signal Type:Analog:4-20mA current,±10V voltage,thermocouple
Digital:24V DC dry contact,level signal
Rated Voltage:Control side:24V DC;Field side:Compatible with 24V DC/110V AC/220V AC
Isolation Strength:Control-side to field side isolation≥1500V AC(1 minute)
Mounting Method:Compatible with Mark V system racks,connected to the backplane bus via connectors
Dimensions:Approximately 200mm×120mm×40mm(compact design)
