描述

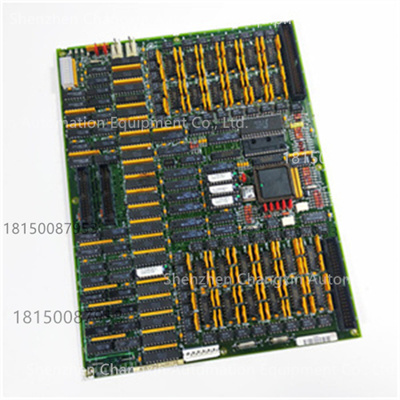

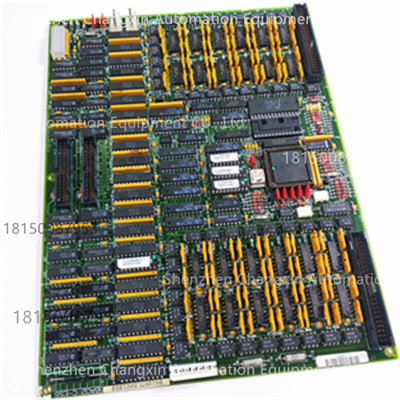

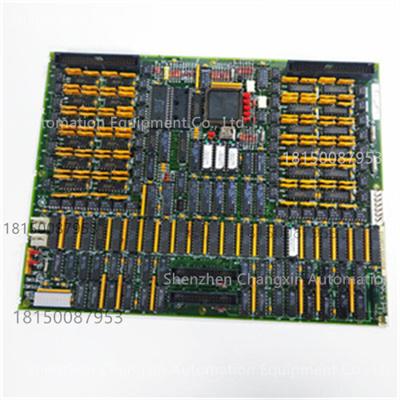

GE DS200TCDAG1BDB是GE Mark V系列中的一款模拟I/O板，主要用于燃气轮机控制系统。以下是其产品详情：
基本信息
品牌：GE通用电气。
型号：DS200TCDAG1BDB。
产品类型：I/O板。
原产国：美国。
功能特点
信号处理：可对安装在I/O核心R1、R2和R3上的端子板读取的多种模拟信号进行缩放和调理，包括LVDT输入、伺服阀输出、热电偶输入、4-20mA输入和输出、振动输入、继电器驱动器输出、脉冲输入、电压输入以及发电机和线路信号等。
信号传输：部分信号通过3PL连接器写入STCA板，JE连接器用于与TCQC板发送和接收发电机和线路信号。例如，4-20mA输入信号如压缩机失速检测信号和燃油流量压力信号由该板进行缩放和调理后传输。
硬件跳线设置：使用硬件跳线J1和J2选择毫安输出电路，J5和J6用于配置毫安输出电流范围，可为20mA或200mA，J7用于使用RS232端口进行卡测试，J8用于启动振荡器。
The GE DS200TCDAG1BDB is an analog I/O board in the GE Mark V series,primarily used in gas turbine control systems.Here are its product details:
Basic Information
Brand:GE(General Electric)
Model:DS200TCDAG1BDB
Product Type:I/O Board
Country of Origin:USA
Features
Signal Processing:It can scale and condition various analog signals read from the terminal blocks mounted on the I/O cores R1,R2,and R3,including LVDT inputs,servo valve outputs,thermocouple inputs,4-20mA inputs and outputs,vibration inputs,relay driver outputs,pulse inputs,voltage inputs,and generator and line signals.
Signal Transmission:Some signals are written to the STCA board via a 3PL connector,and a JE connector is used to send and receive generator and line signals with the TCQC board.For example,4-20mA input signals,such as compressor stall detection signals and fuel flow and pressure signals,are scaled and conditioned by this board before transmission.
Hardware jumper settings:Use hardware jumpers J1 and J2 to select the milliamp output circuit;J5 and J6 are used to configure the milliamp output current range,which can be 20mA or 200mA;J7 is used for card testing using the RS232 port;and J8 is used to start the oscillator.
