描述

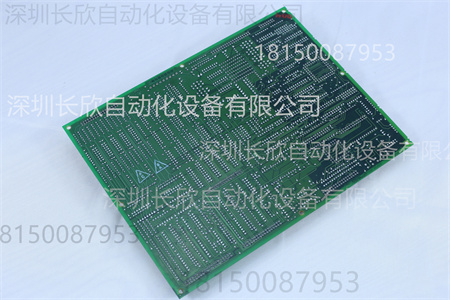

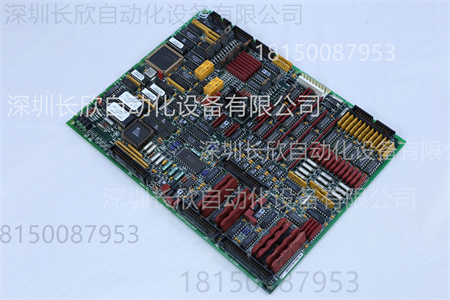

GE DS200TCQAG1BHF是通用电气（GE）生产的一款RST模拟I/O板，属于Mark V系列，主要用于燃气轮机控制系统。以下是其详细产品详情：
基本信息
零件编号：DS200TCQAG1BHF。
制造商：通用电气（GE）。
产品类型：I/O板。
原产国：美国。
连接器：包含四个34针连接器、两个40针连接器和六个跳线，还有6个LED。
功能特性
信号处理种类丰富：可对多种模拟信号进行缩放和调理，包括LVDT输入、伺服阀输出、热电偶输入、4-20mA输入和输出、振动输入、继电器驱动器输出、脉冲输入、电压输入以及发电机和线路信号等。
信号传输路径多样：通过3PL连接器，部分信号被写入STCA板；JE连接器用于与TCQC板发送和接收发电机和线路信号；4-20mA输入和输出由JB传输至TBQC上的JBR端子板连接，或从该连接传输；JD将跳闸信号从核心发送到核心中的TCTG板。
硬件可配置：使用硬件跳线J1和J2选择毫安输出电路，J5和J6用于配置毫安输出电流范围（可为20mA或200mA），J7用于使用RS232端口进行卡测试，J8用于启动振荡器。
应用领域：主要应用于燃气轮机控制系统，通过精确处理各种模拟信号，实现对燃气轮机的精准控制和监测，确保燃气轮机的稳定运行和高效工作。
The GE DS200TCQAG1BHF is an RST analog I/O board manufactured by General Electric(GE),belonging to the Mark V series,primarily used in gas turbine control systems.Below are its detailed product specifications:
Basic Information
Part Number:DS200TCQAG1BHF
Manufacturer:General Electric(GE)
Product Type:I/O Board
Country of Origin:USA
Connectors:Includes four 34-pin connectors,two 40-pin connectors,six jumpers,and six LEDs.
Features
Comprehensive Signal Processing:Capable of scaling and conditioning various analog signals,including LVDT inputs,servo valve outputs,thermocouple inputs,4-20mA inputs and outputs,vibration inputs,relay driver outputs,pulse inputs,voltage inputs,and generator and line signals.
Multiple signal transmission paths:Some signals are written to the STCA board via the 3PL connector;the JE connector is used to send and receive generator and line signals with the TCQC board;4-20mA input and output are transmitted via JB to or from the JBR terminal block on the TBQC;JD sends trip signals from the core to the TCTG board within the core.
Configurable hardware:Hardware jumpers J1 and J2 select the milliamp output circuit;J5 and J6 configure the milliamp output current range(20mA or 200mA);J7 is used for card testing using the RS232 port;and J8 starts the oscillator.
Application areas:Primarily used in gas turbine control systems,it achieves precise control and monitoring of the gas turbine by accurately processing various analog signals,ensuring stable operation and efficient performance.
