描述

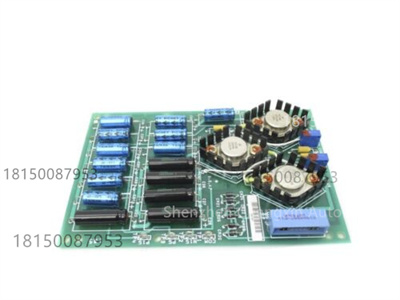

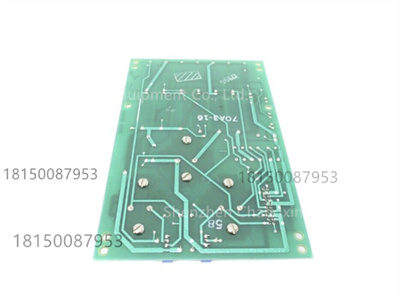

GE DS3800DMEB是通用电气（GE）Speedtronic Mark IV系列中的一款数字量输入模块，主要用于燃气轮机、蒸汽轮机等大型工业设备的控制系统，承担现场数字信号的采集与处理功能。以下是基于行业资料的综合解析：
一、基本信息与定位
品牌：GE（通用电气）
系列：Speedtronic Mark IV（适用于工业涡轮机控制的经典系统）
功能类型：数字量输入模块（Digital Input Module）
核心作用：采集现场设备的数字信号（如开关状态、继电器触点信号），并将其转换为控制系统可识别的逻辑信号，为涡轮机的启停、保护及调节提供关键状态数据。
二、核心功能与技术特性
数字信号采集能力
支持多路数字量输入（通常为16路或32路），兼容干接点（无源触点）和湿接点（24V DC有源信号），可连接限位开关、压力开关、温度开关等现场传感器，实时监测设备状态。
信号响应时间≤10ms，确保快速捕捉设备状态变化（如紧急停机信号），满足工业控制的实时性要求。
电气隔离与抗干扰设计
采用光电隔离技术，实现输入信号与控制回路的电气隔离（隔离电压≥1500V AC），有效抑制电磁干扰（EMI）和地环路干扰，保障信号采集的稳定性。
内置浪涌保护电路，可抵御现场接线过程中的电压尖峰，保护模块内部电路。
工业级可靠性
工作温度范围：-40°C至+70°C，适应涡轮机房高温、振动、粉尘等恶劣环境，符合工业级环境标准（如IEC 60068）。
机械结构：采用坚固的金属外壳或高强度PCB板，适配Mark IV系统专用机架，通过背部连接器与系统总线通信，安装维护便捷。
状态监测与诊断
配备LED指示灯（如电源灯、通道状态灯），直观显示模块供电状态和各输入通道的信号有无，便于快速排查接线或传感器故障。
三、技术参数概览
项目典型规格（以官方文档为准）
输入通道数通常为16路或32路（单模块）
输入信号类型干接点（无源）或24V DC（有源）
输入电压范围24V DC±10%（有源输入时）
隔离方式光电隔离（通道间及通道与系统间）
响应时间≤10ms
电源需求24V DC，典型功耗≤10W
通信接口适配Mark IV系统背板总线
安装方式Mark IV系统专用机架安装
尺寸约150mm×100mm×50mm（紧凑型设计）
The GE DS3800DMEB is a digital input module from the General Electric(GE)Speedtronic Mark IV series.It is primarily used in control systems for large industrial equipment such as gas turbines and steam turbines,collecting and processing field digital signals.The following is a comprehensive analysis based on industry data:
I.Basic Information and Positioning
Brand:GE
Series:Speedtronic Mark IV(Classic system for industrial turbine control)
Function Type:Digital Input Module
Core Function:Collects digital signals from field devices(such as switch status and relay contact signals)and converts them into logic signals recognizable by the control system,providing critical status data for turbine startup,shutdown,protection,and regulation.
II.Core Functions and Technical Features
Digital Signal Acquisition Capability
Supports multiple digital inputs(typically 16 or 32),compatible with both dry contacts(passive contacts)and wet contacts(24V DC active signals).It can connect to field sensors such as limit switches,pressure switches,and temperature switches for real-time equipment status monitoring.Signal response time≤10ms ensures rapid capture of device status changes(such as emergency stop signals),meeting the real-time requirements of industrial control.
Electrical Isolation and Anti-Interference Design
Optical isolation technology is used to electrically isolate the input signal from the control circuit(isolation voltage≥1500V AC),effectively suppressing electromagnetic interference(EMI)and ground loop interference,ensuring stable signal acquisition.
Built-in surge protection circuitry protects the module’s internal circuitry against voltage spikes during field wiring.
Industrial-Grade Reliability
The operating temperature range:-40°C to+70°C,adapting to the harsh environments of turbine rooms,such as high temperature,vibration,and dust,and complying with industrial environmental standards(such as IEC 60068).
Mechanical Construction:Utilizing a rugged metal housing or high-strength PCB,it fits into the Mark IV system’s dedicated rack.Communication with the system bus is via a rear connector,facilitating easy installation and maintenance.Status Monitoring and Diagnostics
LED indicators(such as power and channel status)visually display the module’s power status and the presence of signals on each input channel,facilitating quick troubleshooting of wiring or sensor faults.
III.Technical Specifications Overview
Item Typical Specifications(Refer to official documentation)
Number of Input Channels Typically 16 or 32(single module)
Input Signal Type Dry Contact(passive)or 24V DC(active)
Input Voltage Range 24V DC±10%(active input)
Isolation Optical Isolation(between channels and between channels and the system)
Response Time≤10ms
Power Requirement 24V DC,Typical Power Consumption≤10W
Communication Interface Compatible with the Mark IV system backplane bus
Mounting Method Mark IV system-specific rack mount
Dimensions Approximately 150mm×100mm×50mm(compact design)
