描述

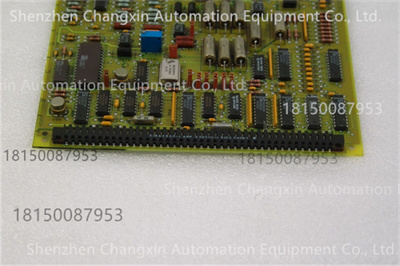

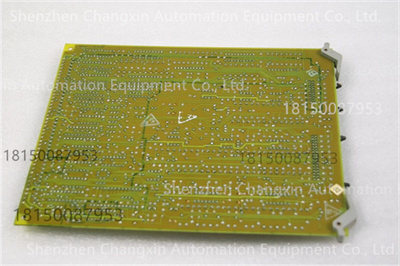

GE DS3800HAFA是通用电气（GE）Speedtronic Mark IV系列中的一款调节器板，也可称为模拟放大器卡。以下是其详细介绍：
功能用途：DS3800HAFA主要用于信号的处理和调节，它能够接收输入信号，经过内部的电路处理后，将信号发送到其他电路板，以实现对工业设备（如燃气轮机、蒸汽轮机）的控制。

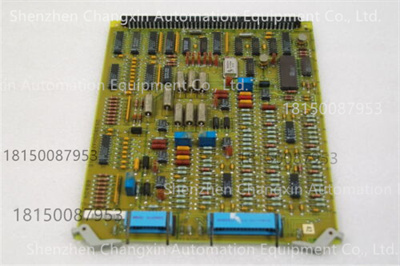

技术特性：该电路板配备了11个跳线和4个微调电阻组件，用于对电路板进行配置和参数调整。它有一个20针连接器和一个34针连接器，这些连接器位于电路板顶部边缘的固定杆之间，通过连接带状电缆来接收和发送信号。
物理特性：DS3800HAFA具有模块化连接器，可连接到驱动器上，并且有固定杆将电路板固定在驱动器中。电路板的尺寸和形状符合Mark IV系统的标准设计，便于安装和拆卸。
The GE DS3800HAFA is a regulator board,also known as an analog amplifier card,in the General Electric(GE)Speedtronic Mark IV series.The following is a detailed description:
Functional Purpose:The DS3800HAFA is primarily used for signal processing and conditioning.It receives input signals,processes them internally,and then transmits them to other boards to control industrial equipment such as gas and steam turbines.
Technical Features:The board is equipped with 11 jumpers and 4 trimmer resistors for configuration and parameter adjustment.It has a 20-pin connector and a 34-pin connector located between mounting bars on the top edge of the board,connecting to a ribbon cable for both signal reception and transmission.
Physical Features:The DS3800HAFA features a modular connector for connection to the drive and mounting bars to secure the board in the drive.The board’s size and shape conform to the standard design of the Mark IV system,facilitating easy installation and removal.
