描述

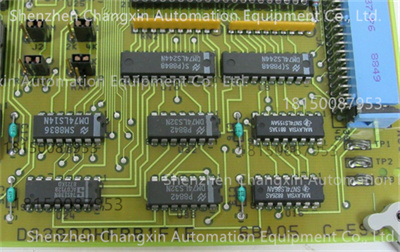

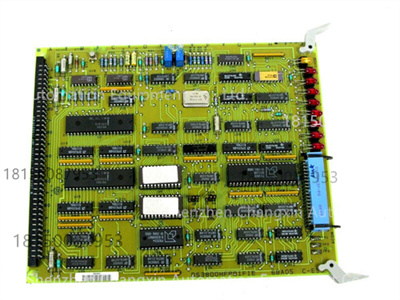

GE DS3800HFPB产品详解
GE DS3800HFPB是通用电气（GE）Speedtronic™燃气轮机控制系统中Mark II/IV系列的关键模块，属于高速信号处理与接口模块，主要用于高频信号采集、快速控制逻辑执行或专用通信协议转换。以下是详细分析：
1.产品定位与核心功能
类型：
高速信号处理模块：专注于高频信号（如转速脉冲、振动信号）的实时采集与预处理。
专用接口模块：可能集成特定协议（如GE专有通信协议）或硬件接口（如光纤、高速串行链路）。
控制逻辑执行模块：在Mark II/IV系统中承担部分快速控制算法（如燃料阀调节、超速保护）。
核心用途：
燃气轮机核心控制：
采集主轴转速信号（通过齿盘传感器，频率可达数千Hz）。
监测轴系振动（连接加速度传感器，分析振动频谱）。
执行快速保护动作（如超速保护OPC触发时间≤10ms）。
系统通信枢纽：
作为Mark II/IV控制器与现场设备（如阀门、传感器）之间的高速数据通道。
可能支持冗余通信链路（如双光纤环网），提升系统可靠性。
2.关键技术参数
信号处理能力：
输入通道：
数字量：支持高频脉冲信号（转速测量范围：100~20,000 RPM，分辨率≤1 RPM）。
模拟量（可选）：部分型号可能集成4-20mA/0-10V输入（用于温度、压力监测，采样率≥1kHz）。
输出通道：
数字量：高速继电器触点（触点容量：24V DC/5A）或固态开关（响应时间≤500μs）。
脉冲输出：支持PWM（脉宽调制）信号（用于燃料阀控制或点火系统）。
通信接口：
内部通信：
通过GE专用背板总线（并行或高速串行接口，带宽≥10Mbps）。
支持Mark II/IV系统的时间同步协议（确保多模块数据时序一致性）。
外部通信：
可能集成RS-485（Modbus RTU）、光纤接口（如ST/SC连接器）或GE专有协议（GESP）。
冗余设计：双通道通信链路，自动切换故障通道（切换时间≤10ms）。
电气特性：
供电要求：
主电源：110V AC/220V AC（50/60Hz）或24V DC（系统统一供电）。
隔离电源：模块内部提供多路隔离电源（如±15V用于传感器激励，隔离电压≥2500V AC）。
抗干扰能力：
符合IEC 61000-4-4（电快速瞬变脉冲群抗扰度，4kV等级）。
符合IEC 61000-4-6（射频场感应的传导骚扰抗扰度，10V/m等级）。
GE DS3800HFPB Product Details
The GE DS3800HFPB is a key module in the General Electric(GE)Speedtronic™gas turbine control system for the Mark II/IV series.It is a high-speed signal processing and interface module,primarily used for high-frequency signal acquisition,fast control logic execution,or specialized communication protocol conversion.The following is a detailed analysis:
1.Product Positioning and Core Functions
Type:
High-speed signal processing module:Focuses on real-time acquisition and pre-processing of high-frequency signals(such as speed pulses and vibration signals).
Specialized interface module:May integrate specific protocols(such as GE’s proprietary communication protocol)or hardware interfaces(such as optical fiber or high-speed serial links).
Control logic execution module:Implements some fast control algorithms in the Mark II/IV system(such as fuel valve regulation and overspeed protection).
Core Applications:
Gas turbine core control:
Acquires main shaft speed signals(via a geared disc sensor,with frequencies up to several thousand Hz).
Monitors shaft vibration(connects to an accelerometer and analyzes the vibration spectrum).
Executes fast protection actions(such as an overspeed protection OPC trigger time≤10ms).System Communication Hub:
Serves as a high-speed data channel between the Mark II/IV controller and field devices(such as valves and sensors).
May support redundant communication links(such as a dual fiber-optic ring network)to enhance system reliability.
2.Key Technical Parameters
Signal Processing Capabilities:
Input Channels:
Digital:Supports high-frequency pulse signals(speed measurement range:100-20,000 RPM,resolution≤1 RPM).
Analog(optional):Some models may integrate 4-20mA/0-10V inputs(for temperature and pressure monitoring,sampling rate≥1kHz).
Output Channels:
Digital:High-speed relay contacts(contact capacity:24V DC/5A)or solid-state switches(response time≤500μs).
Pulse Output:Supports PWM(pulse width modulation)signals(for fuel valve control or ignition systems).
Communication Interface:
Internal Communication:
Via GE proprietary backplane bus(parallel or high-speed serial interface,bandwidth≥10Mbps).Supports Mark II/IV system time synchronization protocols(ensuring data timing consistency across multiple modules).
External Communications:
Possibly integrated with RS-485(Modbus RTU),fiber optic interfaces(such as ST/SC connectors),or GE proprietary protocol(GESP).
Redundant Design:Dual-channel communication links with automatic failover(failure channel switching time≤10ms).
Electrical Characteristics:
Power Requirements:
Main power supply:110V AC/220V AC(50/60Hz)or 24V DC(system unified power supply).
Isolated Power Supply:Multiple isolated power supplies are provided within the module(e.g.,±15V for sensor excitation,isolation voltage≥2500V AC).
Interference Immunity:
Complies with IEC 61000-4-4(electrical fast transient/burst immunity,4kV level).
Complies with IEC 61000-4-6(immunity to conducted disturbances induced by radio frequency fields,10V/m level).
