描述
GE DS3800HIMA是GE Mark IV系列中的一款隔离板，其具体产品详情如下：
基本信息
品牌：GE通用电气。
型号：DS3800HIMA，常见的具体型号为DS3800HIMA1C1D。
系列：Mark IV。
产品类型：隔离板。
外观设计
电路板四个角中有三个角有工厂钻孔，便于安装固定。
其上部长边有一个琥珀色LED，可用于指示相关状态。
板上有多个二极管、电阻器、电容器以及三个晶体管等电子元件，其中一个晶体管（LM309K）为固定电压5V调节器，具有热过载保护功能，输出电流超过1A，功率耗散在内部受到限制。此外，板上还有接收器、双差分电路、DIP组件等集成电路以及一个Bicron（218A 4819P 2）变压器。
功能特点
作为隔离板，它在GE Mark IV系统中起到电气隔离的作用，能够有效防止不同电路之间的信号干扰，确保系统稳定运行。
Mark IV系列采用了带有故意冗余设计的集成芯片组，DS3800HIMA作为其中一员，有助于减少因电子设备故障导致的整体系统停机时间，可用于涡轮机燃料和辅助设备的启动、停机和冷却程序的排序，以及发电机和系统的同步。
The GE DS3800HIMA is an isolation board in the GE Mark IV series.Its specific product details are as follows:
Basic Information
Brand:GE(General Electric Company)
Model:DS3800HIMA,commonly known as DS3800HIMA1C1D.
Series:Mark IV.
Product Type:Isolation Board.
Appearance Design

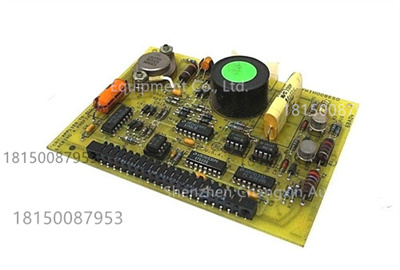

Three of the four corners of the circuit board have factory-drilled holes for easy installation and fixation.
An amber LED is located on the upper long edge to indicate relevant status.
The board contains multiple diodes,resistors,capacitors,and three transistors,one of which(LM309K)is a fixed-voltage 5V regulator with thermal overload protection.Its output current exceeds 1A,and power dissipation is internally limited.In addition,the board includes a receiver,dual differential circuitry,DIP components,and a Bicron(218A 4819P 2)transformer.
Features
As an isolator,it provides electrical isolation in the GE Mark IV system,effectively preventing signal interference between different circuits and ensuring stable system operation.
The Mark IV series utilizes integrated chipsets with intentional redundancy design,with the DS3800HIMA being one of them.This helps reduce overall system downtime due to electronic equipment failures and can be used for sequencing start-up,shutdown,and cooling procedures for turbine fuel and auxiliary equipment,as well as synchronizing generators and the system.
