描述
产品简要说明

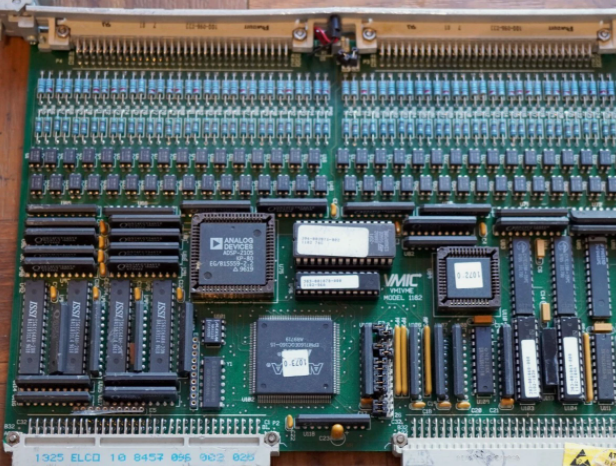

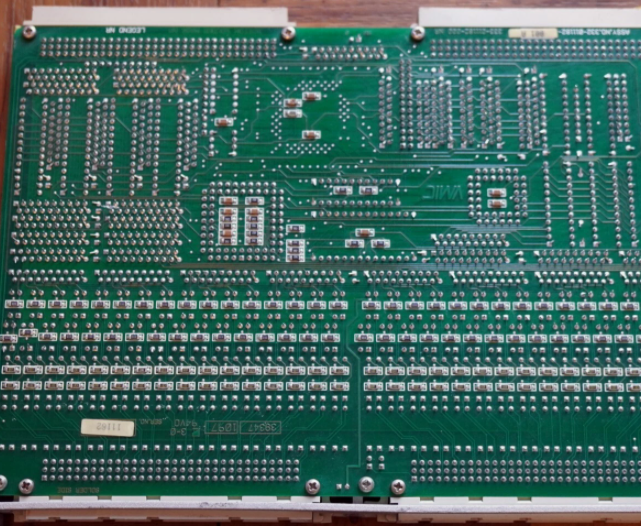

GE Fanuc VMIVME 332-011182-001 A是通用电气（GE Fanuc）基于VME总线架构设计的工业级数字输入模块，专为高可靠性控制系统开发。其核心特性包括：
高隔离输入：64通道独立隔离，通道间耐压≥1500 V DC
抗干扰设计：支持差分信号输入，共模抑制比≥70 dB
宽温工作：-40℃～+85℃环境适应性，IP67防护等级
智能诊断：内置自检逻辑，支持实时故障定位与LED状态指示
产品详细说明
1.硬件架构与输入特性
核心组件
处理器：基于PowerPC架构，支持实时信号处理与逻辑运算
输入通道：
通道配置：64路独立隔离数字输入，支持单端或差分信号模式
电压范围：5 V DC至250 V DC（单端）或4 V AC至240 V AC（差分）
信号调理：
滤波器：可选硬件消抖（时间常数0.1～100 ms）
阈值调节：用户可编程输入电压阈值（1.25～66 V）
抗干扰设计
共模抑制：差分输入模式下共模电压范围-30～+66 V，输入灵敏度±100 mV
隔离保护：通道间耐压≥1500 V DC，支持浪涌电流保护
抗噪能力：兼容RS422/RS485标准，具备±7 V共模噪声抑制
智能诊断
自检逻辑：上电自动检测通道状态，故障时触发LED报警
测试模式：支持离线/实时诊断，通过CSR寄存器控制测试信号生成
产品概述:GE Fanuc VMIVME 332-011182-001 A
作为GE Fanuc VME系统的核心输入模块，其核心价值在于高可靠性与工业环境适应性：
技术价值：
在核电站监控系统中，实现多路传感器信号的实时采集与隔离
在石化生产中，支持高压环境下的设备状态监测
行业适配：
能源电力：变电站保护装置、智能电网数据采集
石油化工：炼油厂高压仪表信号隔离、管道压力监测
智能制造：数控机床多轴位置反馈、工业机器人安全急停信号
轨道交通：列车信号系统冗余输入、车载设备状态监控
Product brief description
GE Fanuc VMIVME 332-011182-001 A is an industrial-grade digital input module designed by GE Fanuc based on the VME bus architecture,specially developed for high-reliability control systems.Its core features include:
High isolation input:64 channels independent isolation,withstand voltage between channels≥1500 V DC
Anti-interference design:supports differential signal input,common mode rejection ratio≥70 dB
Wide temperature operation:-40℃~+85℃environmental adaptability,IP67 protection level
Intelligent diagnostics:built-in self-test logic,supports real-time fault location and LED status indication
Product details
1.Hardware architecture and input characteristics
Core Components
Processor:Based on PowerPC architecture,supports real-time signal processing and logical operations
Input channel:
Channel configuration:64 independent isolated digital inputs,support single-ended or differential signal mode
Voltage range:5 V DC to 250 V DC(single-ended)or 4 V AC to 240 V AC(differential)
Signal conditioning:
Filter:Optional hardware dejitter(time constant 0.1~100 ms)
Threshold adjustment:User programmable input voltage threshold(1.25~66 V)
Anti-interference design
Common mode rejection:Common mode voltage range in differential input mode-30~+66 V,input sensitivity±100 mV
Isolation protection:The channel withstand voltage≥1500 V DC,supports surge current protection
Noise resistance:compatible with RS422/RS485 standards,with±7 V common mode noise suppression
Intelligent diagnosis
Self-test logic:Power-on automatically detects the channel status,triggers LED alarm when a fault is faulty
Test mode:Support offline/real-time diagnosis,and control test signal generation through CSR register
Product Overview:GE Fanuc VMIVME 332-011182-001 A
As the core input module of GE Fanuc VME system,its core value lies in high reliability and industrial environment adaptability:
Technical value:
In the nuclear power plant monitoring system,real-time acquisition and isolation of multiple sensor signals is realized
In petrochemical production,support equipment status monitoring in high-pressure environments
Industry adaptation:
Energy and electricity:substation protection device,smart grid data collection
Petrochemical:Refinery high-pressure instrument signal isolation,pipeline pressure monitoring
Intelligent manufacturing:multi-axis position feedback of CNC machine tools,safe emergency stop signal of industrial robots
Rail Transit:Redundant input of train signal system,status monitoring of on-board equipment
