描述

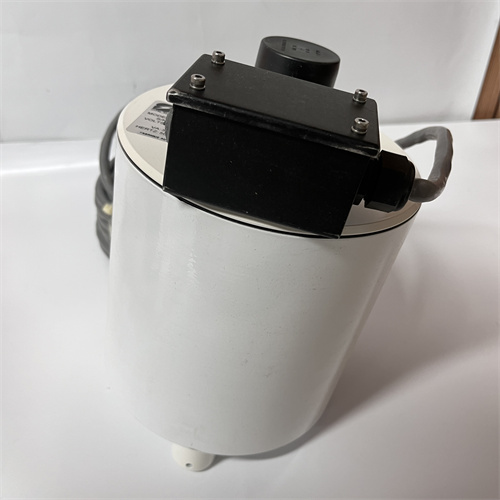

GE H201Ti是GE公司Hydran系列中的一款工业设备，主要用于变压器故障监测，也可用作中型变频器控制交流感应电机。以下是其产品详情：
技术参数
电源：输入电压为100-240V AC，50/60Hz；输出电压为24V DC，输出功率为200W。
工作与存储温度：工作温度范围是-20°C至+50°C，存储温度范围是-40°C至+85°C。
尺寸：200mm x 100mm x 50mm。
测量范围与精度：气体测量范围为0-2000 ppm（体积比），精度为±5%。电流测量范围包括±20 A、±50 A、±100 A、±200 A、±500 A、±1000 A等，精度为0.5%。
响应时间：达到90%响应的时间为10分钟。
功能特点
气体监测：采用燃料电池传感器技术，能够测量氢气、一氧化碳、乙炔和乙烯等故障气体的浓度，可自动每15天进行自检，并在检测到故障时触发服务警报。
数据记录：具备长达一年的本地数据记录和重大事件记录功能，有助于分析故障原因和趋势。
通信接口：具有RS-485连接标准，支持Modbus或Hydran协议，可与其他设备或系统进行数据交换和控制。
报警功能：支持多种报警阈值设置，当监测到的气体含量超过预定义的水平或变化率时，会自动触发警报，可通过声音、灯光等方式提醒现场工作人员，并可通过网络远程通知相关人员。
变频器功能：输出频率范围为0.5 Hz至200 Hz，满足各种电机应用需求；效率超过95%，有助于降低能源消耗；具备150%的过载能力，持续时间为1分钟。
应用领域
电力行业：可用于发电厂、变电站、配电系统等的变压器监测，保障电力系统的安全稳定运行。
石油化工行业：用于监测生产过程中气体成分，及时发现潜在的安全隐患。
其他领域：如钢铁冶炼、数据中心等，也可用于工业设备的气体监测和控制。
The GE H201Ti is an industrial device in GE’s Hydran series,primarily used for transformer fault monitoring,and can also be used as a medium-sized frequency converter to control AC induction motors.The following are its product details:
Technical Specifications
*Power Supply:Input voltage 100-240V AC,50/60Hz;Output voltage 24V DC,output power 200W.
*Operating and Storage Temperature:Operating temperature range-20°C to+50°C;storage temperature range-40°C to+85°C.
*Dimensions:200mm x 100mm x 50mm.
*Measurement Range and Accuracy:Gas measurement range 0-2000 ppm(volume ratio),accuracy±5%.Current measurement range includes±20 A,±50 A,±100 A,±200 A,±500 A,±1000 A,etc.,accuracy 0.5%.
Response Time:90%response time is 10 minutes.
Features
Gas Monitoring:Utilizes fuel cell sensor technology to measure the concentration of fault gases such as hydrogen,carbon monoxide,acetylene,and ethylene.It automatically performs self-checks every 15 days and triggers a service alarm upon detecting a fault.
Data Logging:Features local data logging and critical event logging for up to one year,aiding in fault cause and trend analysis.
Communication Interface:Supports RS-485 connectivity and Modbus or Hydran protocols for data exchange and control with other devices or systems.
Alarm Function:Supports multiple alarm threshold settings.When the detected gas concentration exceeds a predefined level or rate of change,an alarm is automatically triggered,alerting on-site personnel through sound,light,etc.,and remotely notifying relevant personnel via network.
Inverter Function:Output frequency range of 0.5 Hz to 200 Hz,meeting the needs of various motor applications;efficiency exceeding 95%,helping to reduce energy consumption;150%overload capacity for 1 minute.Application Areas:
Power Industry:Can be used for transformer monitoring in power plants,substations,and power distribution systems to ensure the safe and stable operation of the power system.
Petrochemical Industry:Used to monitor gas composition during production processes and promptly detect potential safety hazards.
Other Areas:Such as steel smelting,data centers,etc.,it can also be used for gas monitoring and control in industrial equipment.
