描述

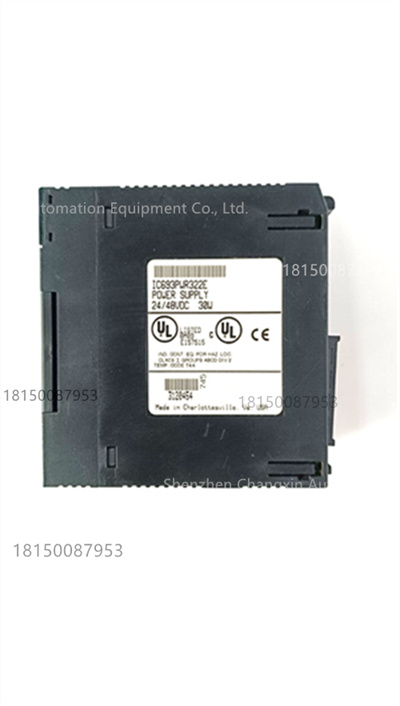

GE IC693PWR322E是GE Fanuc 90-30系列的一款标准电源模块。以下是其产品详情：
基本信息
品牌：GE Fanuc
型号：IC693PWR322E
类型：标准电源模块
额定电压：24VDC或48VDC
负载能力：30瓦
技术参数
输入电压范围：直流启动时为21-56VDC，运行时为18-56VDC
输入功率：交流输入时为90VA，直流输入时为50W
浪涌电流：峰值4A，最大持续时间100ms
输出电压及功率：+5VDC输出功率最大为15瓦；+24VDC隔离输出功率最大为20瓦；+24VDC继电器输出功率最大为15瓦
保持时间：最小14毫秒
通信接口：RS485串口，9针D型子连接器
状态指示灯：包括PWR、OK、RUN、BATT指示灯
功能特点
多输出功能：提供+5VDC、+24VDC隔离和+24VDC继电器三种输出，分别为背板、继电器模块电路及部分90-30背板连接模块和外部24VDC输入模块供电。
保护功能：具备过压保护和过流保护功能，5VDC输出的过压保护限值为6.4-7V，过流保护最大值为4A。
通信功能：通过RS485通信端口可连接编程工作站、GE Fanuc手持编程器等其他兼容RS485通信标准的设备。
The GE IC693PWR322E is a standard power supply module for the GE Fanuc 90-30 series.The following are product details:
Basic Information
Brand:GE Fanuc
Model:IC693PWR322E
Type:Standard Power Supply Module
Rated Voltage:24VDC or 48VDC
Load Capacity:30W
Technical Parameters
Input Voltage Range:21-56VDC for DC startup,18-56VDC for operation
Input Power:90VA for AC input,50W for DC input
Inrush Current:4A peak,maximum duration 100ms
Output Voltage and Power:+5VDC output power up to 15W;+24VDC isolated output power up to 20W;+24VDC relay output power up to 15W
Hold-up Time:Minimum 14ms
Communication Interface:RS485 serial port,9-pin D-sub connector
Status Indicators:Includes PWR,OK,RUN,and BATT indicators
Features
Multiple Output Functions:Provides+5VDC,+24VDC Three outputs,isolated and+24VDC relay,power the backplane,relay module circuitry,some 90-30 backplane connection modules,and external 24VDC input modules.
Protection:Overvoltage and overcurrent protection are provided.The 5VDC output has an overvoltage protection limit of 6.4-7V and a maximum overcurrent protection limit of 4A.
Communication:The RS485 communication port supports connection to programming workstations,GE Fanuc handheld programmers,and other RS485-compatible devices.
