描述

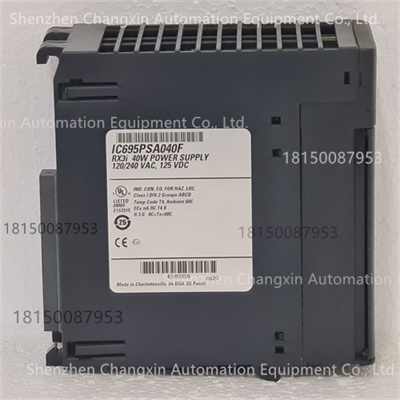

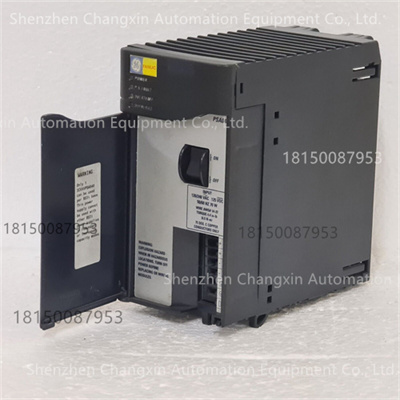

GE IC695PSA040是GE Fanuc PACSystems RX3i系列的一款电源模块，以下是其产品详情：
基本信息
品牌：GE Fanuc
型号：IC695PSA040
产品类型：电源模块
额定输出功率：40瓦
技术参数
输入电压范围：85-264VAC或100-300VDC
输出电压：提供+5.1VDC、+24VDC（继电器输出）以及+3.3VDC（仅用于内部订货号为IC695的RX3i模块）。
输出电流：+24VDC输出电流为0-1.6A，+5.1VDC输出电流为0-6A，+3.3VDC输出电流为0-9A。
电气隔离：输入与背板之间隔离电压为250VAC连续、1500VAC持续1分钟。
接线端子电流：每个接线端子可以接受14AWG至22AWG的电线，每个端子的电流限制为6安培。
状态指示：配备4个状态LED指示灯，分别为电源、电源故障、过热和过载。
功能特点
高效能转换：采用先进的电源转换技术，效率高达85%以上，减少能源浪费。
保护功能：具备过载保护、短路保护和过热保护功能，有效防止因异常情况导致的设备损坏。
安装方式：在PACSystems RX3i的通用背板中，只能安装一个IC695PSA040电源模块，占用两个插槽。它也可以通过菊花链方式连接最多4个PSA040电源模块，以提供额外的电力支持。
The GE IC695PSA040 is a power supply module for the GE Fanuc PACSystems RX3i series.The following are its product details:
Basic Information
Brand:GE Fanuc
Model:IC695PSA040
Product Type:Power Supply Module
Rated Output Power:40 Watts
Technical Specifications
Input Voltage Range:85-264VAC or 100-300VDC
Output Voltage:Provides+5.1VDC,+24VDC(relay output),and+3.3VDC(for RX3i modules with internal order number IC695 only).
Output Current:+24VDC output current is 0-1.6A,+5.1VDC output current is 0-6A,and+3.3VDC output current is 0-9A.
Electrical Isolation:Input to backplane isolation voltage is 250VAC continuous and 1500VAC for 1 minute.
Terminal Block Current:Each terminal block accepts wires from 14AWG to 22AWG,with a current limit of 6 amps per terminal.
Status Indicator:Equipped with four status LEDs:Power,Power Fault,Overtemperature,and Overload.
Features
High-Efficiency Conversion:Utilizing advanced power conversion technology,efficiency reaches over 85%,reducing energy waste.
Protection:Overload,short-circuit,and overtemperature protection functions effectively prevent equipment damage caused by abnormal conditions.
Mounting Method:Only one IC695PSA040 power supply module can be installed in the PACSystems RX3i universal backplane,occupying two slots.Up to four PSA040 power supply modules can also be daisy-chained to provide additional power.
