描述

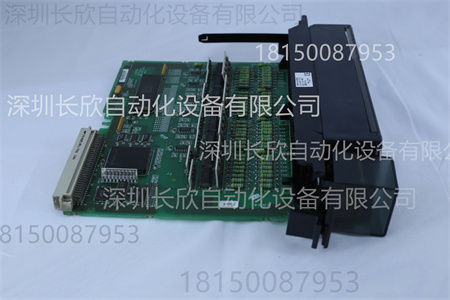

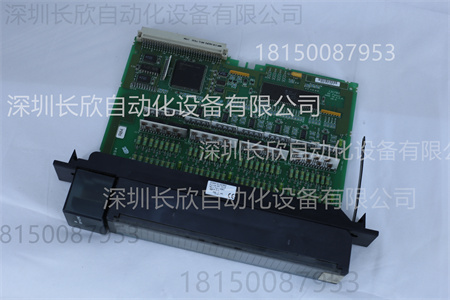

GE IC697ALG230J是GE Fanuc系列90-70可编程逻辑控制器（PLC）平台的一款模拟输入基础转换模块。以下是其详细产品详情：
基本信息
品牌：GE。
型号：IC697ALG230J。
产品类型：模拟输入基础转换模块。
原产国：美国。
尺寸：4 x 21.8 x 29.2cm。
重量：0.66kg。
技术参数
输入通道：8个差分模拟输入通道。
信号类型：支持4-20mA电流信号和-10VDC/+10VDC电压信号。
输入分辨率：16位。
精度：电压精度为满量程的±0.01%，值的±0.02%；电流精度为满量程的±0.05%，值的±0.1%。
线性度：在整个范围内为满量程的±0.02%。
温度系数：电压典型值为±5ppm/°C，最大值为±15ppm/°C；电流最大值为±30ppm/°C。
更新速率：2.4ms至2.8ms。
电源要求：+5VDC时，电流为0.8A（4W）。
功能特点
配置灵活：每个输入通道都可以单独配置为电流或电压输入，且具有用户可自定义的缩放功能，无需跳线或拨码开关，通过Windows或MS-DOS软件即可轻松配置。
高可靠性：所有输入都具有抗瞬态和稳态过电压保护功能，确保模块在恶劣的工业环境中稳定运行。
数据转换高效：模块将输入信号转换为数字形式供CPU使用，转换后的数据以二进制补码形式呈现，基本转换分辨率为14位，通过过采样和平均技术可进一步提高分辨率。
可扩展性强：支持扩展模块，最多可连接7个扩展模块，使输入通道总数达到120个，扩展模块包括IC697ALG440电压扩展模块和IC697ALG441电流扩展模块。
应用领域
该模块在工业自动化中应用广泛，可用于控制和监视各种工业过程和机器，如控制工业炉的温度、压力等参数，调节HVAC系统的运行，还可用于移动材料、运行泵或管理小型流程等更复杂的自动化系统。
The GE IC697ALG230J is an analog input basic conversion module for the GE Fanuc series 90-70 programmable logic controller(PLC)platform.Below are its detailed product details:
Basic Information
Brand:GE
Model:IC697ALG230J
Product Type:Analog Input Basic Conversion Module
Country of Origin:USA
Dimensions:4 x 21.8 x 29.2cm
Weight:0.66kg
Technical Specifications
Input Channels:8 differential analog input channels.
Signal Type:Supports 4-20mA current signals and-10VDC/+10VDC voltage signals.
Input Resolution:16-bit.
Accuracy:Voltage accuracy is±0.01%of full scale and±0.02%of value;current accuracy is±0.05%of full scale and±0.1%of value.
Linearity:±0.02%of full scale across the entire range.
Temperature Coefficient:Typical voltage±5ppm/°C,maximum±15ppm/°C;maximum current±30ppm/°C.
Update Rate:2.4ms to 2.8ms.
Power Requirements:0.8A(4W)current at+5VDC.
Features
Flexible Configuration:Each input channel can be individually configured as a current or voltage input with user-customizable scaling.No jumpers or DIP switches are required;configuration is easy via Windows or MS-DOS software.
High Reliability:All inputs feature transient and steady-state overvoltage protection,ensuring stable operation in harsh industrial environments.
Efficient Data Conversion:The module converts input signals into digital form for CPU use.The converted data is presented in two’s complement binary format with a basic conversion resolution of 14 bits.Resolution can be further improved through oversampling and averaging techniques.
Highly scalable:Supports expansion modules,allowing connection of up to 7 modules,bringing the total number of input channels to 120.Expansion modules include the IC697ALG440 voltage expansion module and the IC697ALG441 current expansion module.
Applications:This module is widely used in industrial automation.It can be used to control and monitor various industrial processes and machines,such as controlling parameters like temperature and pressure in industrial furnaces,regulating HVAC systems,and more complex automated systems for moving materials,operating pumps,or managing small processes.
