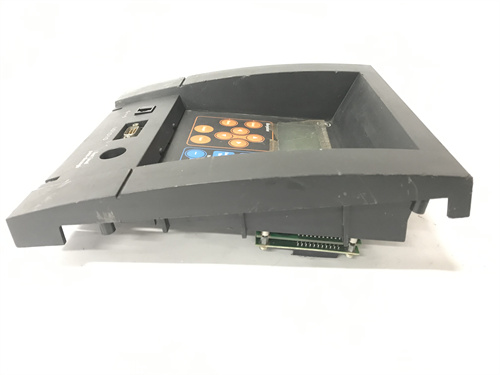

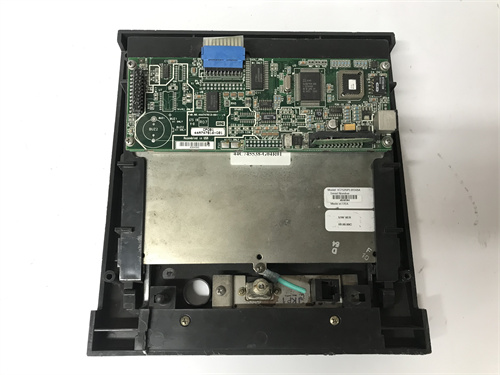

GE IC752SPL013-BA EX2100产品详情
一、产品概述
GE IC752SPL013-BA EX2100是通用电气（GE）推出的一款高性能工业控制模块，属于GE Speedtronic控制系统的一部分，主要用于工业自动化、过程控制及励磁控制领域。该模块结合了先进的信号处理能力和工业级设计，能够满足复杂工业环境下的高可靠性需求。
二、核心功能
多信号采集与处理
支持多种信号输入，包括温度（RTD、热电偶）、电流（4-20mA）、电压（0-1VDC、0-5VDC）等，可实时监测流量、压力、湿度、液位等过程参数。
具备高精度信号调理能力，适用于工业传感器数据的准确采集。
励磁控制接口
作为励磁控制接口面板的核心组件，支持与GE EX2100系列励磁控制系统的无缝集成，用于发电机励磁电流调节、灭磁操作等关键控制功能。
提供稳定的伺服输出和位置传感器接口，确保励磁系统的精准控制。
数字I/O与通信功能
集成数字输入输出功能，支持现场设备的逻辑控制与状态反馈。
支持多种通信协议（如Modbus、Profibus等），可与上位系统或其他设备进行数据交互，实现远程监控与诊断。
安全与可靠性设计
配备TPM 2.0安全功能，提供硬件级安全防护，防止非法访问和数据篡改。
采用工业级元器件，支持宽温工作范围（-40°C至90°C），适应恶劣工业环境。
具备过载保护、短路保护等机制，确保系统长期稳定运行。
三、技术参数
输入信号类型：支持RTD、热电偶（J、K、R、S、T、B、E、N）、4-20mA、0-1VDC、0-5VDC等。
输出类型：数字输出、模拟输出、伺服输出。
工作电压：24V DC（典型工业控制电压）。
通信接口：支持RS485、Modbus RTU、CAN等协议。
安装方式：支持DIN导轨安装，便于现场部署。
防护等级：符合IP20标准，适用于室内安装。
重量：约2-3.5kg
尺寸：紧凑型设计，节省机柜空间。
GE IC752SPL013-BA EX2100 Product Details
1.Product Overview
GE IC752SPL013-BA EX2100 is a high-performance industrial control module launched by General Electric(GE).It is part of the GE Speedtronic control system and is mainly used in industrial automation,process control and excitation control.The module combines advanced signal processing capabilities and industrial-grade design to meet the high reliability requirements in complex industrial environments.
2.Core Functions
Multi-signal acquisition and processing
Supports multiple signal inputs,including temperature(RTD,thermocouple),current(4-20mA),voltage(0-1VDC,0-5VDC),etc.,and can monitor process parameters such as flow,pressure,humidity,and liquid level in real time.
With high-precision signal conditioning capabilities,it is suitable for accurate acquisition of industrial sensor data.
Excitation Control Interface
As the core component of the excitation control interface panel,it supports seamless integration with the GE EX2100 series excitation control system,and is used for key control functions such as generator excitation current regulation and demagnetization operation.
Provides stable servo output and position sensor interface to ensure precise control of the excitation system.
Digital I/O and communication function
Integrated digital input and output functions to support logical control and status feedback of field equipment.
Supports multiple communication protocols(such as Modbus,Profibus,etc.),can interact with the host system or other devices for data,and realize remote monitoring and diagnosis.
Safety and reliability design
Equipped with TPM 2.0 security function,it provides hardware-level security protection to prevent illegal access and data tampering.
Adopts industrial-grade components,supports wide temperature operating range(-40°C to 90°C),and adapts to harsh industrial environments.
With overload protection,short-circuit protection and other mechanisms to ensure long-term stable operation of the system.
III.Technical parameters
Input signal type:supports RTD,thermocouple(J,K,R,S,T,B,E,N),4-20mA,0-1VDC,0-5VDC,etc.
Output type:digital output,analog output,servo output.
Working voltage:24V DC(typical industrial control voltage).
Communication interface:supports RS485,Modbus RTU,CAN and other protocols.
Installation method:supports DIN rail installation,which is convenient for on-site deployment.
Protection level:meets IP20 standard and is suitable for indoor installation.
Weight:about 2-3.5kg
Size:compact design,saving cabinet space.
