一、产品概述

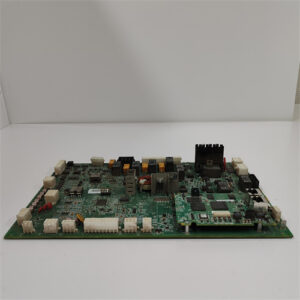

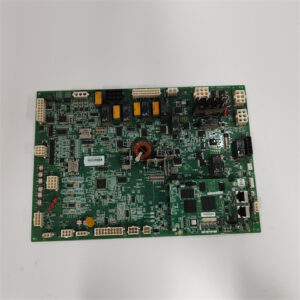

GE IS200AEPGG1AAA是通用电气（GE）为工业自动化系统设计的继电器输出模块，属于Mark VI系列的核心组件，广泛应用于燃气轮机控制、电力、制造、化工等领域。该模块以高可靠性、模块化设计和多协议兼容性为特点，支持复杂控制逻辑与实时数据交互。
二、核心功能与特点
继电器控制功能
提供继电器输出，可控制电机启停、阀门开关、报警触发等电气负载，适用于燃气轮机、生产线设备、泵阀等场景。
大容量存储与编程能力
内存配置：
10 MB电池支持的用户内存+10 MB非易失性闪存，支持数据持久化存储。
通过引用表%W访问大容量内存。
编程语言：支持梯形图、C、结构化文本及功能块图编程，灵活适配不同控制需求。
多接口与通信能力
串行接口：
3个隔离串行端口：1个RS-485、1个RS-232、1个RS-232以太网站管理器端口。
以太网接口：
支持以太网全局数据（EGD）交换、SRTP协议通信，以及Modbus/TCP服务器/客户端功能。
网络监控：支持通过Web服务器（最多16台）和FTP连接进行远程数据监控。
模块化与扩展性
兼容GE Mark VI系列及其他VME模块（如90-70系列离散/模拟I/O模块），支持系统灵活扩展。
最多支持512个程序块，单块最大容量128 KB。
诊断与维护
内置故障诊断功能，可实时监测模块运行状态并报告异常。
支持电池供电的日历时钟和固件在线升级，提升系统稳定性。
1.Product Overview
GE IS200AEPGG1AAA is a relay output module designed by General Electric(GE)for industrial automation systems.It belongs to the core component of the Mark VI series and is widely used in gas turbine control,power,manufacturing,chemical and other fields.The module is characterized by high reliability,modular design and multi-protocol compatibility,and supports complex control logic and real-time data interaction.
2.Core functions and features
Relay control function
It provides relay output,which can control electrical loads such as motor start and stop,valve switch,alarm trigger,etc.,and is suitable for gas turbines,production line equipment,pumps and valves and other scenarios.
Large capacity storage and programming capabilities
Memory configuration:
10 MB battery-supported user memory+10 MB nonvolatile flash memory,supporting data persistent storage.
Access large memory by reference table%W.
Programming language:supports ladder diagram,C,structured text and functional block diagram programming,and flexibly adapts to different control needs.
Multi-interface and communication capabilities
Serial interface:
3 isolated serial ports:1 RS-485,1 RS-232,1 RS-232 Ethernet Website Manager port.
Ethernet interface:
Supports Ethernet global data(EGD)switching,SRTP protocol communication,and Modbus/TCP server/client functions.
Network Monitoring:Supports remote data monitoring through web servers(up to 16 units)and FTP connections.
Modularity and scalability
Compatible with GE Mark VI series and other VME modules(such as 90-70 series discrete/analog I/O modules),it supports flexible system expansion.
Supports up to 512 program blocks,with a maximum capacity of 128 KB per block.
Diagnosis and maintenance
Built-in troubleshooting function can monitor the module’s operating status and report abnormalities in real time.
Supports online upgrade of battery-powered calendar clock and firmware to improve system stability.
