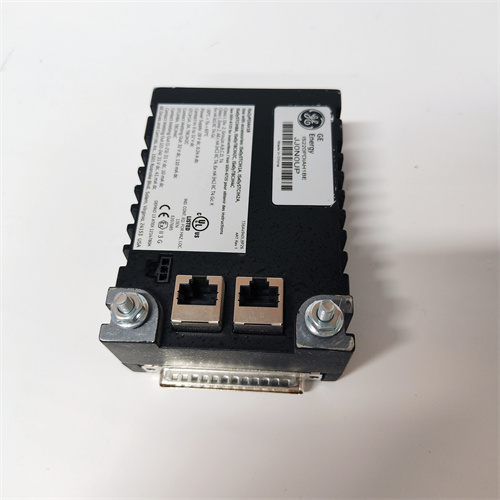

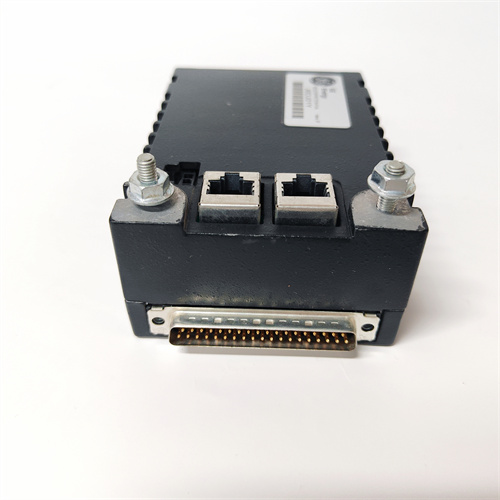

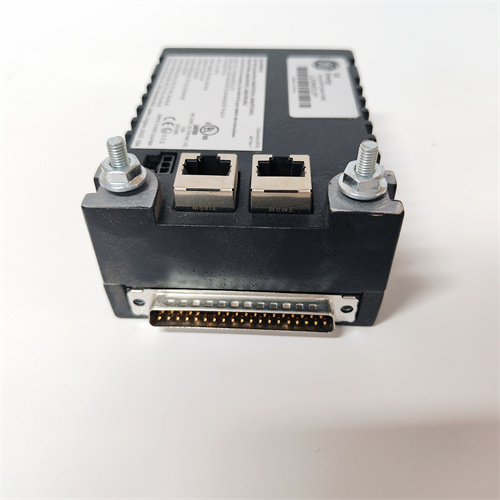

GE IS200HSLAH2ADE产品详情
一、基本信息
品牌：GE（通用电气，工业自动化与能源领域领导者，现属GE Vernova业务板块）
型号：IS200HSLAH2ADE
类型：高速模拟量输入（HSI）模块（High-Speed Analog Input Module）
用途：作为GE Mark VIe或Mark VI控制系统的核心组件，用于燃气轮机、蒸汽轮机、发电机组等能源设备的高精度数据采集与实时控制，适用于电力、石油天然气、船舶推进等场景。
二、技术规格
核心功能
模拟量输入通道：
支持8通道高速模拟量输入，兼容电压（±10V）、电流（4-20mA）、热电阻（RTD，PT100/PT1000）或热电偶（TC，J/K/T型）信号。
采样率：最高10kHz/通道（典型值），适用于振动、压力脉动等高频信号监测。
分辨率：16位（AD转换），精度±0.1%（满量程）。
信号处理能力：
内置抗混叠滤波器（截止频率可调），抑制高频噪声干扰。
支持通道间隔离（耐压≥1.5kV），避免信号串扰。
通信接口：
通过GE专用的HSR（High-Speed Ring）或Tri-Module Redundant（TMR）总线与控制器通信，传输延迟<1ms。
兼容GE的IONet（基于光纤的冗余环网），支持双环冗余配置。
硬件参数
接口类型：
现场信号连接：采用可拆卸端子块（兼容Phoenix Contact或GE专用端子），支持带电插拔。
通信接口：双冗余光纤接口（ST/LC连接器），传输速率100Mbps。
电源要求：
模块供电：24VDC（±10%），典型功耗<15W。
信号供电：独立电源或共享模块电源（依型号配置）。
防护等级：IP20（控制柜内安装），模块表面涂层符合NEMA 4X标准（防腐蚀）。
性能指标
响应时间：
模拟量输入：采样周期<100μs（8通道并行采集），支持实时触发（如事件记录）。
故障检测：通道开路/短路检测时间<5ms，支持自诊断与报警输出。
环境适应性：
工作温度：-20℃至+60℃（标准版），-40℃至+70℃（宽温版可选）。
抗振动：符合IEC 60068-2-6标准（10-500Hz，5G）。
EMC兼容性：满足IEEE 1613（变电站环境）与IEC 61000-6-2（工业级辐射）标准。
三、应用领域
电力行业
燃气轮机控制：采集轴承振动、温度、压力等信号，支持GE的Speedtronic Mark VIe控制系统实现转速与负荷闭环控制。
发电机监测：通过RTD输入监测定子绕组温度，支持过温保护与寿命预测。
石油天然气
压缩机控制：采集振动与位移信号，实现防喘振保护与性能优化。
海上平台：通过IP67防护罩（需外配）与冗余通信，适应恶劣海洋环境。
船舶推进
柴油发电机组：监测转速、扭矩、排气温度等参数，支持船舶动力系统的自动化控制。
四、产品优势
高精度与实时性
10kHz采样率：可捕捉瞬态信号（如机械振动冲击），适用于故障早期诊断。
亚毫秒级通信延迟：确保控制指令的快速执行，适用于调速、调压等闭环控制。
冗余与可靠性
双环冗余通信：IONet支持光纤双环路，单点故障不影响系统运行。
模块级冗余：支持1oo2（二选一）或2oo3（三选二）表决逻辑，提升系统可用性。
兼容性与扩展性
无缝集成：与GE的HMI（Human Machine Interface）、历史数据库（Historian）协同工作，形成完整控制系统。
模块化设计：单个机架最多可扩展至16个HSI模块，支持混合信号类型（如AI/AO/DI/DO）。
GE IS200HSLAH2ADE Product Details
I.Basic Information
Brand:GE(General Electric,a leader in industrial automation and energy,now part of GE Vernova business unit)
Model:IS200HSLAH2ADE
Type:High-SpeedAnalog Input(HSI)Module
Purpose:As a core component of the GE Mark VIe or Mark VI control system,it is used for high-precision data acquisition and real-time control of energy equipment such as gas turbines,steam turbines,and generator sets,and is suitable for power,oil and gas,and ship propulsion.
II.Technical Specifications
Core Functions
Analog Input Channels:
Supports 8-channel high-speed analog input,compatible with voltage(±10V),current(4-20mA),thermal resistor(RTD,PT100/PT1000)or thermocouple(TC,J/K/T type)signals.
Sampling rate:Up to 10kHz/channel(typical value),suitable for high-frequency signal monitoring such as vibration and pressure pulsation.
Resolution:16 bits(AD conversion),accuracy±0.1%(full scale).
Signal processing capability:
Built-in anti-aliasing filter(adjustable cutoff frequency)to suppress high-frequency noise interference.
Supports channel isolation(withstand voltage≥1.5kV)to avoid signal crosstalk.
Communication interface:
Communicate with the controller through GE’s dedicated HSR(High-SpeedRing)or Tri-Module Redundant(TMR)bus,with a transmission delay of<1ms.
Compatible with GE’s IONet(fiber-based redundant ring network),supporting dual-ring redundant configuration.
Hardware parameters
Interface type:
Field signal connection:using removable terminal blocks(compatible with Phoenix Contact or GE dedicated terminals),supporting live plugging and unplugging.
Communication interface:dual redundant fiber optic interface(ST/LC connector),transmission rate 100Mbps.
Power requirements:
Module power supply:24VDC(±10%),typical power consumption<15W.
Signal power supply:independent power supply or shared module power supply(configured by model).
Protection level:IP20(installed in the control cabinet),the module surface coating complies with the NEMA 4X standard(anti-corrosion).
Performance indicators
Response time:
Analog input:sampling period<100μs(8-channel parallel acquisition),support real-time triggering(such as event recording).
Fault detection:channel open circuit/short circuit detection time<5ms,support self-diagnosis and alarm output.
Environmental adaptability:
Operating temperature:-20℃to+60℃(standard version),-40℃to+70℃(wide temperature version optional).
Vibration resistance:complies with IEC 60068-2-6 standard(10-500Hz,5G).
EMC compatibility:meets IEEE 1613(substation environment)and IEC 61000-6-2(industrial radiation)standards.
III.Application areas
Power industry
Gas turbine control:collect bearing vibration,temperature,pressure and other signals,support GE’s Speedtronic Mark VIe control system to achieve speed and load closed-loop control.
Generator monitoring:Monitor stator winding temperature through RTD input,support over-temperature protection and life prediction.
Oil and gas
Compressor control:Collect vibration and displacement signals to achieve anti-surge protection and performance optimization.
Offshore platform:Adapt to harsh marine environment through IP67 protective cover(external configuration required)and redundant communication.
Ship propulsion
Diesel generator set:Monitor speed,torque,exhaust temperature and other parameters to support automatic control of ship power system.
IV.Product advantages
High precision and real-time performance
10kHz sampling rate:Capture transient signals(such as mechanical vibration shock),suitable for early fault diagnosis.
Sub-millisecond communication delay:Ensure the rapid execution of control instructions,suitable for closed-loop control such as speed regulation and voltage regulation.
Redundancy and reliability
Dual-loop redundant communication:IONet supports optical fiber dual loop,and single point failure does not affect system operation.
Module-level redundancy:Support 1oo2(two-choose-one)or 2oo3(three-choose-two)voting logic to improve system availability.
Compatibility and scalability
Seamless integration:Works with GE’s HMI(Human Machine Interface)and historical database(Historian)to form a complete control system.
Modular design:A single rack can be expanded to up to 16 HSI modules,supporting mixed signal types(such as AI/AO/DI/DO).
