描述

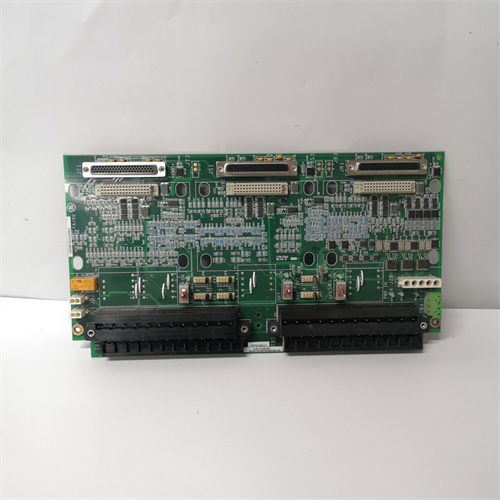

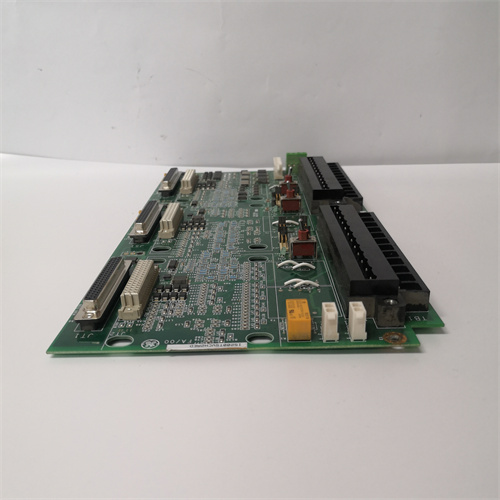

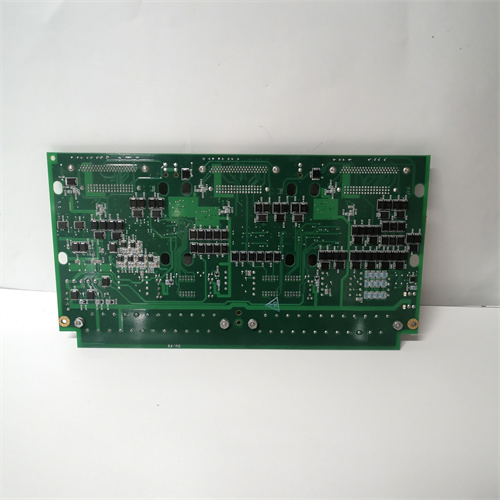

GE IS200TSVCH2AED MRP246517是GE公司制造的一款电路板组件，属于Mark VI系统的一部分，在工业控制和监控系统中发挥着重要作用，以下为具体详情：
核心功能
高性能I/O处理：该模块提供高性能的I/O处理能力，可实现快速的数据传入和传出，尤其是在FPGA（现场可编程门阵列）中。
灵活的信号连接：模块包含大量DDR2 DRAM和双端口SRAM，用于向PCI总线进行高速DMA传输。高吞吐量PCI-X接口确保有足够的带宽来快速移动数据。
丰富的接口扩展：提供了各种插入式I/O扩展模块，为连接各种模拟和数字I/O信号类型提供了极大的灵活性。能够容纳最多512个I/O通道，包括离散输入、离散固态输出、离散继电器输出、模拟输入和模拟输出。还具备高速计数器输入以及增量编码器的接口能力。
远程监控和控制：具备远程监控和控制功能，使用户能够通过网络或其他远程手段监视和管理电源。
技术参数
电气参数：输入电压和输出电压均为24VDC。最大输入电流为5mA，最大输出电流为500mA。
兼容性：该模块是GE工业系统中用于控制和监控目的的组件，兼容GE Industrial Systems。
扩展总线处理：支持扩展总线处理模块间通信。
应用场景
工业自动化控制：作为Mark VI系统的核心组件，用于实时监测与控制工业过程中的关键参数，如温度、压力等。
复杂信号处理：适用于需要复杂信号处理和设备通信的自动化系统，如能源管理、智能制造等领域。
GE IS200TSVCH2AED MRP246517 is a circuit board assembly manufactured by GE.It is part of the Mark VI system and plays an important role in industrial control and monitoring systems.The following are specific details:
Core functions
High-performance I/O processing:The module provides high-performance I/O processing capabilities,which can achieve fast data transfer in and out,especially in FPGA(field programmable gate array).
Flexible signal connection:The module contains a large amount of DDR2 DRAM and dual-port SRAM for high-speed DMA transfer to the PCI bus.The high-throughput PCI-X interface ensures that there is enough bandwidth to move data quickly.
Rich interface expansion:A variety of plug-in I/O expansion modules are provided,providing great flexibility for connecting various analog and digital I/O signal types.It can accommodate up to 512 I/O channels,including discrete inputs,discrete solid-state outputs,discrete relay outputs,analog inputs and analog outputs.It also has the interface capabilities of high-speed counter inputs and incremental encoders.
Remote monitoring and control:It has remote monitoring and control functions,allowing users to monitor and manage power supplies through a network or other remote means.
Technical Parameters
Electrical Parameters:Input voltage and output voltage are both 24VDC.Maximum input current is 5mA,and maximum output current is 500mA.
Compatibility:This module is a component used for control and monitoring purposes in GE Industrial Systems and is compatible with GE Industrial Systems.
Extension bus processing:Supports communication between expansion bus processing modules.
Application scenarios
Industrial automation control:As the core component of the Mark VI system,it is used to monitor and control key parameters in industrial processes in real time,such as temperature,pressure,etc.
Complex signal processing:Applicable to automation systems that require complex signal processing and device communication,such as energy management,intelligent manufacturing and other fields.
