描述
一、核心功能与定位
产品类型

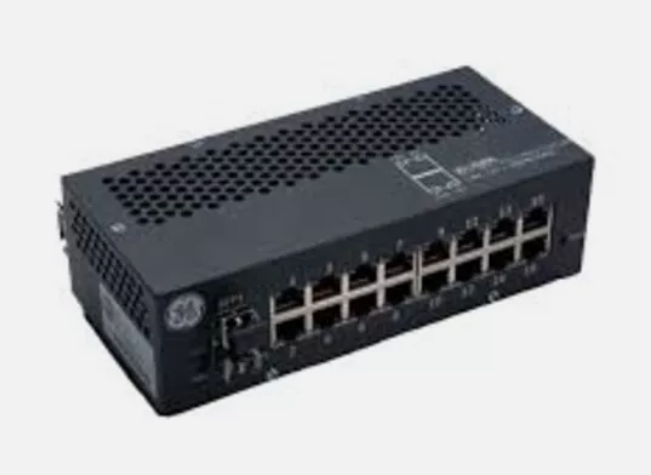

功能：非托管工业以太网/IONet交换机，专为GE Mark VIe Speedtronic系统设计，适用于工业自动化、涡轮机控制、能源管理等场景。
兼容性：支持802.3、802.3u、802.3x以太网协议，兼容Mark VIeS和Mark VIe安全控制系统。
核心特性
端口配置：
光纤端口：2个100Base-FX多模光纤端口（LC型连接）。
铜缆端口：16个10/100Base-TX RJ45端口（支持自动协商）。
连接可靠性：RJ45连接器支持200次插入/拔出周期，适应高应力工业环境。
安装方式：支持DIN导轨安装（平行或垂直）或面板安装。
二、技术参数
硬件规格
重量：2磅5盎司（约1.13 kg）。
危险场所能力：符合2类2区/1类2分区/ATEX安全标准。
缓存与地址：
缓冲区：≥256 KB。
MAC地址：4K。
性能参数
传输速率：
光纤端口：100 Mbps。
铜缆端口：10/100 Mbps自动协商。
浪涌电流控制：软启动设计，限制浪涌电流至正常工作电流的200%以下。
数据包缓冲：每个端口支持缓冲1个数据包，多流场景下优先处理单一流传输。
环境适应性
工作温度：工业级宽温设计（具体范围需参考手册）。
三、应用场景
工业自动化
连接传感器、PLC、机器人等设备，支持涡轮机控制、生产线协调等场景。
能源管理
监控发电站、电力设备及能源分配系统。
交通与物流
智能交通信号控制、仓储物流设备通信。
远程监控
实现工业设备的远程状态监测与控制。
1.Core functions and positioning
Product Type
Function:Unmanaged Industrial Ethernet/IONet switch,specially designed for GE Mark VIe Speedtronic system,suitable for industrial automation,turbine control,energy management and other scenarios.
Compatibility:Supports 802.3,802.3u,802.3x Ethernet protocols,compatible with Mark VIeS and Mark VIe security control systems.
Core features
Port configuration:
Fiber Optic Ports:2 100Base-FX multimode fiber ports(LC type connection).
Copper cable ports:16 10/100Base-TX RJ45 ports(supports automatic negotiation).
Connection reliability:RJ45 connector supports 200 insertion/unplug cycles to adapt to high stress industrial environments.
Installation method:Supports DIN rail installation(parallel or vertical)or panel installation.
2.Technical parameters
Hardware specifications
Weight:2 lbs 5 oz(approximately 1.13 kg).
Hazardous location capacity:Comply with the safety standards of Category 2 Zone 2/Category 1 Zone 2/ATEX.
Cache and address:
Buffer:≥256 KB.
MAC address:4K.
Performance parameters
Transmission rate:
Fiber Optic Port:100 Mbps.
Copper cable port:10/100 Mbps automatic negotiation.
Inrush current control:Soft start design limits inrush current to less than 200%of the normal operating current.
Packet buffering:Each port supports buffering 1 packet,and single-stream transmission is preferred in multi-stream scenarios.
Environmental adaptability
Working temperature:industrial-grade wide temperature design(refer to the manual for specific range).
Protection level:Not clearly marked,but adapted to industrial site environment.
III.Application scenarios
Industrial automation
Connect sensors,PLCs,robots and other equipment to support turbine control,production line coordination and other scenarios.
Energy Management
Monitor power stations,power equipment and energy distribution systems.
Transportation and Logistics
Intelligent traffic signal control,warehousing and logistics equipment communication.
Remote monitoring
Realize remote status monitoring and control of industrial equipment.
