描述
产品简要说明

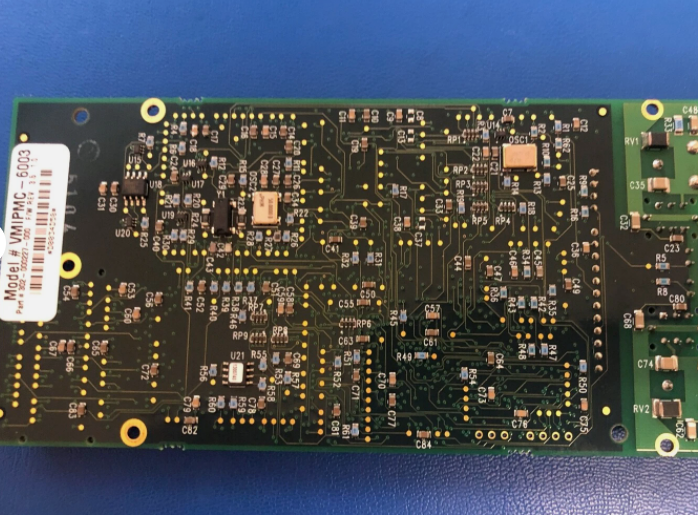

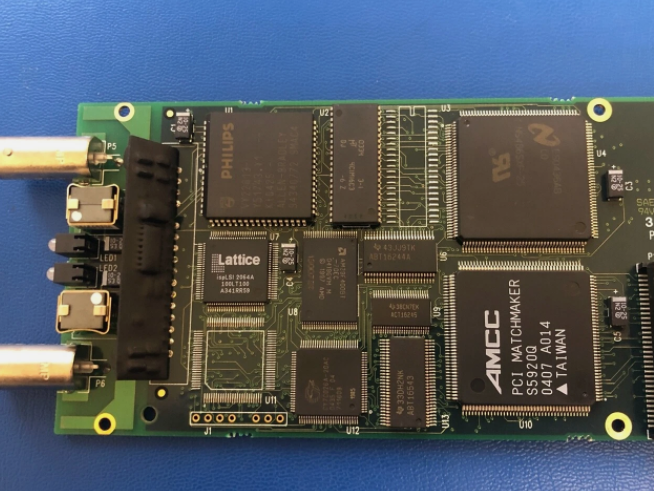

GE VMIC VMIPMC-6003 302-000227-000是通用电气（GE）VMIC产品线中一款基于PMC（PCI Mezzanine Card）接口的工业级控制模块，专为高可靠性实时控制系统设计。其核心特性包括：
PMC接口兼容性：支持VME64x总线扩展，符合IEEE 1386标准
多协议通信：集成千兆以太网、CAN总线及RS-422/485串口
工业级环境适应性：-40℃至+85℃宽温工作，抗振动/冲击符合MIL-STD-810标准
冗余设计：双电源输入+看门狗定时器，故障自恢复时间≤5ms
产品详细说明
1.硬件架构与核心功能
PMC接口扩展能力
总线兼容性：通过VME64x总线实现与主控板卡的高速数据交互，支持A16/A24寻址模式
扩展接口：
2路千兆以太网（支持冗余传输）
4路RS-422/485串口（隔离电压1500V）
2路CAN总线（支持CANopen协议）
实时控制与数据处理
处理器配置：PowerPC 440EP核心，主频667MHz，支持浮点运算加速
内存容量：512MB DDR2 SDRAM（可扩展至2GB）
数据同步技术：集成反射内存接口，节点间延迟≤2.1μs
环境适应性设计
温度管理：支持-40℃至+85℃工作，内置温度传感器与动态散热控制
抗干扰能力：
电源输入抗瞬态干扰≥100V/μs
通信接口符合EMC Level 4标准
产品概述:GE VMIC VMIPMC-6003 302-000227-000
作为GE VMICPMC系列的核心产品，其核心价值在于高集成度与多场景适配性：
技术价值：
在核电站安全监控系统中，实现传感器数据的高速采集与实时处理
在高铁信号控制系统中，保障多节点数据同步的可靠性
行业适配：
工业自动化：分布式控制系统的通信节点
国防军工：导弹制导系统、舰载电子设备
能源电力：智能变电站保护装置、风电场SCADA系统
Product brief description
GE VMIC VMIPMC-6003 302-000227-000 is an industrial-grade control module based on the PMC(PCI Mezzanine Card)interface in the GE VMIC product line,designed for high-reliability real-time control systems.Its core features include:
PMC interface compatibility:Supports VME64x bus extension,complies with IEEE 1386 standard
Multi-protocol communication:Integrated Gigabit Ethernet,CAN bus and RS-422/485 serial port
Industrial grade environmental adaptability:wide temperature operation from-40℃to+85℃,vibration/impact resistance complies with MIL-STD-810 standard
Redundant design:dual power input+watchdog timer,fault self-recovery time≤5ms
Product details
1.Hardware architecture and core functions
PMC interface expansion capability
Bus compatibility:High-speed data interaction with the main control board through the VME64x bus,supporting A16/A24 addressing mode
Extended interface:
2-channel Gigabit Ethernet(supports redundant transmission)
4-channel RS-422/485 serial port(isolation voltage 1500V)
2-channel CAN bus(supports CANopen protocol)
Real-time control and data processing
Processor configuration:PowerPC 440EP core,main frequency 667MHz,support floating point operation acceleration
Memory capacity:512MB DDR2 SDRAM(scalable to 2GB)
Data synchronization technology:integrated reflective memory interface,inter-node delay≤2.1μs
Environmental adaptability design
Temperature management:Supports operation of-40℃to+85℃,built-in temperature sensor and dynamic heat dissipation control
Anti-interference ability:
Power supply input anti-transient interference≥100V/μs
Communication interface complies with EMC Level 4 standards
Product Overview:GE VMIC VMIPMC-6003 302-000227-000
As the core product of GE VMICPMC series,its core value lies in high integration and multi-scenario adaptability:
Technical value:
In the nuclear power plant safety monitoring system,high-speed collection and real-time processing of sensor data are realized
In the high-speed rail signal control system,ensure the reliability of multi-node data synchronization
Industry adaptation:
Industrial automation:Communication nodes of distributed control systems
National Defense and Military Industry:Missile Guide System,Ship-based Electronic Equipment
Energy and electricity:Intelligent substation protection device,wind farm SCADA system
