描述
MCGG22D1CD0753C0的主要特性和功能
让我们来详细了解一下该型号及其可能的特性：
MCGG系列：这表明它属于MCGG系列过流和接地故障继电器。这些继电器专为变压器、发电机和高压馈线电路的后备保护而设计。
MCGG22：通常表示带有瞬时元件的单相过流继电器。虽然完整的MCGG系列包括两相、三相以及带接地故障的组合，但“22”指的是基本的单相过流功能。
D1CD0753C0：这是一个详细的配置代码，指定了以下各个方面：
输入电流额定值：基于类似型号（例如MCGG22D1CD0753C），“0753”可能指的是可配置的额定电流(In)。许多MCGG继电器提供1A或5A额定电流版本。“0753”通常表示特定设置或范围。某些型号标有“1A，50/60Hz”。
辅助电压：“CD0753C0”中的“C”通常表示辅助电源电压。对于此型号，常见列表显示48/125 VDC（直流电压）辅助电压。
时间特性：MCGG继电器提供四种反时限曲线（例如，符合BS142和IEC60255的标准反时限、非常反时限、极端反时限、长反时限）和三种定时限范围。这些通常通过前面板上的开关进行选择。
设定范围：电流设定范围宽（例如，0.05 x In至2.4 x In）和时间倍数设定范围宽（0.05至1.0）。
瞬时元件：如“MCGG22”所示，它包含一个瞬时高位元件，如果不需要，可以禁用。
输出触点：提供单独的输出触点，用于相位故障和接地故障（如适用）的延时和瞬时操作。这些触点可用于断路器跳闸。
指示灯：配备电源、延时操作和瞬时操作的LED指示灯，方便测试和故障识别。
复位比和时间：以高复位比和快速复位时间而闻名。
低交流负载：最大限度地减少电流互感器的负载。
结构：采用固态技术，每个测量板通常使用微型计算机作为基本电路元件。这些继电器通常采用插入式模块，封装在Midos外壳（4、6或8号）中。
非易失性存储器：用于延时和瞬时LED指示灯。
应用
MCGG系列继电器（包括MCGG22D1CD0753C0）对于保护以下领域的电力资产至关重要：
变电站：保护架空线路和电缆。
工业厂房：保护电机、变压器和配电馈线。
发电：为发电机提供后备保护。
这些继电器设计可靠、准确，可确保及时隔离故障，防止设备损坏并保持系统稳定。
Key Features and Functionality of the MCGG22D1CD0753C0
Let’s break down the model number and its likely features:
MCGG Series:This indicates it’s a part of the MCGG family of overcurrent and earth fault relays.These relays are designed for backup protection of transformers,generators,and HV(High Voltage)feeder circuits.
MCGG22:This typically denotes a single-phase overcurrent relay with an instantaneous element.While the full MCGG series includes two-phase,three-phase,and combinations with earth fault,the”22″points to a basic,single-phase overcurrent function.
D1CD0753C0:This is a detailed configuration code that specifies various aspects like:
Input Current Rating:Based on similar models(e.g.,MCGG22D1CD0753C),the”0753″likely refers to a rated current(In)that is configurable.Many MCGG relays come in 1A or 5A rated current versions.The”0753″often points to specific settings or a range.Some variants are listed with”1A,50/60Hz”.
Auxiliary Voltage:The”C”in”CD0753C0″often indicates the auxiliary power supply voltage.For this model,common listings show 48/125 VDC(Volts DC)auxiliary voltage.
Time Characteristics:MCGG relays offer a choice of four inverse time curves(e.g.,Standard Inverse,Very Inverse,Extremely Inverse,Long Time Inverse per BS142 and IEC60255)and three definite time ranges.These are typically selected via switches on the front panel.
Setting Range:Wide setting range for current(e.g.,0.05 x In to 2.4 x In)and time multiplier(0.05 to 1.0).
Instantaneous Element:As indicated by”MCGG22,”it includes an instantaneous high-set element,which can be disabled if not required.
Output Contacts:Separate output contacts are provided for time-delayed and instantaneous operations for both phase and earth faults(if applicable).These contacts are capable of circuit breaker tripping.

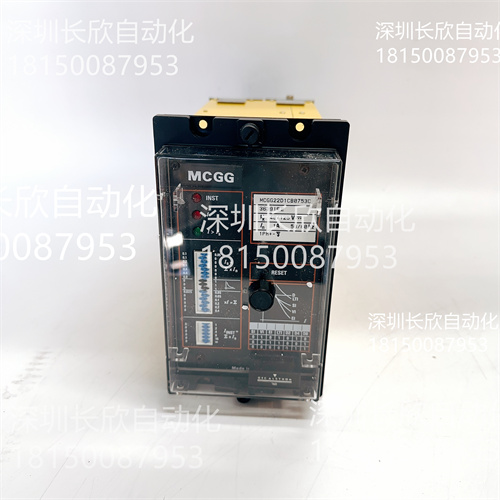

Indicators:Features LED indicators for power,time-delayed operations,and instantaneous operations to facilitate testing and fault identification.
Resetting Ratio&Time:Known for high resetting ratios and fast resetting times.
Low AC Burden:Minimizes the load on current transformers.

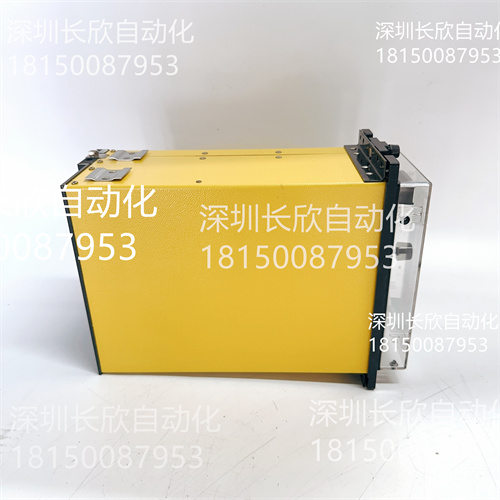

Construction:Solid-state techniques are used,with each measuring board often utilizing a micro-computer as a basic circuit element.These relays typically come in a plug-in module housed in a Midos case(size 4,6,or 8).
Non-volatile Memory:For time-delayed and instantaneous LED indicators.
Applications
The MCGG series relays,including the MCGG22D1CD0753C0,are essential for the protection of electrical assets in:
Substations:Protecting overhead lines and cables.
Industrial Plants:Safeguarding motors,transformers,and distribution feeders.
Power Generation:Providing backup protection for generators.
These relays are designed for reliable and accurate operation,ensuring the timely isolation of faults to prevent damage to equipment and maintain system stability.
